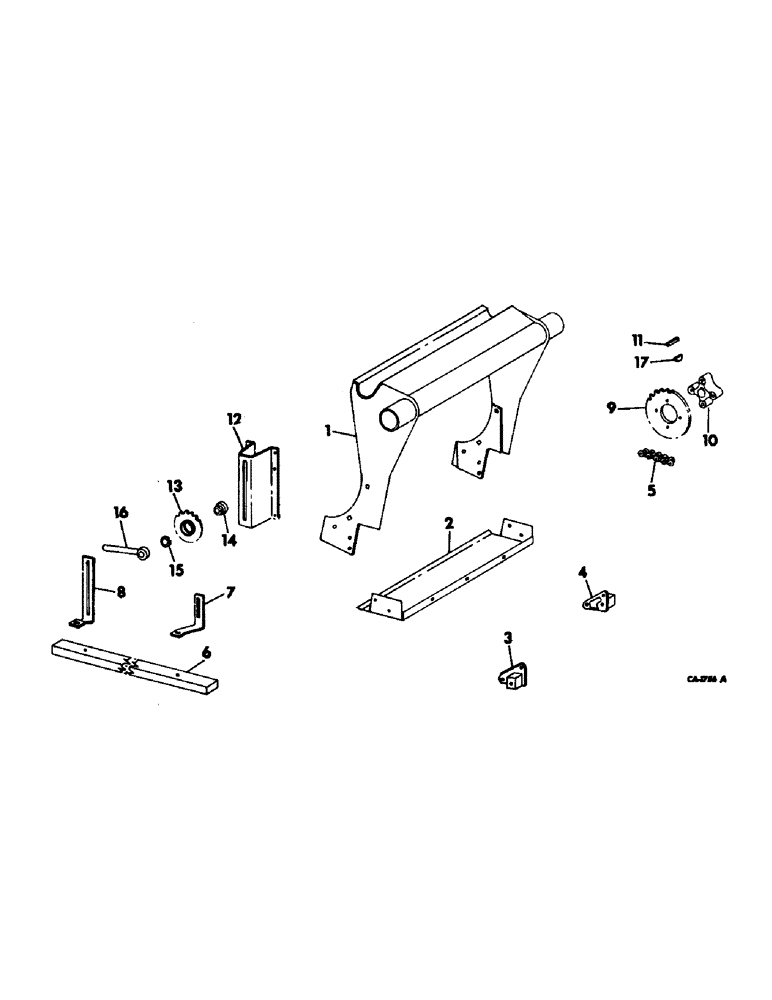

Запчасти Case IH 782 (P-30) - FEEDER ADAPTER & COMPLETING PARTS (58) - ATTACHMENTS/HEADERS

1

173668C1

ADAPTER ASSY, feeder

1шт.

18696R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/2", Gr 2

BOLT, 7/16 x 1-1/2 znd sq-nk crg

2шт.

271501

SOCKET

NUT, 7/16 znd hex

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

2

173671C1

BOTTOM, feeder adapter

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

3

165486C1

SUPPORT

feeder adapter lower LH

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2 x 1-1/2 znd hex-hd cap

2шт.

433156

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

SCREW, 1/2 x 4-1/2 znd hex-hd cap

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

4

165487C1

SUPPORT

feeder adapter lower RH

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2 x 1-1/2 znd hex-hd cap

2шт.

433156

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

SCREW, 1/2 x 4-1/2 znd hex-hd cap

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

5

CHAIN ASSY, main drive, use 205 links from 10-ft roll marked 1793D, 1 offset link 1318D and 1 connecting link 1786D

2шт.

6

164831C1

GUIDE, chain RH

1шт.

18482R1

BOLT,Short NK, 5/16"-18 x 2", G2

5/16 x 2 znd sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

7

172757C1

SUPPORT, chain guide rear

1шт.

20803R1

WASHER

13/32 x 1 x 11 ga

2шт.

8

172756C1

SUPPORT, chain guide front

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

2шт.

9

162228C1

SPROCKET, main drive 32T

1шт.

9

166003C1

SPROCKET, main drive 29T, for 915 combine serial no. 1778 and above

1шт.

10

172565C1

HUB, main drive sprocket

1шт.

10

159837C1

HUB, main drive sprocket, for 195 combine serial no. 1777 and below

1шт.

18782C1

BOLT, 3/8 x 2-1/4 znd hex-hd mach

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

11

240

KEY,Gib, 3/8" Sq x 2 1/2"

3/8 x 2-1/2 sq tapered

1шт.

12

160949C1

SUPPORT, main drive chain tightener

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

13

632125R1

SPROCKET, main drive chain tightener 20T

1шт.

14

580095R91

BALL BEARING

BEARING ASSY, tightener sprocket

1шт.

22861R1

BOLT, 7/8 x 3 C-Z sq-nk crg

1шт.

NLS

NO LONGER SERVICED

7/8"

1шт.

20703R1

WASHER

29/32 x 1-3/4 x 16 ga C-Z

1шт.

21220R1

WASHER

29/32 x 1-1/4 x 11 ga C-Z

1шт.

21214R1

WASHER

1-5/32 x 2 x 11 ga C-Z

6шт.

15

555602R1

RING

tightener sprocket brg snap

1шт.

16

167475C1

RETAINER, tightener

1шт.

17

27958A

KEY

3/8 x 2-1/8 Woodruff

1шт.
