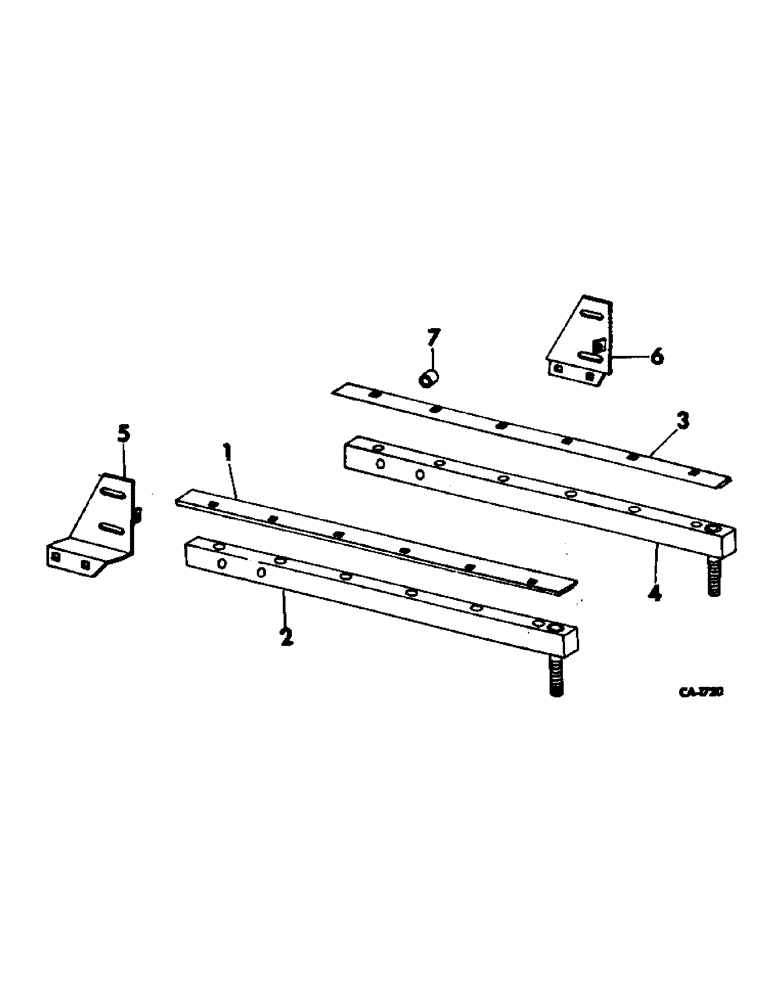

Запчасти Case IH 782 (P-29) - WEED KNIFE ATTACHMENT (58) - ATTACHMENTS/HEADERS

1

162974C1

KNIFE, weed rear

8шт.

18479R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 2

BOLT, 3/8 x 2 C-Z sq-nk crg

40шт.

18781

BOLT, 3/8 x 2 znd hex-hd mach

8шт.

120377

NUT,3/8" - 16, Gr 5

48шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

48шт.

2

162970C91

TUBE ASSY, weed knife retainer

8шт.

21626R1

LOCK NUT,3/4"-16

NUT, 3/4-16 znp ny-lock insert

8шт.

219758

JAM NUT,Jam, 3/4"-10, G5

3/4-16 C-Z hex jam

8шт.

467750R1

WASHER

25/32 x 1-1/2 x 11 ga C-Z

16шт.

3

162974C1

KNIFE, weed rear

8шт.

18479R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 2

BOLT, 3/8 x 2 C-Z sq-nk crg

40шт.

18781R1

BOLT,Hex, 3/8"-16 x 2", G2

3/8 x 2 C-Z hex-hd mach

8шт.

120377

NUT,3/8" - 16, Gr 5

48шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

48шт.

4

162970C91

TUBE ASSY, weed knife retainer

8шт.

21626R1

LOCK NUT,3/4"-16

NUT, 3/4-16 znp ny-lock insert

8шт.

219758

JAM NUT,Jam, 3/4"-10, G5

3/4-16 C-Z hex jam

8шт.

467750R1

WASHER

25/32 x 1-1/2 x 11 ga C-Z

16шт.

5

162975C91

BRACKET ASSY, weed knife front LH, serial no. 512 and below

8шт.

5

174010C1

SUPPORT ASSY, weed knife front LH, serial no. 513 and above

8шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

8шт.

18695R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2

BOLT, 7/16 x 1-1/4 znd sq-nk crg

16шт.

120377

NUT,3/8" - 16, Gr 5

16шт.

NLS

NO LONGER SERVICED

NUT, 7/16 znd hex

16шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

8шт.

20248R1

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 8

SCREW, 3/8 x 2-1/4 hex-hd cap

16шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

16шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

16шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

16шт.

6

162976C91

BRACKET ASSY, weed knife front RH, serial no. 512 and below

8шт.

6

174011C1

SUPPORT ASSY, weed knife front RH, serial no. 513 and above

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

8шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 hex-hd mach

16шт.

120377

NUT,3/8" - 16, Gr 5

16шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

24шт.

20248R1

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 8

SCREW, 3/8 x 2-1/4 hex-hd cap

16шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

32шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

16шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

16шт.

7

556587R1

SPACER

weed knife front bracket, serial no. 512 and below

32шт.
