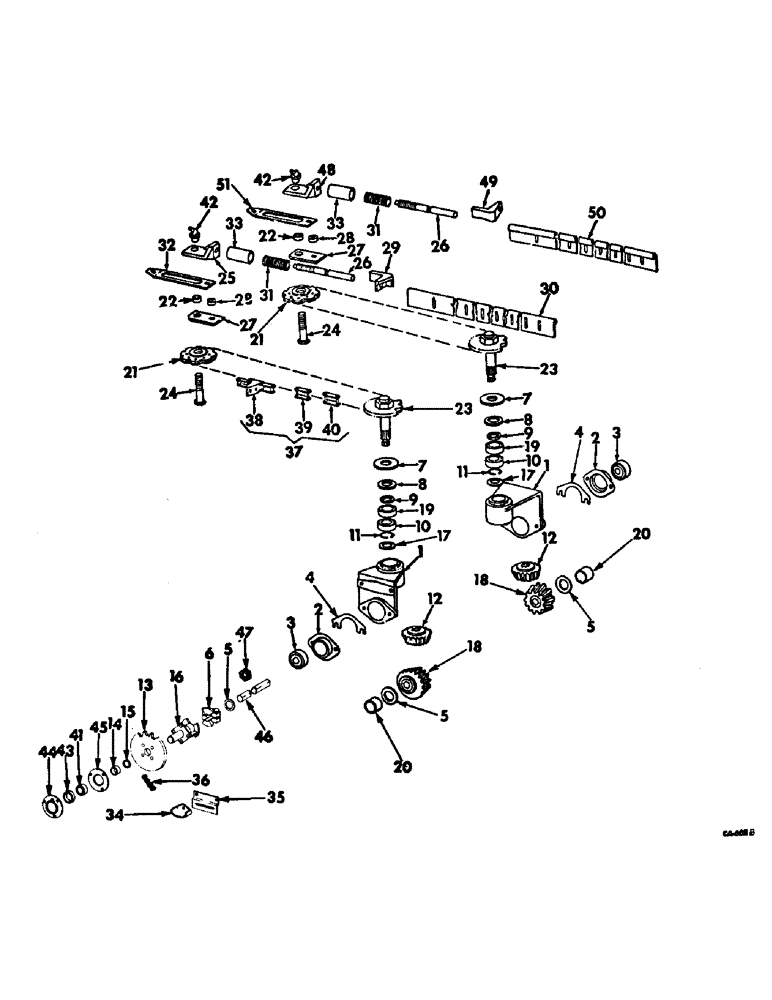

Запчасти Case IH 782 (P-24) - GATHERER AND GATHERER DRIVE (58) - ATTACHMENTS/HEADERS

1

156823C2

HOUSING, gatherer drive inner brg

16шт.

180145

BOLT,Hex, 7/16" - 14 x 1", Gr 5

SCREW, 7/16 x 1 znd hex-hd cap

32шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

32шт.

2

156836C1

HOUSING, gatherer drive outer brg

16шт.

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

7/16 x 1-1/4 C-Z hex-hd cap

32шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

32шт.

3

156816C91

BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W

BEARING ASSY, gatherer drive outer

16шт.

4

156837C1

WASHER, gatherer drive bevel gear

32шт.

5

156834C1

WASHER, gatherer drive shaft clamp

14шт.

6

159809C91

CLAMP ASSY, gatherer drive coupling

14шт.

7

156827C1

WASHER

gatherer drive shaft cup

16шт.

8

156828C1

WASHER

gatherer drive shaft

16шт.

9

156829C1

WASHER

gatherer drive brg

32шт.

10

618210R91

BEARING

ASSY, gatherer drive inner

16шт.

11

641207R1

SNAP RING,2.44", Int, #244

Ring, Snap, , gatherer drive inner brg 2.44", Int, #244

16шт.

12

156831C1

GEAR

gatherer driven bevel

16шт.

13

162904C1

SPROCKET, gatherer driven 24T, standard 353 FPM

2шт.

13

162511C1

SPROCKET, gatherer driven 27T, optional 314 FPM, serial no. 512 and below

2шт.

13

167428C1

SPROCKET, gatherer driven 31T, optional 274 FPM

2шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znp hex-hd mach

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

14

162510C1

SPACER,1 3/8" Tube x 7/8"

gatherer driven sprocket

2шт.

15

156394C1

WASHER, gatherer driven sprocket spacer

6шт.

16

163259C91

COUPLING ASSY, gatherer drive outer

2шт.

17

156830C1

WASHER

gatherer drive

48шт.

18

156833C1

GEAR, gatherer drive bevel

16шт.

19

618210R91

BEARING

ASSY, gatherer drive, serial no. 512 and below

16шт.

19

171879C1

BEARING ASSY, gatherer drive, serial no. 513 and above

16шт.

20

156835C1

SPACER, gatherer drive

16шт.

21

155915C91

DRIVE SPROCKET

SPROCKET ASSY, gatherer idler

16шт.

22

154984C1

BUSHING

gatherer idler sprocket

16шт.

23

166144C93

SPROCKET ASSY.

SPROCKET ASSY, gatherer chain drive

16шт.

18536R1

LOCK NUT,5/8"-18, G5

NUT, 5/8-18 C-Z nylon insert

16шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga C-Z

16шт.

24

654456R1

BOLT (SPREADER),Hex, 3/4" - 10 x 3 1/4"

BOLT, gatherer idler sprocket

16шт.

280954

NUT,3/4"-10, G5

16шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

16шт.

477243R1

WASHER,25/32" x 2" x .060"

25/32 x 2 x 16 ga C-Z

32шт.

619505R1

WASHER

25/32 x 2 x 11 ga

32шт.

25

168403C1

BRACKET, gatherer idler LH

8шт.

26

162508C1

STUD, gatherer idler adj

16шт.

606546R1

JAM NUT

5/8 C-Z center lock hex.

16шт.

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

16шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga C-Z

32шт.

27

168401C1

BAR, gatherer idler

16шт.

18696R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/2", Gr 2

BOLT, 7/16 x 1-1/2 znd sq-nk crg

16шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 C-Z hex

16шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

16шт.

28

168402C1

BUSHING, gatherer idler

16шт.

29

162500C1

GUIDE, gatherer chain left

8шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

30

166140C1

GUIDE, gath chain hold down left

8шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

56шт.

120376

NUT,5/16"-18, G5

56шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

56шт.

21496R1

WASHER

5/16 znd med lock

56шт.

31

VC682

VALVE SPRING

SPRING, gath. idler sprocket adj., serial no. 511 and below

16шт.

31

303353R1

SPRING

gath. idler sprocket adj., serial no. 512 and above

16шт.

32

168395C1

STRAP, inner gath sprocket wear LH

8шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

33

162509C1

SPACER, gatherer chain spring, serial no. 511 and below

16шт.

33

171834C1

SPACER

gatherer chain spring, serial no. 512 and above

16шт.

34

583620R1

BLOCK

gatherer drive chain tightener

2шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

35

166019C1

BRACKET, gatherer drive chain tightener

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

36

CHAIN ASSY, gatherer drive LH, use 87 links from 10-ft roll marked 611362R91, 1 offset link 612612R91 and 1 connecting link 574532R91

1шт.

36

CHAIN ASSY, gatherer drive RH, use 59 links from 10-ft roll marked 611362R91 and one connecting link 574532R1

1шт.

37

654164R91

CHAIN (AG)

CONVEYOR ASSY, gatherer, includes ref nos. 38, 39 and 40

16шт.

38

935619R91

GATHERING CHAIN

CONVEYOR ASSY, gatherer section

1шт.

39

587371R93

DRAG LINK

LINK, connecting

1шт.

40

450423R1

DRAG LINK

LINK, gatherer chain roller

1шт.

41

939475R91

BEARING

ASSY, gatherer driven shaft

2шт.

42

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING, 1/4-28NS 45 deg lube

16шт.

43

557115R11

COLLAR

COLLAR W/SET SCREW, lkg

2шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16 hex-soc-hd cup-pt

2шт.

44

939460R91

FLANGE

W/LUB FITTING, gatherer driven

2шт.

45

939461R1

FLANGE

gatherer driven brg

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

46

156832C1

ROD, horizontal gatherer drive shaft

8шт.

47

156839C1

COLLAR, gatherer shaft

2шт.

191950

SET SCREW,Hdls Hex Skt, 5/16" - 18 x 3/8", Cup Pt

SCREW, 5/16 x 3/8 cup-pt set

4шт.

48

168404C1

BRACKET, gatherer idler RH

8шт.

49

162501C1

GUIDE, gatherer chain right

8шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

50

166141C1

GUIDE, gatherer chain hold down right

8шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

56шт.

120376

NUT,5/16"-18, G5

56шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

56шт.

21496R1

WASHER

11/32 x 3/4 x 11 ga C-Z

56шт.

51

168396C1

STRIP, inner gatherer sprocket wear RH

8шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.
