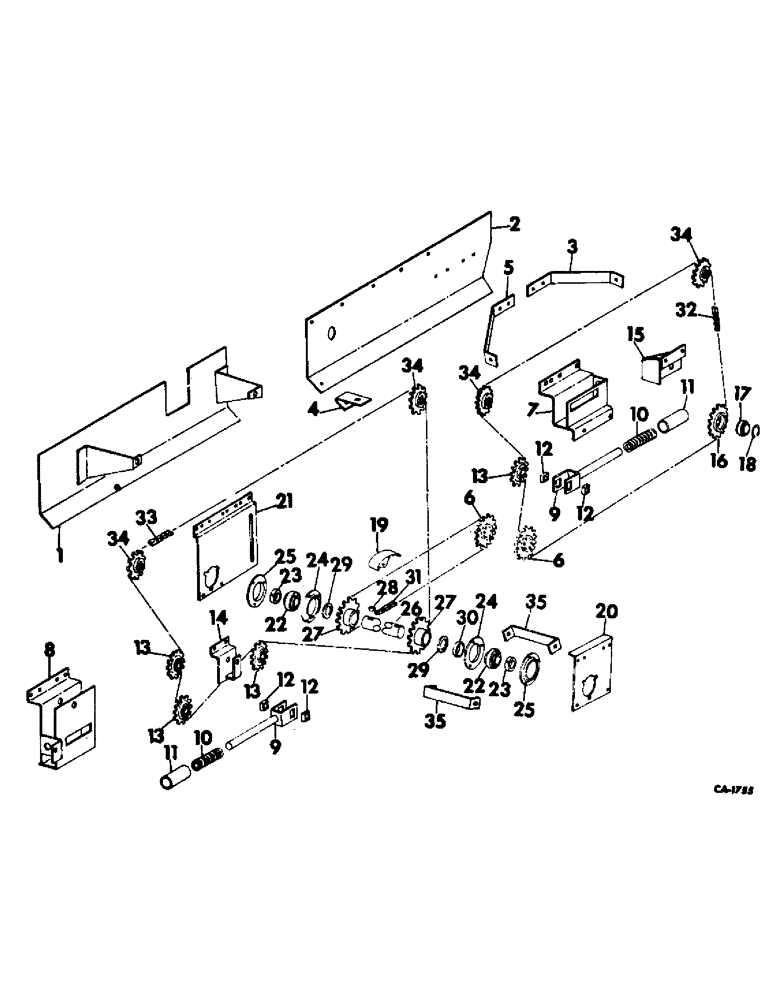

Запчасти Case IH 782 (P-20) - STALK ROLL DRIVE (58) - ATTACHMENTS/HEADERS

1

166892C1

SHIELD ASSY, stalk roll drive chain LH, serial no. 512 and below

1шт.

1

166893C1

SHIELD ASSY, stalk roll drive chain RH, serial no. 512 and below

1шт.

20485R1

BOLT,Short NK, 7/16"-14 x 3/4", G5. Full Thd

7/16 x 3/4 znd sq-nk crg

4шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

4шт.

271501

SOCKET

NUT, 7/16 C-Z hex

8шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

8шт.

2

173350C1

SHIELD, stalk roll drive chain LH, serial no. 513 and above

1шт.

2

173351C1

SHIELD, stalk roll drive chain RH, serial no. 513 and above

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

3

173352C1

SUPPORT, stalk roll drive shield inner, serial no. 513 and above

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

4шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

4

169131C1

SUPPORT, stalk roll drive shield outer, serial no. 513 and above

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

5

173440C1

SUPPORT, stalk roll drive chain shield center, serial no. 513 and above

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

6

SPROCKET, stalk roll drive, refer to main drive unit for listing

1шт.

7

162606C91

BRACKET ASSY, stalk roll drive tightener LH

1шт.

7

162607C91

BRACKET ASSY, stalk roll drive tightener RH

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

8шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

8шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

8шт.

8

162612C91

BRACKET ASSY, stalk roll drive tightener LH

1шт.

8

162613C91

BRACKET ASSY, stalk roll drive tightener RH

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

6шт.

271501

SOCKET

NUT, 7/16 C-Z hex

6шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

6шт.

9

151656C91

YOKE ASSY, drive chain tgtner

4шт.

21353R1

NUT, 7/8 znp nylon insert hex

4шт.

21212R1

WASHER

25/32 x 2 x 11 ga C-Z

4шт.

10

544

CANVAS

SPRING, drive chain tightener rod

4шт.

11

589856R1

SPACER, drive chain tightener

4шт.

12

156691C1

BAR

BLOCK, stalk roll drive chain tightener

8шт.

13

629972R91

DRIVE SPROCKET,15T

SPROCKET ASSY, chain idler & tightener

8шт.

18825R1

BOLT,Hex, 5/8" - 11 x 2 3/4", Gr 2

5/8 x 2-3/4 hex-hd mach

2шт.

18827R1

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 2

5/8 x 3-1/2 hex-hd mach

6шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 C-Z hex

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga

1шт.

14

168427C1

BRACKET

ASSY, stalk roll drive idler

2шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

4шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

15

162626C91

BRACKET ASSY, stalk roll drive idler LH

1шт.

15

162627C91

BRACKET ASSY, stalk roll drive idler RH

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

4шт.

271501

SOCKET

NUT, 7/16 C-Z hex

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

16

632125R1

SPROCKET, stalk roll drive idler

2шт.

271820

SCREW

BOLT, 7/8 x 3-1/4 znd hex-hd cap

2шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

2шт.

131047

WASHER,7/8"

7/8"

2шт.

21761R1

WASHER

29/32 x 1-1/2 x 16 ga

2шт.

21714R1

WASHER

29/32 x 1-1/2 x 11 ga

10шт.

17

580095R91

BALL BEARING

BEARING ASSY, idler sprocket ball

2шт.

18

555602R1

RING

idler sprocket bearing snap

2шт.

19

583620R1

BLOCK

stalk roll jackshaft LH

1шт.

19

583619R1

BLOCK

stalk roll jackshaft RH

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

2шт.

20

162630C1

BRACKET, jackshaft rear bearing, serial no. 512 and below

2шт.

20

173395C1

BRACKET, jackshaft rear bearing, serial no. 513 and above

2шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

4шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

21

162631C1

BRACKET, jackshaft front bearing LH

1шт.

21

162632C1

BRACKET, jackshaft front bearing RH

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

6шт.

271501

SOCKET

NUT, 7/16 C-Z hex

6шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

6шт.

22

156011C91

BALL BEARING

BEARING ASSY, stalk roll drive

4шт.

23

557995R11

COLLAR

W/SET SCREW, lkg

4шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16 hex-soc-hd cup

4шт.

24

939460R91

FLANGE

w/65 deg lub fitting, brg

4шт.

25

939461R1

FLANGE

stalk roll jackshaft brg

4шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

12шт.

120377

NUT,3/8" - 16, Gr 5

12шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

12шт.

26

162635C1

SHAFT, stalk roll drive jack

2шт.

27

163398C91

SPROCKET ASSY, stalk roll drive 23T

4шт.

28

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

5/16 x 1 Woodruff no. 8

4шт.

29

632156R1

THRUST WASHER

stalk roll drive jackshaft

1шт.

30

632157R1

SPACER, stalk roll drive jackshaft

2шт.

31

CHAIN ASSY, stalk roll jackshaft drive, use 71 links from 10-ft roll marked 1793D, 1 offset link and 1 connecting link 1786D

2шт.

32

CHAIN ASSY, stalk roll drive inner, use 123 links serial no. 512 and below & 119 links serial no. 513 and above from 10-ft roll marked 1793D and 1 connecting link 1786D

2шт.

33

CHAIN ASSY, stalk roll drive outer, use 99 links serial no. 512 and below & 101 links serial no. 513 and above from 10-ft roll marked 1793D and 1 connecting link 1786D

2шт.

34

163349C1

SPROCKET ASSY.

SPROCKET, stalk roll driven 15T

8шт.

35

162636C1

BRACE, jackshaft bracket

4шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

8шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

8шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

8шт.
