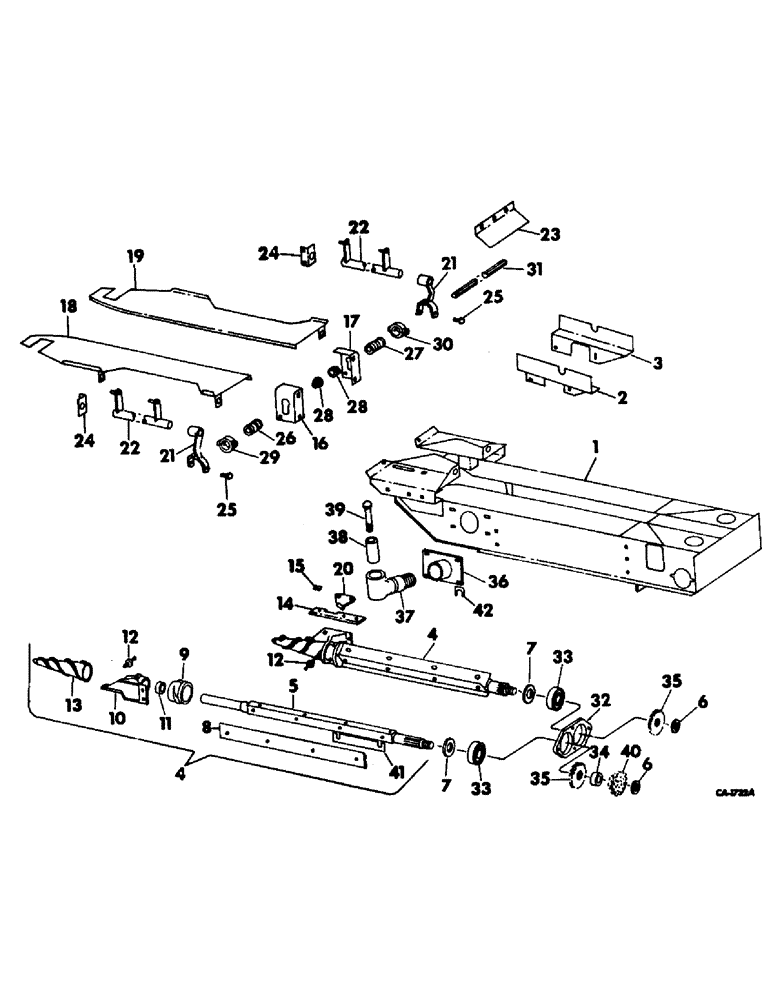

Запчасти Case IH 782 (P-18) - STALK ROLL FRAME AND ROLLS, SERIAL NO. 513 AND ABOVE (58) - ATTACHMENTS/HEADERS

1

173999C1

FRAME ASSY, stalk roll

8шт.

18695R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2

BOLT, 7/16 x 1-1/4 C-Z sq-nk crg

32шт.

271501

SOCKET

NUT, 7/16 C-Z hex

32шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

32шт.

2

167879C1

SHIELD, stalk roll frame LH

8шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

3

167880R1

BRACKET

SHIELD, stalk roll frame RH

8шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

4

173687C92

ROLL ASSY, left driver stalk

4шт.

4

173689C92

ROLL ASSY, right driven stalk

4шт.

4

173688C92

ROLL ASSY, left driver stalk

4шт.

4

173690C92

ROLL ASSY, right driven stalk, includes ref nos 5, 8 thru 13 and 41

4шт.

5

175232C91

SHAFT ASSY, stalk roll driver LH

4шт.

5

175235C91

SHAFT ASSY, stalk roll driven LH

4шт.

5

175233C91

SHAFT ASSY, stalk roll driver RH

4шт.

5

175234C91

SHAFT ASSY, stalk roll driven LH, includes ref no. 9

4шт.

19638R1

LOCK NUT,3/4"-16, GB

NUT, 3/4-16 znp nylon insert hex

16шт.

178139

WASHER, 1-3/16 C-Z med lock

16шт.

6

584253R1

WASHER

25/32 x 1-3/4 x 3/16

16шт.

7

654297R1

WASHER

stalk roll shaft

16шт.

8

173375C1

KNIFE SECTION

SECTION, stalk roll knife no. 1

32шт.

8

173376C1

KNIFE SECTION

SECTION, stalk roll knife no. 2

32шт.

181694

BOLT,Hex, 1/2" - 20 x 7/8"

SCREW, 1/2 x 7/8 C-Z hex-hd cap

256шт.

138549

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

256шт.

9

173693C1

SECTION, roll center LH, RH spiral

8шт.

9

173694C1

SECTION, roll center RH, LH spiral, serial no. 512 and below

8шт.

169047C1

PIN

5/16 x 2-3/8 groove

16шт.

9

175236C1

SECTION, roll center LH, RH spiral

8шт.

9

175237C1

SECTION, roll center RH, LH spiral, serial no. 513 and above

8шт.

175238C1

PIN, 3/8 x 2-3/4 hardened

16шт.

10

173695C1

SUPPORT ASSY, stalk roll LH

8шт.

10

173696C1

SUPPORT ASSY, stalk roll RH, includes ref nos. 11 & 12

8шт.

11

173699C1

BUSHING,25.6mm ID x 33.4mm OD x 56.9mm L

stalk roll support

32шт.

12

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , NPT 1/8"-27 x .66 lg

16шт.

13

173700C1

POINT, stalk roll front LH spiral

8шт.

13

173701C1

POINT, stalk roll front RH spiral

8шт.

173702C1

PIN

5/16 x 1-3/4 groove

16шт.

173703C1

PIN

5/16 x 2-1/4 groove

16шт.

14

162600C1

KNIFE

weed front LH

8шт.

14

162601C1

KNIFE

weed front RH

8шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 C-Z hex-hd cap

48шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

48шт.

15

589713R1

SHIM

WASHER, weed knife shim

1шт.

16

162878C1

BRACKET, stalk roll shield adj screw LH

8шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

16шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

16шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

16шт.

17

162879C1

BRACKET, stalk roll shield adj screw RH

8шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

16шт.

271501

SOCKET

NUT, 7/16 C-Z hex

16шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

16шт.

18

162886C93

SHIELD ASSY, stalk roll LH

8шт.

19

162887C93

SHIELD ASSY, stalk roll RH

8шт.

20

170376C1

SHIELD

stalk roll point LH

8шт.

20

170377C1

SHIELD

stalk roll point RH

8шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

32шт.

120377

NUT,3/8" - 16, Gr 5

32шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

32шт.

21

156706C1

ARM, stalk roll shield adj lower

16шт.

576483R1

LOCK PIN,5/16" x 1 1/2", Slotted

Pin, 5/16" x 1 1/2", Slotted

32шт.

125637

COTTER PIN,1/8" x 2"

PIN, SPLIT (COTTER), 1/8" x 2"

16шт.

16543R1

WASHER, 5/32 x 7/16 x 18 ga C-Z

32шт.

22

166151C91

ARM ASSY, stalk roll shield control

16шт.

23

166154C2

SHIELD, stalk roll adj rod

8шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

24шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

24шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

24шт.

24

156719C1

ANGLE, stalk roll shield control tube

32шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

64шт.

120377

NUT,3/8" - 16, Gr 5

64шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

64шт.

25

589457R1

SCREW, stalk roll shield adj nut retainer

32шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

32шт.

26

156708C2

SCREW, stalk roll shield adj left

8шт.

27

156709C2

SCREW, stalk roll shield adj right

8шт.

28

M5895

COLLAR, stalk roll shield adj rod

4шт.

125843

SET SCREW,Hex Skt, 3/8"-16 x 3/8"

SCREW, 3/8 x 3/8 C-Z hex-soc-hd cup

4шт.

29

935560R1

NUT, stalk roll shield adj left

8шт.

30

935561R1

NUT, stalk roll shield adj right

8шт.

31

162950C1

ROD, stalk roll shield adj

2шт.

32

153748C11

HOUSING W/BEARING, stalk roll, includes ref no. 33

8шт.

18695R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2

BOLT, 7/16 x 1-1/4 C-Z sq-nk crg

32шт.

271501

SOCKET

NUT, 7/16 C-Z hex

32шт.

493-21046

LOCK WASHER,Int Tooth, 7/16"

7/16 C-Z int-tooth lock

32шт.

33

173735C91

BEARING ASSY

stalk roll housing ball

16шт.

34

589696R1

BUSHING

SPACER, stalk roll driven sprocket

8шт.

35

580849R1

PINION

GEAR, stalk roll drive 20T

16шт.

36

162871C91

HUB ASSY, stalk roll support

16шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

48шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

48шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

48шт.

37

162876C2

ANCHOR, stalk roll support

16шт.

102609R1

LOCK NUT,3/4"-16

NUT, 3/4 nylon inset hex

12шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

16шт.

22241R1

WASHER

1-3/32 x 1-3/4 x 16 ga

1шт.

21713R1

WASHER,25/32" x 1 3/4" x .120"

25/32 x 1-3/4 x 11 ga

12шт.

38

158783C1

BUSHING

stalk roll support

16шт.

125250

SLOTTED NUT,1/2"-20, G8

NUT, 1/2 znd slt hex

16шт.

121224

SUPPORT

3/32" x 1"

16шт.

138549

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

32шт.

40

SPROCKET, stalk roll driven 15T, refer to stalk roll drive for listing

8шт.

41

174443C1

SHIM, stalk roll knife section .105

1шт.

41

175312C1

SHIM

stalk roll knife section .060

1шт.

42

175273C1

SHIM

lower stalk roll

1шт.
