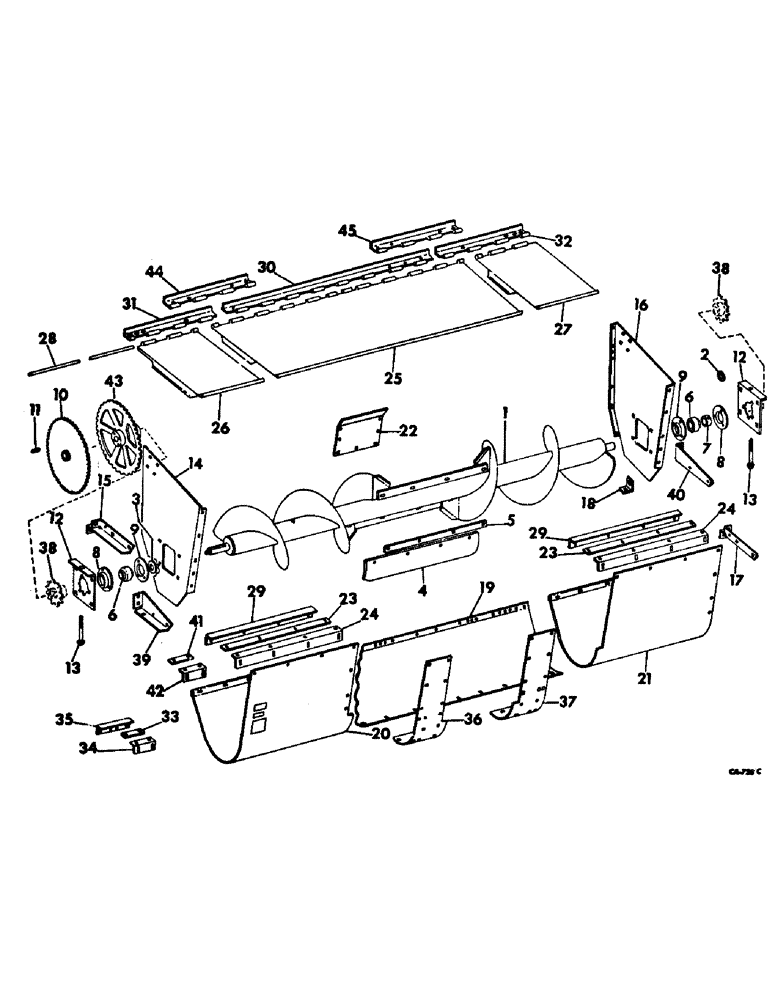

Запчасти Case IH 763 (N-08) - AUGER, DOORS, AND SHIELDS (58) - ATTACHMENTS/HEADERS

1

154186C91

AUGER ASSY, 763 corn head, for serial no. 685 & below ref. no. 1 bat 939171R1 & ref. no. 2 retainer 939170R1 must be ordered also

1шт.

1

173964C1

AUGER ASSY, 764CH

1шт.

163307C1

JAM NUT

3/4-16 NF C-Z slt-hex jam

1шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

181696

1/2-20 x 1 C-Z hex-hd cap

1шт.

138549

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

2шт.

492-11100

LOCK WASHER,1"

WASHER, LOCK, 1"

1шт.

131050

WASHER,1 1/4"

1 1/4"

1шт.

460908R1

WASHER

17/32 x 1-1/2 x 11 ga C-Z

1шт.

21713R1

WASHER,25/32" x 1 3/4" x .120"

25/32 x 1-3/4 x 11 ga C-Z

1шт.

2

654283R1

THRUST WASHER

auger shaft

1шт.

3

632156R1

THRUST WASHER

auger shaft

1шт.

4

162993C1

STRIP

BAT, auger, 763CH serial no., Serial Range: 501-685

2шт.

4

937171R1

BAT, auger, 763CH serial no. 686 & above

2шт.

4

174119C1

BAT, auger, 764CH

2шт.

5

162992C1

RETAINER, auger bat, 763CH serial no., Serial Range: 501-685

2шт.

5

937170R1

RETAINER, auger bat, 763CH serial no. 686 & above

2шт.

5

634471R1

RETAINER, auger bat, 764CH

2шт.

18685R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8 x 1-1/2 C-Z sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

6

156011C91

BALL BEARING

BEARING ASSY, auger shaft ball

2шт.

7

557995R11

COLLAR

W/SET SCREW, lkg

1шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16 hex-soc-hd cup-pt

1шт.

8

939460R91

FLANGE

ASSY, auger bearing

2шт.

9

939461R1

FLANGE

auger bearing

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

10

162994C91

SPROCKET ASSY, auger driven 60T, 763CH serial no. 1215 and below, 764CH serial no. 525 and below

1шт.

11

577147R1

KEY

5/16 x 1-3/16 sq-parallel, 763CH serial no. 1215 and below, 764CH serial no. 525 and below

4шт.

11

151257C1

KEY, 5/16 x 1-3/4 sq-parallel, 763CH serial no. 1216 and above, 764CH serial no. 526 and above

1шт.

12

166046C2

BRACKET, auger bearing

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

611346R1

WASHER

13/32 x 7/8 x 16 ga C-Z

8шт.

13

455300R1

BOLT, auger bearing bracket

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

611346R1

WASHER

13/32 x 7/8 x 16 ga C-Z

4шт.

14

169071C2

SECTION, auger trough end LH

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

4шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

3шт.

20485R1

BOLT,Short NK, 7/16"-14 x 3/4", G5. Full Thd

7/16 x 3/4 znd sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

7шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

7шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

15

167859C2

SUPPORT, auger trough end LH, 763CH serial no. 895 and below

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

16

169072C2

SECTION, auger trough end RH

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

4шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

3шт.

20485R1

BOLT,Short NK, 7/16"-14 x 3/4", G5. Full Thd

7/16 x 3/4 znd sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

7шт.

271501

SOCKET

NUT, 7/16 C-Z hex

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

7шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

17

167860C2

SUPPORT, auger trough end RH, 763CH serial no. 895 and below

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

18

169073C1

ANGLE, auger end sheet

4шт.

19

163093C2

TROUGH, auger center, 763CH serial no. 895 and below

1шт.

19

173399C1

TROUGH, auger center, 763CH serial no. 896 and above and 764CH

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

1шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

1шт.

20

163102C11

TROUGH ASSY, auger outer left, 763CH serial no. 895 and below

1шт.

20

173414C1

TROUGH ASSY, auger outer left, 763CH serial no. 896 nad above

1шт.

20

173968C1

TROUGH ASSY, auger outer left, 764CH

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

1шт.

21

163103C11

TROUGH ASSY, auger outer right, 763CH serial no. 895 and below

1шт.

21

173417C1

TROUGH ASSY, auger outer RH, 763CH serial no. 896 and above

1шт.

21

173971C1

TROUGH ASSY, auger outer RH

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

1шт.

22

162815C2

SHIELD, auger front center, 763CH

1шт.

22

162818C2

SHIELD, auger front center, 764CH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

1шт.

23

168097C1

STRIP, auger stripper, 763CH

2шт.

23

173994C1

STRIP, auger stripper, 764CH

2шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

1шт.

24

168096C1

ANGLE, auger stripper, 763CH

2шт.

24

173995C1

ANGLE, auger stripper, 764CH

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

25

168328C11

DOOR ASSY, auger center, 763CH serial no. 895 and below

1шт.

25

173521C1

DOOR ASSY, auger center, 763CH serial no. 896 and above and 764CH

1шт.

26

163135C92

DOOR ASSY, auger outer left, 763CH

1шт.

26

173972C1

DOOR ASSY, auger outer left, 764CH

1шт.

27

163136C92

DOOR ASSY, auger outer right, 763CH

1шт.

27

173973C1

DOOR ASSY, auger outer right, 764CH

1шт.

28

154254C2

ROD, auger outer door hinge, 763CH

2шт.

28

173976C1

ROD, auger outer door hinge, 764CH

2шт.

29

163086C1

ANGLE, auger door, 763CH serial no. 895 and below

2шт.

29

173535C1

ANGLE, auger door LH, 763CH serial no. 896 and above

1шт.

29

173977C1

ANGLE, auger door LH, 764CH

1шт.

29

173536C1

ANGLE, auger door RH, 763CH serial no. 896 and above

1шт.

29

173978C1

ANGLE, auger door RH, 764CH

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

30

162782C1

HINGE, auger door center, 764CH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange whiz lock

7шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

7шт.

31

155034C2

HINGE, auger door outer LH, 763CH

1шт.

31

173979C1

HINGE, auger door outer LH, 764CH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange whiz lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

1шт.

32

155035C2

HINGE, auger door outer RH, 763CH

1шт.

32

173980C1

HINGE, auger door outer RH, 764CH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange whiz lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

1шт.

33

168177C1

STRIP, auger stripper extension, 763CH serial no. 895 and below on 815 combine

2шт.

34

168184C1

ANGLE, auger stripper extension, 763CH serial no. 895 and below on 815 combine

2шт.

35

167948C1

EXTENSION, auger door angle, 763CH serial no. 895 and below on 815 combine

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

36

163094C1

FILLER, auger trough inner LH, 763CH serial no. 895 and below on 815 combine

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 znd sq-nk crg

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

5шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

37

163095C1

FILLER, auger trough inner RH, 763CH serial no. 895 and below on 815 combine

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 znd sq-nk crg

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

5шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

38

SPROCKET, beater drive, refer to beater and beater drive unit for listing

2шт.

39

173426C1

SUPPORT, auger trough end LH, 763CH serial no. 896 & above & 764CH

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

40

173427C1

SUPPORT, auger trough end RH, 763CH serial no. 896 & above & 764CH

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

41

173741C1

STRIP, auger stripper extension, 763CH serial no. 896 and above on 815 combine

2шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

4шт.

42

173742C1

ANGLE, auger stripper extension, 763CH serial no. 896 and above on 815 combine

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

43

174721C1

SPROCKET, auger driven 60T, 763CH serial no. 1216 and above, 764CH serial no. 526 and above

1шт.

44

154250C2

HINGE, auger door inner LH, 763CH

1шт.

44

150351C1

HINGE, auger door inner LH, 764CH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange whiz lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

1шт.

45

154251C2

HINGE, auger door inner RH, 763CH

1шт.

45

150352C1

HINGE, auger door inner RH, 764CH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange whiz lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

1шт.
