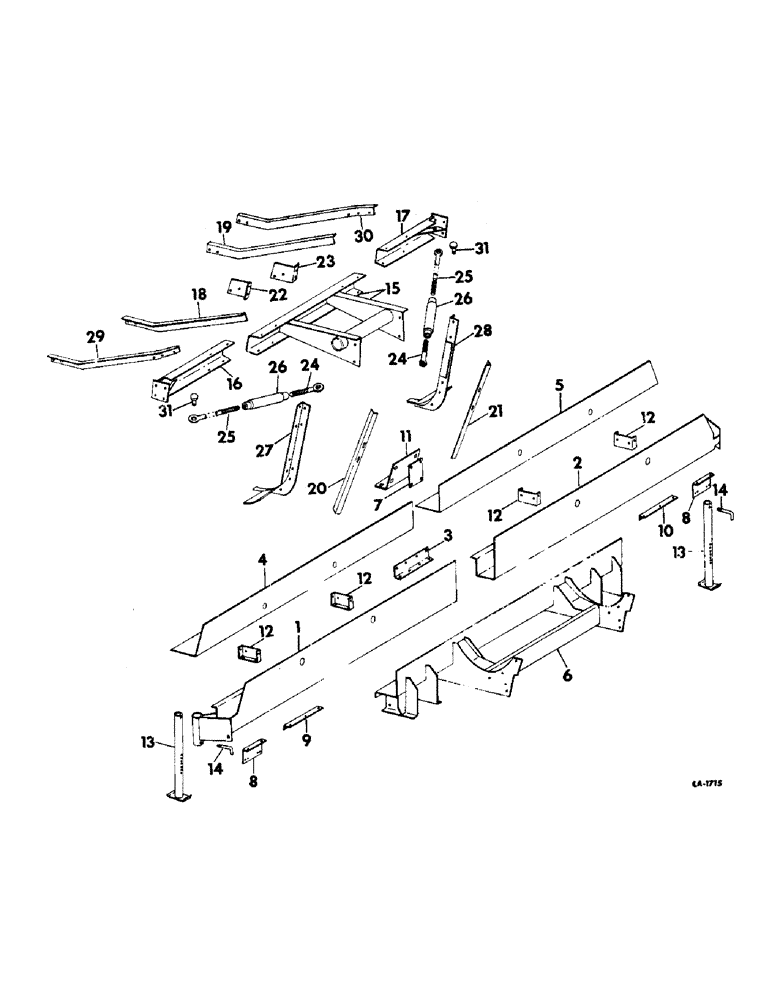

Запчасти Case IH 763 (N-05) - MAIN FRAME, FRONT EXTENSION AND STAND, 763CH SERIAL NO. 896 & ABOVE AND 764CH (58) - ATTACHMENTS/HEADERS

1

173472C1

FRAME ASSY, lower main LH, 763CH

1шт.

1

173789C1

FRAME ASSY, lower main LH, 764CH

1шт.

2

173473C1

FRAME ASSY, lower main RH, 763CH

1шт.

2

173790C1

FRAME ASSY, lower main RH, 764CH

1шт.

3

173482C1

ANGLE, main frame tie, 763CH

1шт.

3

173794C1

ANGLE, main frame tie, 764CH

1шт.

4

173490C1

FRAME, main upper LH, 763CH

1шт.

4

173787C1

FRAME, main upper LH, 764CH

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

8шт.

271501

SOCKET

NUT, 7/16 znd hex

8шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

8шт.

5

173491C1

FRAME, main upper RH, 763CH

1шт.

5

173788C1

FRAME, main upper RH, 764CH

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

8шт.

NLS

NO LONGER SERVICED

NUT, 7/16 znd hex

8шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

8шт.

6

173494C1

SUPPORT ASSY, main frame

1шт.

18421C1

BOLT, 7/16 x 1 znd sq-nkc rg

6шт.

271501

SOCKET

NUT, 7/16 znd hex

6шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

6шт.

7

173507C1

PLATE, main frame tie, 763CH

1шт.

7

173793C1

PLATE, main frame tie, 764CH

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16 znd hex

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

8

173511C1

ANCHOR, stalk roll tightener bracket

2шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

4шт.

271501

SOCKET

NUT, 7/16 znd hex

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

9

173513C1

ANCHOR, jackshaft rear plate LH, 763CH

1шт.

9

173795C1

ANCHOR, jackshaft rear plate LH, 764CH

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

3шт.

NLS

NO LONGER SERVICED

NUT, 7/16 znd hex

3шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

3шт.

10

173514C1

ANCHOR, jackshaft rear plate RH, 763CH

1шт.

10

173796C1

ANCHOR, jackshaft rear plate RH, 764CH

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

3шт.

271501

SOCKET

NUT, 7/16 znd hex

3шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

3шт.

11

173516C1

BRACKET, feeder extension vertical, 763CH

1шт.

11

173517C1

BRACKET, feeder extension vertical, 764CH

1шт.

18695R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2

BOLT, 7/16 x 1-1/4 znd sq-nk crg

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16 znd hex

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

21331R1

WASHER

15/32 x 1-1/4 x 16 ga C-Z

2шт.

12

173518C1

BRACE, main frame lower tie, 4 used 763CH, 6 used 764CH

1шт.

13

166702C91

STAND ASSY

2шт.

14

589584R1

PIN

stand

2шт.

517843R1

COTTER PIN

PIN, 3/16 qa cot

2шт.

15

173314C1

EXTENSION ASSY, feeder front

1шт.

18695R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2

BOLT, 7/16 x 1-1/4 znd sq-nk crg

2шт.

19041R1

BOLT,7/16"-14 x 1 1/4", G2, Full Thd

7/16 x 1-1/4 znd no. 3 plow

2шт.

271501

SOCKET

NUT, 7/16 znd hex

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

16

173318C1

EXTENSION ASSY, feeder outer LH, 763CH

1шт.

16

173950C1

EXTENSION ASSY, feeder outer LH, 764CH

1шт.

18695R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2

BOLT, 7/16 x 1-1/4 znd sq-nk crg

6шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

4шт.

NLS

NO LONGER SERVICED

NUT, 7/16 znd hex

10шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

10шт.

17

173319C1

EXTENSION ASSY, feeder outer RH, 763CH

1шт.

17

173951C1

EXTENSION ASSY, feeder outer RH, 764CH

1шт.

18695R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2

BOLT, 7/16 x 1-1/4 znd sq-nk crg

6шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

4шт.

271501

SOCKET

NUT, 7/16 znd hex

10шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

10шт.

18

162905C1

ANGLE, stalk roll frame brace LH

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

4шт.

NLS

NO LONGER SERVICED

NUT, 7/16 znd hex

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

19

162906C1

ANGLE, stalk roll frame brace RH

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

4шт.

271501

SOCKET

NUT, 7/16 znd hex

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

20

162908C1

ANGLE, feeder extension vertical LH

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

4шт.

NLS

NO LONGER SERVICED

NUT, 7/16 znd hex

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

21

162909C1

ANGLE, feeder extension vertical RH

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

4шт.

271501

SOCKET

NUT, 7/16 znd hex

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

22

162951C2

BRACKET, stalk roll frame brace LH

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16 znd hex

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

23

162952C2

BRACKET, stalk roll frame brace RH

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

2шт.

271501

SOCKET

NUT, 7/16 znd hex

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

24

173326C1

ROD, diagonal brace LH thd inner

2шт.

18839R1

BOLT,Hex, 3/4" x 2 1/4"

3/4 x 2-1/4 znd hex-hd mach

2шт.

280954

NUT,3/4"-10, G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

25

173328C1

ROD, diagonal brace outer, 763CH

2шт.

25

173954C1

ROD, diagonal brace outer, 764CH

2шт.

425-1514

JAM NUT,Jam, 7/8"-14, G5

7/8-14 C-Z hex jam

2шт.

26

173331C1

TURNBUCKLE, diagonal brace

2шт.

27

173332C1

ANGLE ASSY, auger trough LH

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 znd sq-nk crg

4шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

6шт.

18695R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2

BOLT, 7/16 x 1-1/4 znd sq-nk crg

1шт.

19040R1

CARRIAGE BOLT,#3, 7/16" - 14 x 1", Gr 2

BOLT, 7/16 x 1 znd no. 3 plow

1шт.

120376

NUT,5/16"-18, G5

10шт.

NLS

NO LONGER SERVICED

NUT, 7/16 znd hex

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

28

173333C1

ANGLE ASSY, auger trough RH

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 znd sq-nk crg

4шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

6шт.

18695R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2

BOLT, 7/16 x 1-1/4 znd sq-nk crg

1шт.

19040R1

CARRIAGE BOLT,#3, 7/16" - 14 x 1", Gr 2

BOLT, 7/16 x 1 znd no. 3 plow

1шт.

120376

NUT,5/16"-18, G5

10шт.

271501

SOCKET

NUT, 7/16 znd hex

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

29

169062C1

ANGLE, stalk roll outer frame support LH, for 28 in. or 36 in. rows

1шт.

29

169066C1

ANGLE, stalk roll outer frame support LH, for 30 in. or 38 in. rows

1шт.

18695R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2

BOLT, 7/16 x 1-1/4 znd sq-nk crg

4шт.

NLS

NO LONGER SERVICED

NUT, 7/16 znd hex

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

30

169063C1

ANGLE, stalk roll outer frame support RH, for 28 in. or 36 in. rows

1шт.

30

169067C1

ANGLE, stalk roll outer frame support RH, for 30 in. or 38 in. rows

1шт.

18695R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2

BOLT, 7/16 x 1-1/4 znd sq-nk crg

4шт.

271501

SOCKET

NUT, 7/16 znd hex

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

31

21667R1

HEADED PIN,3/4" x 3 3/4"

PIN, 3/4 x 3-1/2 C-Z std-hd

2шт.

20341R1

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

2шт.
