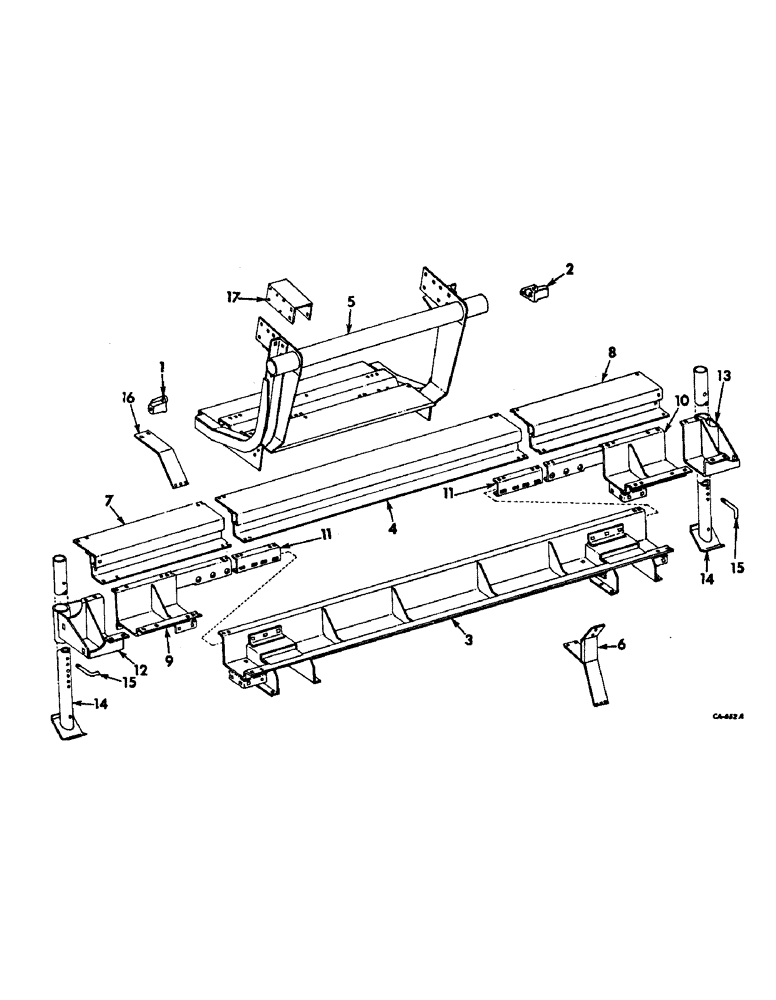

Запчасти Case IH 763 (N-03) - FEEDER ADAPTER, MAIN FRAME AND STAND, 763CH SERIAL NO. 895 & BELOW (58) - ATTACHMENTS/HEADERS
№
Артикул
Название
Примечание
Количество
1
165486C1
SUPPORT
feeder adapter lower LH
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
3шт.
180177
BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5
SCREW, 1/2 x 1-1/2 hex-hd cap
2шт.
433156
BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5
SCREW, 1/2 x 4-1/2 znd hex-hd cap
1шт.
120384
WASHER,1/2"
LOCK, 1/2"
3шт.
2
165487C1
SUPPORT
feeder adapter lower RH
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
3шт.
180177
BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5
SCREW, 1/2 x 1-1/2 hex-hd cap
2шт.
433156
BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5
SCREW, 1/2 x 4-1/2 znd hex-hd cap
1шт.
120384
WASHER,1/2"
LOCK, 1/2"
3шт.
3
163334C91
FRAME ASSY, main lower
1шт.
18421R1
CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2
BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd
14шт.
NLS
NO LONGER SERVICED
NUT, 7/16 C-Z hex
14шт.
120383
LOCK WASHER,Helical Spring, 7/16"
WASHER, LOCK, 7/16"
14шт.
4
163337C91
FRAME ASSY, main upper
1шт.
5
162925C92
ADAPTER ASSY, feeder, 815 combine
1шт.
5
162914C92
ADAPTER ASSY, feeder, 915 combine
1шт.
18421R1
CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2
BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd
1шт.
18695R1
CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2
BOLT, 7/16 x 1-1/4 C-Z sq-nk crg
1шт.
271501
SOCKET
NUT, 7/16 C-Z hex
1шт.
120383
LOCK WASHER,Helical Spring, 7/16"
WASHER, LOCK, 7/16"
1шт.
6
NOT USED THIS APPLICATION
1шт.
7
162557C91
EXTENSION ASSY, upper main frame LH
1шт.
8
162558C91
EXTENSION ASSY, upper main frame RH
1шт.
9
162564C91
EXTENSION ASSY, main frame lower LH
1шт.
18421R1
CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2
BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd
4шт.
NLS
NO LONGER SERVICED
NUT, 7/16 C-Z hex
4шт.
120383
LOCK WASHER,Helical Spring, 7/16"
WASHER, LOCK, 7/16"
4шт.
21331R1
WASHER
15/32 x 1-1/4 x 16 ga
8шт.
10
162565C91
EXTENSION ASSY, main frame lower RH
1шт.
18421R1
CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2
BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd
4шт.
271501
SOCKET
NUT, 7/16 C-Z hex
4шт.
120383
LOCK WASHER,Helical Spring, 7/16"
WASHER, LOCK, 7/16"
4шт.
21331R1
WASHER
15/32 x 1-1/4 x 16 ga
8шт.
11
162602C1
CHANNEL, main frame extension tie
2шт.
18421R1
CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2
BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd
8шт.
NLS
NO LONGER SERVICED
NUT, 7/16 C-Z hex
8шт.
120383
LOCK WASHER,Helical Spring, 7/16"
WASHER, LOCK, 7/16"
8шт.
12
162897C91
HOLDER ASSY, stand LH
1шт.
18695R1
CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2
BOLT, 7/16 x 1-1/4 C-Z sq-nk crg
4шт.
271501
SOCKET
NUT, 7/16 C-Z hex
4шт.
120383
LOCK WASHER,Helical Spring, 7/16"
WASHER, LOCK, 7/16"
4шт.
13
162898C91
HOLDER ASSY, stand RH
1шт.
18695R1
CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2
BOLT, 7/16 x 1-1/4 C-Z sq-nk crg
4шт.
NLS
NO LONGER SERVICED
NUT, 7/16 C-Z hex
4шт.
120383
LOCK WASHER,Helical Spring, 7/16"
WASHER, LOCK, 7/16"
4шт.
14
166702C91
STAND ASSY
2шт.
15
589584R1
PIN
stand
2шт.
517843R1
COTTER PIN
PIN, 3/16 qa cot
2шт.
16
162895C1
BRACE, main frame
2шт.
18421R1
CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2
BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd
4шт.
18695R1
CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2
BOLT, 7/16 x 1-1/4 C-Z sq-nk crg
4шт.
271501
SOCKET
NUT, 7/16 C-Z hex
8шт.
120383
LOCK WASHER,Helical Spring, 7/16"
WASHER, LOCK, 7/16"
8шт.
17
166784C91
CHANNEL ASSY, feeder extension, 915 combine
2шт.
18695R1
CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2
BOLT, 7/16 x 1-1/4 znd sq-nk crg
4шт.
18809R1
BOLT,Hex, 1/2"-13 x 2", G2
1/2 x 2 znd hex-hd mach
10шт.
NLS
NO LONGER SERVICED
NUT, 7/16-14 C-Z hex
4шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
10шт.
120383
LOCK WASHER,Helical Spring, 7/16"
WASHER, LOCK, 7/16"
4шт.
120384
WASHER,1/2"
LOCK, 1/2"
10шт.
Выбрано товаров: 61
