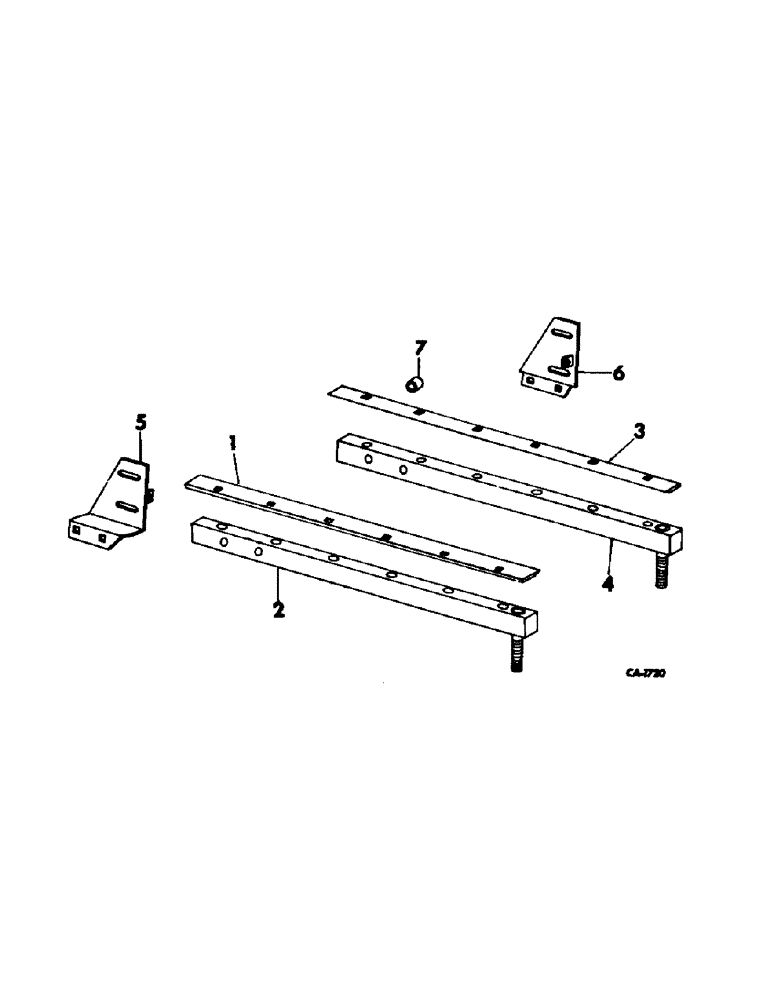

Запчасти Case IH 763 (N-35) - WEED KNIFE ATTACHMENT (58) - ATTACHMENTS/HEADERS
№
Артикул
Название
Примечание
Количество
1
162974C1
KNIFE, weed rear
6шт.
18479R1
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 2
BOLT, 3/8 x 2 C-Z sq-nk crg
30шт.
18422R1
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 2
BOLT, 3/8 x 1-3/4 C-Z sq-nk crg
30шт.
120376
NUT,5/16"-18, G5
3/8 C-Z hex
30шт.
24764R1
LOCK NUT,3/8"-16, GB
NUT, 3/8 znp nylon insert jam
6шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
30шт.
2
162970C91
TUBE ASSY, weed knife retainer
6шт.
219758
JAM NUT,Jam, 3/4"-10, G5
3/4-16 C-Z hex jam
6шт.
21626R1
LOCK NUT,3/4"-16
NUT, 3/4-16 znp nylon insert lock
6шт.
467750R1
WASHER
25/32 x 1-1/2 x 11 ga C-Z
12шт.
3
162974C1
KNIFE, weed rear
6шт.
18479R1
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 2
BOLT, 3/8 x 2 C-Z sq-nk crg
30шт.
18781R1
BOLT,Hex, 3/8"-16 x 2", G2
3/8 x 2 C-Z hex-hd mach
6шт.
120376
NUT,5/16"-18, G5
3/8 C-Z hex
30шт.
24764R1
LOCK NUT,3/8"-16, GB
NUT, 3/8 znp nylon insert jam
6шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
30шт.
4
162970C91
TUBE ASSY, weed knife retainer
6шт.
219758
JAM NUT,Jam, 3/4"-10, G5
3/4-16 C-Z hex jam
6шт.
21626R1
LOCK NUT,3/4"-16
NUT, 3/4-16 znp nylon insert lock
6шт.
467750R1
WASHER
25/32 x 1-1/2 x 11 ga C-Z
12шт.
5
162975C91
BRACKET ASSY, weed knife front LH, 763CH serial no. 895 and below
6шт.
18494R1
BOLT,Hex, 3/8" - 16 x 1", Gr 2
3/8 x 1 C-Z hex-hd mach
6шт.
18495R1
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2
3/8 x 1-1/4 hex-hd mach
12шт.
120377
NUT,3/8" - 16, Gr 5
18шт.
20248R1
BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 8
SCREW, 3/8 x 2-1/4 hex-hd cap
12шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
18шт.
619856R1
WASHER
13/32 x 1 x 16 ga C-Z
12шт.
20803R1
WASHER
13/32 x 1 x 11 ga C-Z
12шт.
5
174010C1
SUPPORT ASSY, weed knife front LH, 763CH serial no. 896 and above and 764CH
6шт.
18494R1
BOLT,Hex, 3/8" - 16 x 1", Gr 2
3/8 x 1 znd hex-hd mach
6шт.
18695R1
CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2
BOLT, 7/16 x 1-1/4 znd sq-nk crg
12шт.
124829
JAM NUT,Hex, 3/8" - 16, Gr 5
6шт.
NLS
NO LONGER SERVICED
NUT, 7/16 znd hex
12шт.
120377
NUT,3/8" - 16, Gr 5
12шт.
20248R1
BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 8
SCREW, 3/8 x 2-1/4 znd hex-hd cap
12шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
12шт.
120383
LOCK WASHER,Helical Spring, 7/16"
WASHER, LOCK, 7/16"
12шт.
20803R1
WASHER
13/32 x 1 x 11 ga C-Z
12шт.
6
162976C91
BRACKET ASSY, weed knife front RH, 763CH serial no. 895 and below
6шт.
18494R1
BOLT,Hex, 3/8" - 16 x 1", Gr 2
3/8 x 1 C-Z hex-hd mach
6шт.
18495R1
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2
3/8 x 1-1/4 hex-hd mach
12шт.
120377
NUT,3/8" - 16, Gr 5
18шт.
20248R1
BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 8
SCREW, 3/8 x 2-1/4 hex-hd cap
12шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
18шт.
619856R1
WASHER
13/32 x 1 x 16 ga C-Z
12шт.
20803R1
WASHER
13/32 x 1 x 11 ga C-Z
12шт.
6
174011C1
SUPPORT ASSY, weed knife front RH, 763CH serial no. 896 and above and 764CH
6шт.
18494R1
BOLT,Hex, 3/8" - 16 x 1", Gr 2
3/8 x 1 znd hex-hd mach
6шт.
18695R1
CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2
BOLT, 7/16 x 1-1/4 znd sq-nk crg
12шт.
124829
JAM NUT,Hex, 3/8" - 16, Gr 5
6шт.
271501
SOCKET
NUT, 7/16 znd hex
12шт.
120377
NUT,3/8" - 16, Gr 5
12шт.
20248R1
BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 8
SCREW, 3/8 x 2-1/4 znd hex-hd cap
12шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
12шт.
120383
LOCK WASHER,Helical Spring, 7/16"
WASHER, LOCK, 7/16"
12шт.
20803R1
WASHER
13/32 x 1 x 11 ga C-Z
12шт.
7
556587R1
SPACER
weed knife front bracket, 763CH serial no. 895 and below
24шт.
Выбрано товаров: 57
