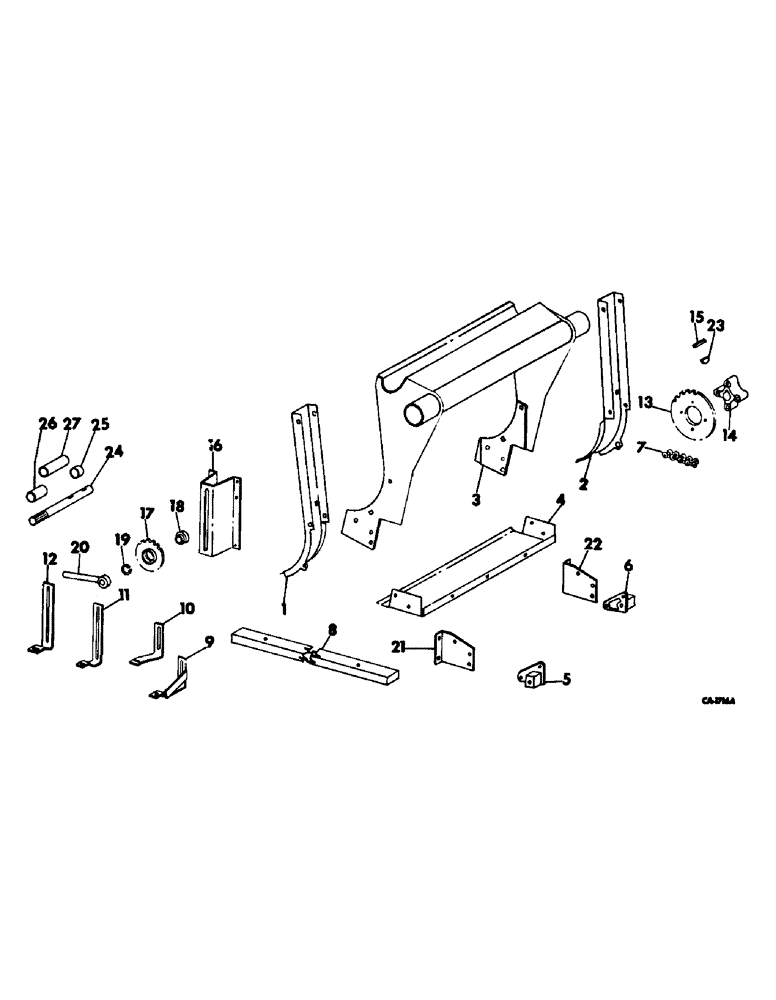

Запчасти Case IH 763 (N-33) - FEEDER ADAPTER AND DRIVE PARTS (58) - ATTACHMENTS/HEADERS
№
Артикул
Название
Примечание
Количество
1
173663C1
CHANNEL, feeder adapter filler LH, 815 combine
1шт.
18421R1
CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2
BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd
2шт.
271501
SOCKET
NUT, 7/16 C-Z hex
2шт.
120383
LOCK WASHER,Helical Spring, 7/16"
WASHER, LOCK, 7/16"
2шт.
2
173664C1
CHANNEL, feeder adapter filler RH, 815 combine
1шт.
18421R1
CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2
BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd
2шт.
NLS
NO LONGER SERVICED
NUT, 7/16 C-Z hex
2шт.
120383
LOCK WASHER,Helical Spring, 7/16"
WASHER, LOCK, 7/16"
2шт.
3
173665C1
ADAPTER ASSY, feeder, 815 combine
1шт.
3
173668C1
ADAPTER ASSY, feeder, 915 combine
1шт.
18696R1
CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/2", Gr 2
BOLT, 7/16 x 1-1/2 znd sq-nk crg
2шт.
271501
SOCKET
NUT, 7/16 znd hex
2шт.
120383
LOCK WASHER,Helical Spring, 7/16"
WASHER, LOCK, 7/16"
2шт.
4
173670C1
BOTTOM, feeder adapter, 815 combine
1шт.
4
173671C1
BOTTOM, feeder adapter, 915 combine
1шт.
18508R1
CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd
BOLT, 3/8 x 3/4 znd sq-nk crg
3шт.
120377
NUT,3/8" - 16, Gr 5
3шт.
180177
BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5
SCREW, 1/2 x 1-1/2 znd hex-hd cap
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
3шт.
5
165486C1
SUPPORT
feeder adapter lower LH
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
3шт.
180177
BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5
SCREW, 1/2 x 1-1/2 hex-hd cap
2шт.
433156
BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5
SCREW, 1/2 x 4-1/2 znd hex-hd cap
2шт.
120384
WASHER,1/2"
LOCK, 1/2"
3шт.
6
165487C1
SUPPORT
feeder adapter lower RH
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
3шт.
180177
BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5
SCREW, 1/2 x 1-1/2 hex-hd cap
2шт.
433156
BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5
SCREW, 1/2 x 4-1/2 znd hex-hd cap
1шт.
120384
WASHER,1/2"
LOCK, 1/2"
3шт.
7
CHAIN, main drive, use 205 links from 10-ft marked 1793D, 1 connecting link 1786D and 1 offset link 1318D
1шт.
7
CHAIN, main drive extension, for 763CH serial no. 895 and below, use 3 links from 10-ft roll marked 1793D and one connecting link 1786D
1шт.
8
164831C1
GUIDE, chain RH
1шт.
18482R1
BOLT,Short NK, 5/16"-18 x 2", G2
5/16 x 2 znd sq-nk crg
2шт.
120376
NUT,5/16"-18, G5
2шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
2шт.
9
172559C1
SUPPORT ASY, chain guide rear, 815 combine
1шт.
20803R1
WASHER
13/32 x 1 x 11 ga
2шт.
10
172757C1
SUPPORT, chain guide rear, 915 combine
1шт.
20803R1
WASHER
13/32 x 1 x 11 ga
2шт.
11
172558C1
SUPPORT, chain guide front, 815 combine
1шт.
18684R1
BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2
3/8 x 1-1/4 znd sq-nk crg
2шт.
120377
NUT,3/8" - 16, Gr 5
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
20803R1
WASHER
13/32 x 1 x 11 ga C-Z
2шт.
12
172756C1
SUPPORT, chain guide front, 915 combine
1шт.
13
162228C1
SPROCKET, main drive 32T
1шт.
13
166003C1
SPROCKET, main drive 29T
1шт.
14
172564C1
HUB, main drive sprocket, 763CH serial no. 896 and above on 815 combine serial no. 3028 and above
1шт.
14
172565C1
HUB, main drive sprocket, 763CH serial no. 895 & below on 815 combine serial no. 3028 & above or 915 combine serial no. 1778 & above
1шт.
14
173686C1
HUB, main drive sprocket, 763CH serial no. 896 and above on 815 combine serial no. 3027 and below
1шт.
14
159837C1
HUB, main drive sprocket, 763CH serial no. 895 & below on 815 combine serial no. 3027 & below or 915 combine serial no. 1777 & below 763CH serial no. 896 & above or 764CH on 915 combine serial no. 1777 and below
1шт.
18782R1
BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 2
3/8 x 2-1/4 znd hex-hd mach
4шт.
18786R1
BOLT,Hex, 3/8"-16 x 3 1/2", G2
3/8 x 3-1/2 znd hex-hd mach
4шт.
120377
NUT,3/8" - 16, Gr 5
4шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
4шт.
15
240
KEY,Gib, 3/8" Sq x 2 1/2"
3/8 x 2-1/2 sq tapered
1шт.
16
172568C1
SUPPORT, main drive tightener, 815 combine serial no. 3028 and above
1шт.
16
160949C1
SUPPORT, main drive tightener, 815 combine serial no. 3027 and below and all 915 combines
1шт.
17351R1
CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2
BOLT, 3/8 x 1 znd sq-nk crg
4шт.
120377
NUT,3/8" - 16, Gr 5
4шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
4шт.
17
632125R1
SPROCKET, main drive chain tightener, 20T
1шт.
18
580095R91
BALL BEARING
BEARING ASSY, tightener sprocket
1шт.
22861R1
BOLT, 7/8 x 3 znd sq-nk crg
1шт.
NLS
NO LONGER SERVICED
7/8"
1шт.
20703R1
WASHER
29/32 x 1-3/4 x 16 ga C-Z
1шт.
21220R1
WASHER
29/32 x 1-1/4 x 11 ga C-Z
1шт.
20703R1
WASHER
1-5/32 x 2 x 16 ga C-Z
3шт.
21214R1
WASHER
1-5/32 x 2 x 11 ga C-Z
3шт.
19
555602R1
RING
tightener sprocket brg snap
1шт.
20
167475C1
RETAINER, tightener
1шт.
21
173679C1
SUPPORT, feeder lower LH, 815 combine
1шт.
17140R1
CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd
BOLT, 1/2 x 1-1/4 znd sq-nk crg
2шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
2шт.
120384
WASHER,1/2"
LOCK, 1/2"
2шт.
20601R1
WASHER
17/32 x 1-1/4 x 11 ga C-Z
2шт.
22
173680C1
SUPPORT, feeder lower RH, 815 combine
1шт.
17140R1
CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd
BOLT, 1/2 x 1-1/4 znd sq-nk crg
2шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
2шт.
120384
WASHER,1/2"
LOCK, 1/2"
2шт.
20601R1
WASHER
17/32 x 1-1/4 x 11 ga C-Z
2шт.
23
27958A
KEY
3/8 x 2-1/8 Woodruff
1шт.
24
172567C1
SHAFT, feeder platform drive, 763CH serial no. 896 and above on 815 combine serial no. 3027 and below
1шт.
25
172570C1
SPACER, feeder platform drive shaft inner, 763CH serial no. 896 and above on 815 combine serial no. 3027 and below
1шт.
26
172571C1
SPACER, feeder platform drive shaft outer, 763CH serial no. 896 and above on 815 combine serial no. 3027 and below
1шт.
608085R1
WASHER
1-13/32 x 2 x 16 ga C-Z
3шт.
27
NOT USED THIS APPLICATION
1шт.
Выбрано товаров: 87
