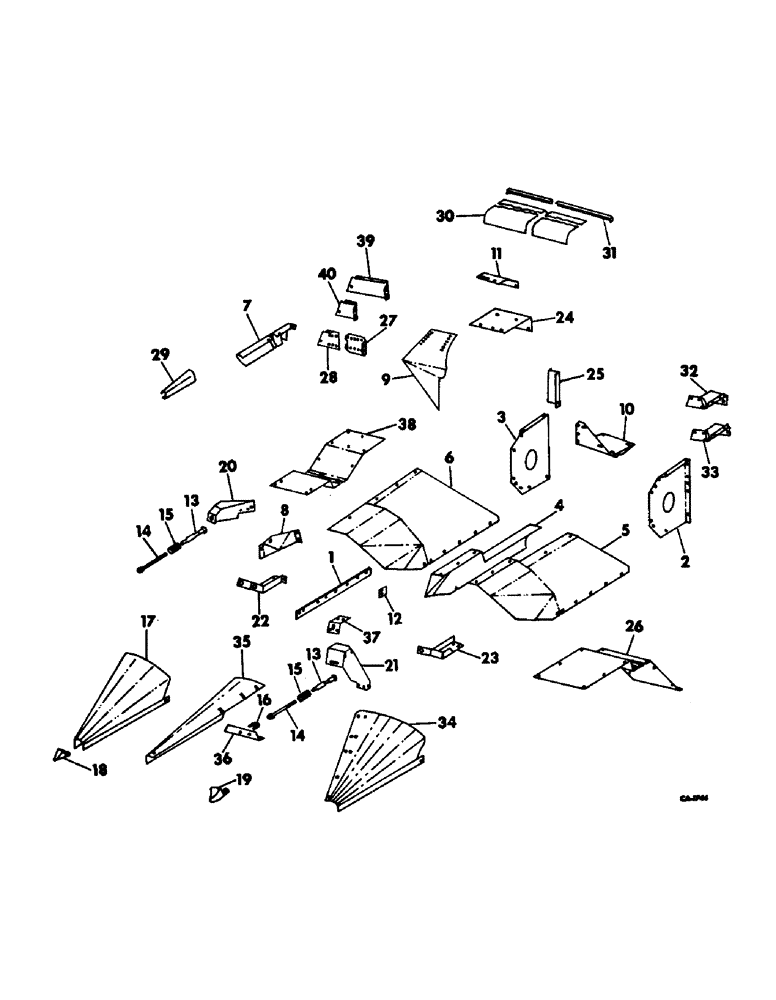

Запчасти Case IH 763 (N-29) - GATHERER SHIELDS AND DIVIDERS (58) - ATTACHMENTS/HEADERS

1

162770C91

SUPPORT ASSY, gatherer shield LH

6шт.

1

162771C91

SUPPORT ASSY, gatherer shield RH

6шт.

18695R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2

BOLT, 7/16 x 1-1/4 C-Z sq-nk crg

12шт.

271501

SOCKET

NUT, 7/16 C-Z hex

12шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

12шт.

2

162779C1

SIDE, beater LH

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

14шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

6шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

8шт.

3

162780C1

SIDE, beater RH

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

14шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

6шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

8шт.

4

162757C93

SHIELD ASSY, inner gatherer LH

5шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

1шт.

5

162758C93

SHIELD ASSY, inner gatherer RH

5шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

1шт.

6

162763C93

SHIELD ASSY, outer gatherer LH

1шт.

6

162764C93

SHIELD ASSY, outer gatherer RH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange whiz lock

2шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

2шт.

7

163391C91

EXTENSION ASSY, outer gatherer shield LH

1шт.

7

163392C91

EXTENSION ASSY, outer gatherer shield RH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange whiz lock

22шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

22шт.

8

162773C1

REINFORCEMENT, divider hinge LH

6шт.

8

162774C1

REINFORCEMENT, divider hinge RH

6шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

12шт.

120377

NUT,3/8" - 16, Gr 5

12шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

12шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

12шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

12шт.

9

163374C1

EXTENSION, beater cover inner LH

1шт.

9

163375C1

EXTENSION, beater cover inner RH

1шт.

9

163376C1

EXTENSION, beater cover outer LH

1шт.

9

163377C1

EXTENSION, beater cover outer RH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

22шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

22шт.

10

163370C1

BOTTOM, beater LH

4шт.

10

163371C1

BOTTOM, beater RH

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

40шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

40шт.

11

163366C11

ANGLE ASSY, beater bottom LH, 763CH serial no. 895 & below

4шт.

11

163367C11

ANGLE ASSY, beater bottom RH, 763CH serial no. 895 & below

4шт.

11

173267C1

ANGLE, beater bottom inner LH, 763CH serial no. 896 & above and 764CH serial no. 501 & above

4шт.

11

173268C1

ANGLE, beater bottom inner RH, 763CH serial no. 896 & above and 764CH serial no. 501 & above

4шт.

12

166567C1

SEAL

SEAL, ear corn saver

12шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

24шт.

120376

NUT,5/16"-18, G5

24шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

24шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

24шт.

13

163070C91

FITTING

PIPE ASSY, divider adj

7шт.

14

163072C1

BOLT (SPREADER),7/16" - 14 x 12"

BOLT, divider adj

7шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

7шт.

21213R1

WASHER

1-1/32 x 2 x 11 ga C-Z

7шт.

15

22147N

SPRING

divider adj bolt

7шт.

16

18344K

BOLT,3/8" - 16 x 2 1/8", Steel

U-BOLT, divider adj

5шт.

120377

NUT,3/8" - 16, Gr 5

20шт.

17

589510R92

DIVIDER ASSY.

DIVIDER ASSY, outer LH

1шт.

17

589511R92

DIVIDER ASSY.

DIVIDER ASSY, outer RH, includes ref. no. 18

1шт.

18686R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 2 1/4", Gr 2

BOLT, 3/8 x 2-1/4 znd sq-nk crg

4шт.

20582R1

BOLT, 1/2 x 6-1/2 znd sq-nk crg

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

19686R1

BOLT,Hex, 5/8"-11 x 7 1/2", G2

NUT, 1/2 znd nylon insert

2шт.

18484R1

BOLT,Short NK, 5/16"-18 x 2 3/4", G2

PIN, 3/16 x 1 C-Z cotter

2шт.

21659R1

PIN, 7/16 x 1-1/4 C-Z std-hd

2шт.

120697

SCREW, 1/4 x 3/4 C-Z slt-f-hd

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

18

U911

POINT, outer divider LH

1шт.

18

U912

END ASSY.

POINT, outer divider RH

1шт.

19

UB1526

POINT, inner divider lower

5шт.

18685R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8 x 1-1/2 znd sq-nk crg

20шт.

120377

NUT,3/8" - 16, Gr 5

20шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

20шт.

20

166723C91

SUPPORT ASSY, divider adj rod outer LH

1шт.

20

166724C91

SUPPORT ASSY, divider adj rod outer RH

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

6шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

21

167453C1

SUPPORT ASSY, inner gatherer front LH

5шт.

21

167454C1

SUPPORT ASSY, inner gatherer front RH

5шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

30шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

30шт.

22

163081C91

SUPPORT ASSY, divider outer LH

1шт.

22

163082C91

SUPPORT ASSY, divider outer RH

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

8шт.

271501

SOCKET

NUT, 7/16 C-Z hex

8шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

8шт.

23

163083C91

SUPPORT ASSY, divider inner LH

5шт.

23

163084C91

SUPPORT ASSY, divider inner RH

5шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

40шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

40шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

40шт.

24

162749C1

FILLER, beater bottom, 763CH serial no. 895 & below

4шт.

24

173270C1

FILLER, beater top, 763CH serial no. 896 and above

4шт.

24

173269C1

FILLER, beater top, 764CH

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange whiz lock

20шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

20шт.

25

167900C1

FILLER, beater side inner RH, for CH w/28 or 36 inch rows

1шт.

25

167901C1

FILLER, beater side inner LH, for CH w/28 or 36 inch rows

1шт.

25

167900C1

FILLER, beater side outer LH, for CH w/30 or 38 inch rows

1шт.

25

167901C1

FILLER, beater side outer RH, for CH w/30 or 38 inch rows

1шт.

25

167904C1

FILLER, beater side outer LH, for CH w/28 or 36 inch rows

1шт.

25

167905C1

FILLER, beater side outer RH, for CH w/28 or 36 inch rows

1шт.

25

166097C1

FILLER, beater side inner RH, for CH w/30 or 38 inch rows

1шт.

25

166098C1

FILLER, beater side inner LH, for CH w/30 or 38 inch rows

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

1шт.

26

162836C11

FILLER ASSY, inner gatherer shield top, 763 corn head

4шт.

26

162840C11

FILLER ASSY, inner gatherer shield top, 764 corn head

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange whiz lock

64шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

64шт.

27

168279C1

BRACKET, gath. shield outer rear adj. filler, 763CH w/28 inch rows serial no. 895 and below

2шт.

27

167005C1

BRACKET, gath. shield outer rear adj. filler, 763CH w/30 inch rows serial no. 895 and below

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

28

168277C1

BRACKET, gatherer shield outer rear filler LH, 763CH w/28 inch rows serial no. 895 and below

1шт.

28

168278C1

BRACKET, gatherer shield outer rear filler RH, 763CH w/28 inch rows serial no. 895 and below

1шт.

28

167006C1

BRACKET, gatherer shield outer rear filler LH, 763CH w/30 inch rows serial no. 895 and below

1шт.

28

167007C1

BRACKET, gatherer shield outer rear filler RH, 763CH w/30 inch rows serial no. 895 and below

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

29

168584C11

DEFLECTOR ASSY, center gatherer shield, parts accessories

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

3шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

3шт.

30

162783C91

COVER ASSY, beater LH, 763CH

1шт.

30

173981C1

COVER ASSY, beater LH, 764CH

1шт.

30

162784C91

COVER ASSY, beater RH, 763CH

1шт.

30

173982C1

COVER ASSY, beater RH, 764CH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

12шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

12шт.

31

166203C1

REINFORCEMENT, beater cover, 763CH

2шт.

31

173985C1

REINFORCEMENT, beater cover, 764CH

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange whiz lock

14шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

14шт.

32

168207C1

BOTTOM, beater inner RH, for CH w/28 or 36 inch rows

1шт.

32

168208C1

BOTTOM, beater inner LH, for CH w/28 or 36 inch rows

1шт.

32

170001C1

BOTTOM ASSY, beater inner LH, for CH w/30 or 38 inch rows

1шт.

32

170000C1

BOTTOM ASSY, beater inner RH, for CH w/30 or 38 inch rows

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

1шт.

33

168462C1

BOTTOM ASSY, beater outer LH, for CH w/28 or 36 inch rows

1шт.

33

168463C1

BOTTOM ASSY, beater outer RH, for CH w/28 or 36 inch rows

1шт.

33

168207C1

BOTTOM ASSY, beater outer LH, for CH w/30 or 38 inch rows

1шт.

33

168208C1

BOTTOM ASSY, beater outer RH, for CH w/30 or 38 inch rows

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

1шт.

34

166733C91

DIVIDER ASSY, center LH, 763CH

5шт.

34

166727C91

DIVIDER ASSY, center LH, 764CH

5шт.

17148R1

BOLT,Short NK, 1/2"-13 x 2 1/4", G2

1/2 x 2-1/4 znd sq-nk crg

5шт.

19696R1

LOCK NUT,1/2"-13, GB

NUT, 1/2 C-Z nylon insert

5шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

25шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

25шт.

35

166734C91

DIVIDER ASSY, center RH, 763CH

5шт.

35

166728C91

DIVIDER ASSY, center RH, 764CH

5шт.

17148R1

BOLT,Short NK, 1/2"-13 x 2 1/4", G2

1/2 x 2-1/4 znd sq-nk crg

5шт.

19696R1

LOCK NUT,1/2"-13, GB

NUT, 1/2 C-Z nylon insert

5шт.

36

163042C1

BRACE, center divider adj bolt, 763 corn head

5шт.

36

163043C1

BRACE, center divider adj bolt, 764 corn head

5шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

10шт.

120377

NUT,3/8" - 16, Gr 5

10шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

10шт.

37

167452C1

SUPPORT, divider adj rod inner, 763 corn head

5шт.

37

166722C1

SUPPORT, divider adj rod inner, 764 corn head

5шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange whiz lock

10шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

10шт.

38

162829C1

FILLER, inner gatherer shield center top, 763CH

1шт.

38

162834C1

FILLER, inner gatherer shield center top, 764CH

1шт.

638017R1

NUT, 5/16 C-Z flange whiz lock

18шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

18шт.

39

173283C1

BRACKET, gatherer shield outer rear support LH, 763CH w/30 inch rows serial no. 896 and above and 764 w/38 inch rows

1шт.

39

173284C1

BRACKET, gatherer shield outer rear support RH, 763CH w/30 inch rows serial no. 896 and above and 764CH w/38 inch rows

1шт.

40

173299C1

BRACKET, gatherer shield outer rear support LH, 763CH w/28 inch rows serial no. 896 and above and 764CH w/36 inch rows

1шт.

40

173300C1

BRACKET, gatherer shield outer rear support RH, 763CH w/28 inch rows serial no. 896 and above and 764CH w/36 inch rows

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.
