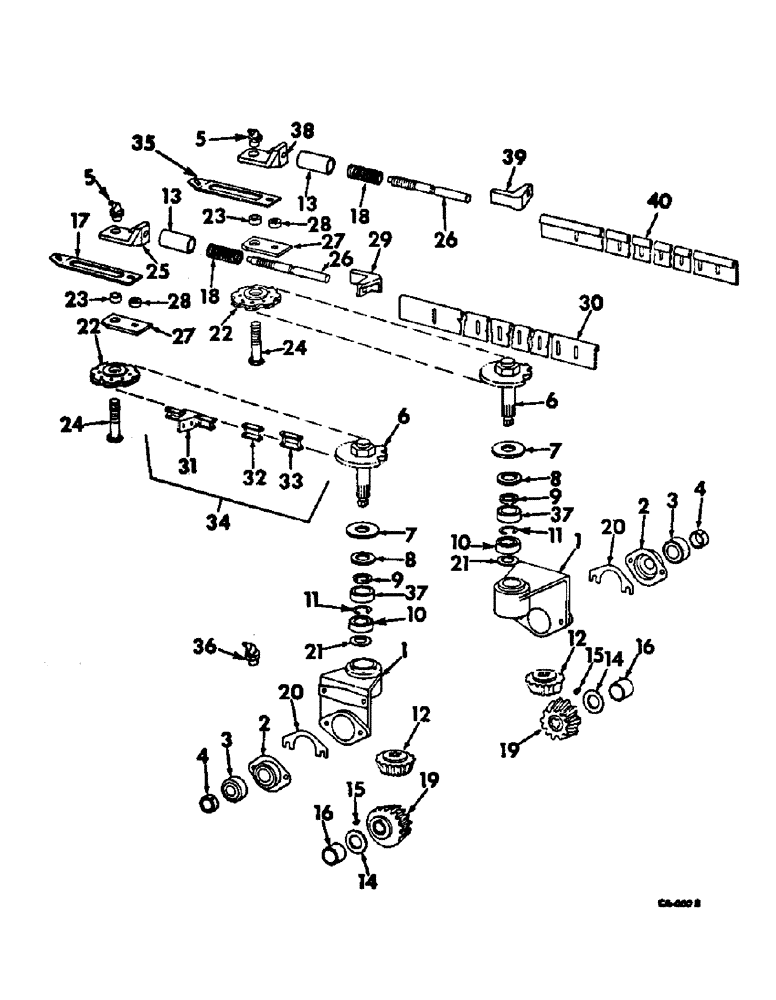

Запчасти Case IH 763 (N-26) - GATHERER (58) - ATTACHMENTS/HEADERS

1

162512C2

HOUSING, gatherer drive inner brg

12шт.

180145

BOLT,Hex, 7/16" - 14 x 1", Gr 5

SCREW, 7/16 x 1 znd hex-hd cap

24шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

24шт.

2

162513C91

BEARING HOUSING

HOUSING ASSY, gatherer drive outer brg, includes ref nos. 3 and 4

12шт.

180151

BOLT,Hex, 7/16" - 14 x 1 3/4", Gr 5

SCREW, 7/16 x 1-3/4 hex-hd cap

24шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

24шт.

3

939475R91

BEARING

ASSY, gatherer drv shft ball

12шт.

4

557115R11

COLLAR

COLLAR W/SET SCREW, lkg

12шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16 hex-soc hd pt

12шт.

5

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING, 1/4-28NS 45 deg lube

12шт.

6

166144C93

SPROCKET ASSY.

SPROCKET ASSY, gatherer chain drive

12шт.

18536R1

LOCK NUT,5/8"-18, G5

NUT, 5/8-18 UNF C-Z hex nylon insert

12шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga

12шт.

7

156827C1

WASHER

gatherer drive shaft cup

12шт.

8

156828C1

WASHER

gatherer drive shaft

12шт.

9

156829C1

WASHER

gatherer drive brg

24шт.

10

618210R91

BEARING

ASSY, gatherer shaft lower

12шт.

11

641207R1

SNAP RING,2.44", Int, #244

Ring, Snap, , gatherer drive inner brg 2.44", Int, #244

12шт.

12

156831C1

GEAR

gatherer driven bevel

12шт.

13

162509C1

SPACER, gatherer chain spring, 763CH serial no. 685 & below

12шт.

13

171834C1

SPACER

gatherer chain spring, 763CH serial no. 686 & above and 764CH

12шт.

14

156394C1

WASHER, gatherer drive

20шт.

15

88745

WOODRUFF KEY,#28, 5/16" x 2 1/8", HT

KEY, 5/16 x 2-1/8 Woodruff

12шт.

16

162510C1

SPACER,1 3/8" Tube x 7/8"

gatherer drive shaft

12шт.

17

168395C1

STRAP, inner gatherer sprocket wear LH

6шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

18

VC682

VALVE SPRING

SPRING, gath. idler sprocket adj., 763CH serial no. 685 & below

12шт.

18

303353R1

SPRING

gath. idler sprocket adj., 763CH serial no. 686 & above and 764CH

12шт.

19

156393C1

GEAR

gatherer drive bevel

12шт.

20

155281C1

SHIM

gatherer drive bevel gear

36шт.

21

156830C1

WASHER

gatherer drive

36шт.

22

155915C91

DRIVE SPROCKET

SPROCKET ASSY, gatherer idler

12шт.

23

154984C1

BUSHING

gatherer idler sprocket

12шт.

24

654456R1

BOLT (SPREADER),Hex, 3/4" - 10 x 3 1/4"

BOLT, gatherer idler sprocket

12шт.

280954

NUT,3/4"-10, G5

12шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

12шт.

477243R1

WASHER,25/32" x 2" x .060"

25/32 x 2 x 16 ga C-Z

24шт.

619505R1

WASHER

25/32 x 2 x 11 ga

24шт.

25

168403C1

BRACKET, gatherer idler LH

6шт.

26

162508C1

STUD, gatherer idler adj

12шт.

606546R1

JAM NUT

5/8 C-Z center lock hex

12шт.

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

12шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga C-Z

24шт.

27

168401C1

BAR, gatherer idler

12шт.

18696R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/2", Gr 2

BOLT, 7/16 x 1-1/4 sq-nk crg

12шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 C-Z hex

12шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

12шт.

28

168402C1

BUSHING, gatherer idler

12шт.

29

162500C1

GUIDE, gatherer chain left

6шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

30

166140C1

GUIDE, gatherer chain hold down left

6шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

42шт.

120376

NUT,5/16"-18, G5

42шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

42шт.

21496R1

WASHER

11/32 x 3/4 x 11 ga C-Z

42шт.

31

935619R91

GATHERING CHAIN

CONVEYOR ASSY, gatherer section

1шт.

32

587371R93

DRAG LINK

LINK, connecting

1шт.

33

450423R1

DRAG LINK

LINK, gatherer roller chain

1шт.

34

654164R91

CHAIN (AG)

CONVEYOR ASSY, gatherer, includes ref nos. 31, 32 and 33

12шт.

35

168396C1

STRAP, inner gatherer sprocket wear RH

6шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

36

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING, 1/4-28 NS 45 deg lube, 763CH S/N 686 & above and 764CH

12шт.

37

618210R91

BEARING

ASSY, gath. shaft inner upper, 763CH serial no. 685 & below

12шт.

37

171879C91

BEARING

ASSY, gath. shaft inner upper, 763CH serial no. 686 & above and 764CH

12шт.

38

168404C1

BRACKET, gatherer idler RH

6шт.

39

162501C1

GUIDE, gatherer chain right

6шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

40

166141C1

GUIDE, gatherer chain hold down right

6шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

42шт.

120376

NUT,5/16"-18, G5

42шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

42шт.

21496R1

WASHER

11/32 x 3/4 x 11 ga C-Z

42шт.
