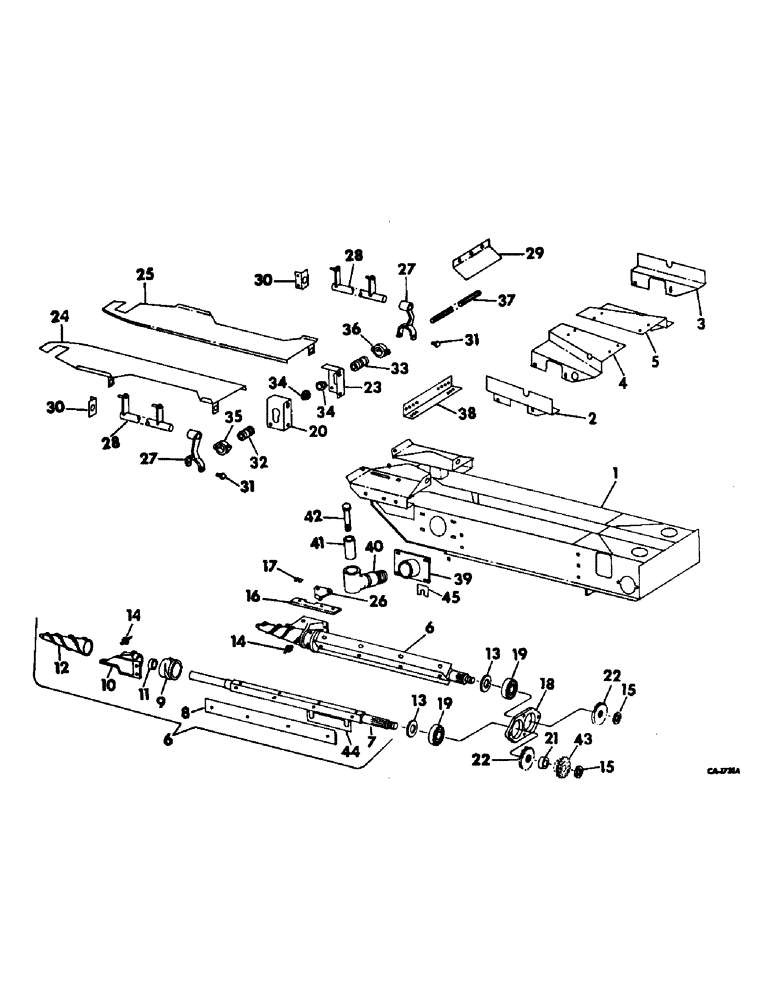

Запчасти Case IH 763 (N-20) - STALK ROLL FRAME, ROLLS, AND CONTROL, SERIAL NO. 896 & ABOVE AND 764CH (58) - ATTACHMENTS/HEADERS

1

173999C1

FRAME ASSY, stalk roll

6шт.

18695R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2

BOLT, 7/16 x 1-1/4 sq-nk crg

24шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

24шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

24шт.

2

168490C2

SHIELD, stalk roll frame LH outer

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

3

168491C2

SHIELD, stalk roll frame RH outer

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

4

173392C1

SHIELD, stalk roll frame LH inner

4шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

5

173393C1

SHIELD, stalk roll frame RH inner

4шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

6

173687C62

ROLL ASSY, left driver stalk

3шт.

6

173689C92

ROLL ASSY, right driver stalk

3шт.

6

173690C92

ROLL ASSY, left driven stalk

3шт.

6

173688C92

ROLL ASSY, right driven stalk, includes ref nos. 7 thru 12, 14 and 44

3шт.

7

175232C91

SHAFT ASSY, stalk roll left driver

3шт.

7

175233C91

SHAFT ASSY, stalk roll right driver

3шт.

7

175234C91

SHAFT ASSY, stalk roll left driven

3шт.

7

175235C91

SHAFT ASSY, stalk roll right driven, includes ref no. 9

3шт.

19638R1

LOCK NUT,3/4"-16, GB

NUT, 3/4 znp nylon insert hex

12шт.

178139

WASHER, 1-3/16 C-Z med lock

12шт.

8

173375C1

KNIFE SECTION

SECTION, stalk roll knife no. 1, 2 used on each roll assy

24шт.

8

173376C1

KNIFE SECTION

SECTION, stalk roll knife no. 2, 2 used on each roll assy

24шт.

181694

BOLT,Hex, 1/2" - 20 x 7/8"

SCREW, 1/2 x 7/8 hex-hd cap

192шт.

138549

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

192шт.

9

173693C1

SECTION, roll center LH, RH spiral

6шт.

9

173694C1

SECTION, roll center RH, LH spiral, 763CH serial no. 1065 and below, 764CH serial no. 510 and below

6шт.

173704C1

PIN

5/16 x 2-3/8 groove

12шт.

9

175236C1

SECTION, roll center LH, RH spiral

6шт.

9

175237C1

SECTION, roll center RH, LH spiral, 763CH serial no. 1066 and above, 764CH serial no. 511 and above

6шт.

175238C1

PIN, 3/8 x 2-3/4 hardened

12шт.

10

173695C91

SUPPORT

W/BUSHING, stalk roll LH

6шт.

10

173696C91

SUPPORT W/BUSHING, stalk roll RH, includes ref nos. 11 and 14

6шт.

11

173699C1

BUSHING,25.6mm ID x 33.4mm OD x 56.9mm L

stalk roll support

12шт.

12

173700C1

POINT, stalk roll front LH spiral

6шт.

12

173701C1

POINT, stalk roll front RH spiral

6шт.

173703C1

PIN

5/16 x 2-1/4 groove

6шт.

173702C1

PIN

5/16 x 1-3/4 groove

6шт.

13

654297R1

WASHER

stalk roll shaft

12шт.

14

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , NPT 1/8"-27 x .66 lg

12шт.

15

584253R1

WASHER

25/32 x 1-3/4 x 3/16

12шт.

16

162600C1

KNIFE

weed front LH

6шт.

16

162601C1

KNIFE

weed front RH

6шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 C-Z hex-hd cap

36шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

36шт.

17

589713R1

SHIM

WASHER, weed knife shim

1шт.

18

153748C11

HOUSING W/BEARING, stalk roll, includes ref no. 19

6шт.

18695R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2

BOLT, 7/16 x 1-1/4 sq-nk crg

24шт.

271501

SOCKET

NUT, 7/16 C-Z hex

24шт.

131718

SHIM

7/16 C-Z int-tooth lock

24шт.

19

173735C91

BEARING ASSY

stalk roll housing ball

12шт.

20

162878C1

BRACKET, stalk roll shield adj screw LH

6шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

12шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

12шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

12шт.

21

589696R1

BUSHING

SPACER, stalk roll driven sprocket

6шт.

22

580849R1

PINION

GEAR, stalk roll drive 20T

12шт.

23

162879C1

BRACKET, stalk roll shield adj screw RH

6шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

12шт.

271501

SOCKET

NUT, 7/16 C-Z hex

12шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

12шт.

24

162886C93

SHIELD ASSY, stalk roll LH

6шт.

25

162887C93

SHIELD ASSY, stalk roll RH

6шт.

26

170376C1

SHIELD

stalk roll point LH

6шт.

26

170377C1

SHIELD

stalk roll point RH

6шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

24шт.

120377

NUT,3/8" - 16, Gr 5

24шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

24шт.

27

156706C1

ARM, stalk roll shield adj lower

12шт.

125637

COTTER PIN,1/8" x 2"

PIN, SPLIT (COTTER), 1/8" x 2"

12шт.

576483R1

LOCK PIN,5/16" x 1 1/2", Slotted

Pin, 5/16" x 1 1/2", Slotted

12шт.

16543R1

WASHER, 5/32 x 7/16 x 18 ga C-Z

24шт.

28

166151C91

ARM ASSY, stalk roll shield control

12шт.

29

166154C2

SHIELD, stalk roll adj rod

6шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

18шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

18шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

18шт.

30

156719C1

ANGLE, stalk roll shield control tube

24шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

48шт.

120377

NUT,3/8" - 16, Gr 5

48шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

48шт.

31

589457R1

SCREW, stalk roll shield adj nut

24шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

24шт.

32

156708C2

SCREW, stalk roll shield adj left

6шт.

33

156709C2

SCREW, stalk roll shield adj right

6шт.

34

M5895

COLLAR, stalk roll shield adj rod

4шт.

125843

SET SCREW,Hex Skt, 3/8"-16 x 3/8"

SCREW, 3/8 x 3/8 C-Z hex-soc-hd cup

4шт.

35

935560R1

NUT, stalk roll shield adj left

6шт.

36

935561R1

NUT, stalk roll shield adj right

6шт.

37

154246C1

ROD, stalk roll shield adj, 763CH

2шт.

37

173799C1

ROD, stalk roll shield adj, 764CH

2шт.

38

162826C1

ANGLE, stalk roll frame tie center, 763 corn head

5шт.

38

162828C1

ANGLE, stalk roll frame tie center, 764 corn head

5шт.

18794R1

BOLT,Hex, 7/16" - 14 x 1", Gr 2

7/16 x 1 C-Z hex-hd mach

20шт.

271501

SOCKET

NUT, 7/16-14 C-Z hex

20шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

20шт.

39

162871C91

HUB ASSY, stalk roll support

12шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

48шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

48шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

48шт.

40

162876C2

ANCHOR, stalk roll support

12шт.

102609R1

LOCK NUT,3/4"-16

NUT, 3/4-16 znd nylon insert hex

12шт.

22241R1

WASHER

1-3/32 x 1-3/4 x 16 ga C-Z

1шт.

21713R1

WASHER,25/32" x 1 3/4" x .120"

25/32 x 1-3/4 x 11 ga C-Z

12шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

12шт.

41

158783C1

BUSHING

stalk roll support

12шт.

42

161160C1

BOLT,Hex, 1/2" - 20 x 4", Drilled

stalk roll support

12шт.

120371

NUT,1/2"-20, G5

12шт.

121224

SUPPORT

3/32" x 1"

12шт.

138549

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

12шт.

43

SPROCKET, stalk roll driven 15T, refer to stalk roll drive unit for listing

6шт.

44

174443C1

SHIM, stalk roll knife .105

1шт.

44

175312C1

SHIM

stalk roll knife .060

1шт.

45

175273C1

SHIM

lower stalk roll

1шт.
