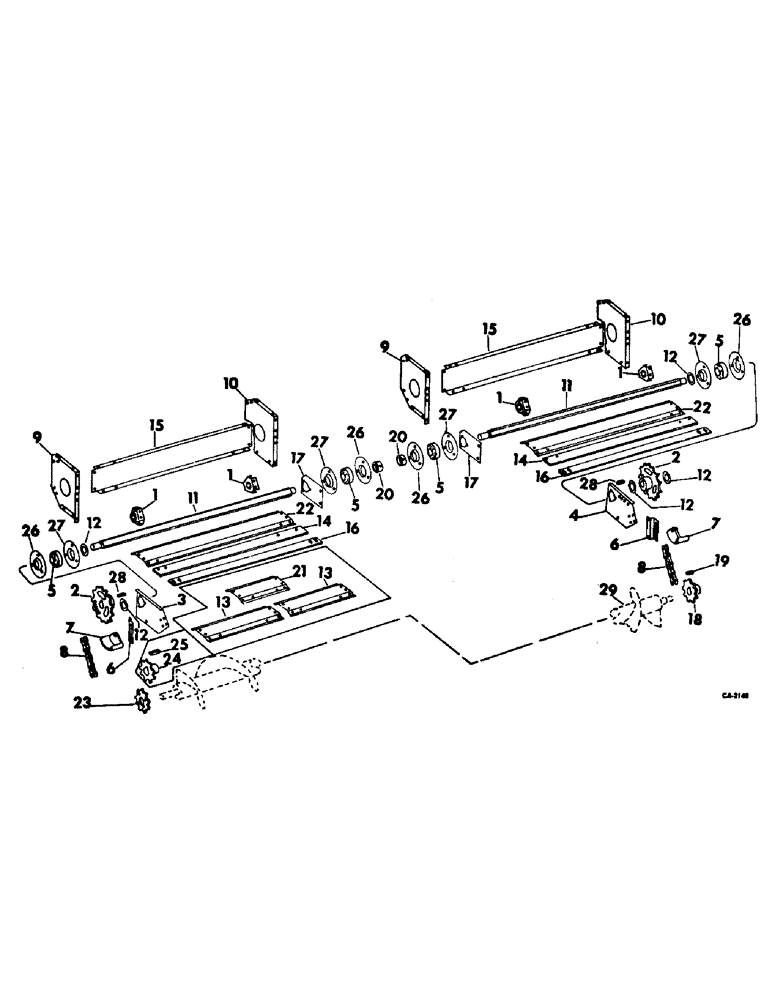

Запчасти Case IH 763 (N-11) - BEATER AND BEATER DRIVE (58) - ATTACHMENTS/HEADERS

1

166390C1

SUPPORT, beater section

1шт.

168102C1

PIN

5/16 x 2 type 1 groove

1шт.

2

162949C1

SPROCKET, beater driven

2шт.

3

163037C1

BRACKET, beater brg outer LH

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

5шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

3шт.

120377

NUT,3/8" - 16, Gr 5

5шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

3шт.

4

163038C1

BRACKET, beater brg outer RH

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

5шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

3шт.

120377

NUT,3/8" - 16, Gr 5

5шт.

271501

SOCKET

NUT, 7/16 C-Z hex

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

3шт.

5

939475R91

BEARING

ASSY, beater shaft ball

4шт.

6

632194R1

BRACKET, beater chain tightener

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

7

583619R1

BLOCK

beater chain tightener LH

1шт.

7

583620R1

BLOCK

beater chain tightener RH

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

8

CHAIN ASSY, beater drive roller, use 45 links from 10 ft roll marked 569089R91, 1 offset link 456929R91 & 1 connecting link 587372R91

2шт.

9

162779C1

SIDE, beater LH

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

14шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

6шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

8шт.

10

162780C1

SIDE, beater RH

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

14шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

6шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

8шт.

11

166404C1

SHAFT, beater, 763CH

2шт.

11

173959C1

SHAFT, beater, 764CH

2шт.

125267

NUT

5/8-18 C-Z slt-hex

2шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

2шт.

131049

HYD CONNECTOR

1-1/8 C-Z med lock

2шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga C-Z

2шт.

12

472323R1

WASHER

beater shaft

8шт.

13

166400C1

SECTION, beater, 763CH serial no. 685 & below

12шт.

181595

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

SCREW, 5/16 x 3/4 hex-hd cap

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

1шт.

14

166389C1

BAT, beater drum, 763CH

6шт.

14

173961C1

BAT, beater drum, 764CH

6шт.

18475R1

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 2

5/16 x 1-1/4 hex-hd mach

60шт.

9411638

LOCK NUT,5/16"-18, GA

NUT, 5/16 C-Z hex lock

60шт.

15

166409C1

SHIELD, beater LH, 763CH

1шт.

15

173762C1

SHIELD, beater LH, 764CH

1шт.

15

166410C1

SHIELD, beater RH, 763CH

1шт.

15

173763C1

SHIELD, beater RH, 764CH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

8шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

8шт.

16

168231C1

STRIP, beater stripper, 763CH

2шт.

16

173993C1

STRIP, beater stripper, 764CH

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

1шт.

17

162867C1

BRACKET, beater brg inner

2шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 C-Z sq-nk crg

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

18

166212C91

SPROCKET ASSY, beater drive right 11T

1шт.

19

587016R1

KEY, 1/4 x 3/4 sq-parallel

1шт.

20

557115R11

COLLAR

COLLAR W/SET SCREW, lkg

2шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16 hex-soc-hd cup-pt

2шт.

21

939090R1

REINFORCEMENT, beater section, 763CH serial no. 685 & below

6шт.

22

169057C1

SECTION, beater, 763CH serial no. 686 & above

6шт.

22

173960C1

SECTION, beater, 764CH

6шт.

181595

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

SCREW, 5/16 x 3/4 hex-hd cap

36шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

36шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

36шт.

23

174720C1

SPROCKET, beater drive left 11T, 763CH serial no. 1216 and above, 764CH serial no. 526 and above

1шт.

18766R1

BOLT,Hex, 5/16"-18 x 1 3/4", G2

5/16 x 1-3/4 hex-hd mach

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

24

166213C91

SPROCKET ASSY, beater drive left 11T, 763CH serial no. 1215 and below, 764CH serial no. 525 and below

1шт.

25

577147R1

KEY

5/16 x 1-3/4 sq-parallel, 763CH serial no. 1215 and below, 764CH serial no. 525 and below

1шт.

26

939460R91

FLANGE

ASSY, beater bearing

4шт.

27

939461R1

FLANGE

beater bearing

4шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

12шт.

120376

NUT,5/16"-18, G5

12шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

28

577147R1

KEY

5/16 x 1-3/4 sq-parallel

2шт.

29

AUGER ASSY, refer to auger, doors and shields unit for listing

1шт.
