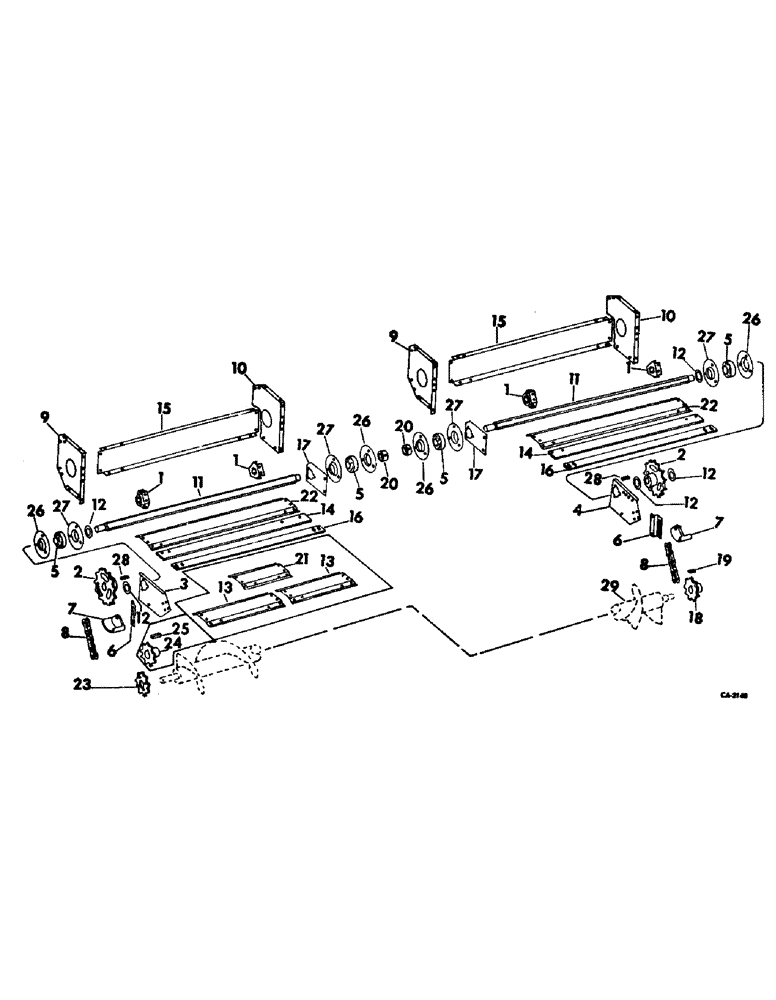

Запчасти Case IH 762 (Q-10) - BEATER AND BEATER DRIVE (58) - ATTACHMENTS/HEADERS

1

166390C1

SUPPORT, beater section

4шт.

168102C1

PIN

5/16 x 2 type 1 groove

4шт.

2

162949C1

SPROCKET, beater driven

2шт.

3

163037C1

BRACKET, beater brg outer LH

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

5шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

3шт.

120377

NUT,3/8" - 16, Gr 5

5шт.

271501

SOCKET

NUT, 7/16 C-Z hex

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

3шт.

4

163038C1

BRACKET, beater brg outer RH

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

5шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

3шт.

120377

NUT,3/8" - 16, Gr 5

5шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

3шт.

5

939475R91

BEARING

ASSY, beater shaft ball

4шт.

6

632194R1

BRACKET, beater chain tightener

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

7

583619R1

BLOCK

beater chain tightener LH

1шт.

7

583620R1

BLOCK

beater chain tightener RH

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

8

CHAIN ASSY, beater drive roller, use 45 links from 10 ft roll marked 569089R91, 1 offset link 456929R91 & 1 connecting link 587372R91

2шт.

9

162779C1

SIDE, beater LH

1шт.

9

168405C1

SIDE ASSY, beater LH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

13шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

9шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

4шт.

10

162780C1

SIDE, beater RH

1шт.

10

168406C1

SIDE ASSY, beater RH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

13шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

9шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

4шт.

11

168154C1

SHAFT, beater

2шт.

NLS

NO LONGER SERVICED

5/8-18 C-Z slt-hex

2шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

2шт.

492-11112

LOCK WASHER,1 1/8"

1-1/8 C-Z med lock

2шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga C-Z

2шт.

12

472323R1

WASHER

beater shaft

8шт.

13

NOT USED IN THIS APPLICATION

1шт.

14

166382C1

BAT, beater drum

6шт.

18475R1

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 2

5/16 x 3/4 hex-hd mach

48шт.

9411638

LOCK NUT,5/16"-18, GA

NUT, 5/16 C-Z hex lock

48шт.

15

166397C1

SHIELD, beater

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

8шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

8шт.

16

168231C1

STRIP, beater stripper, optional

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

12шт.

120376

NUT,5/16"-18, G5

12шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

12шт.

17

162867C1

BRACKET, beater brg inner

2шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 C-Z sq-nk crg

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

18

166212C91

SPROCKET ASSY, beater drive right 11T

1шт.

19

587016R1

KEY, 1/4 x 3/4 sq-parallel

1шт.

20

557115R11

COLLAR

COLLAR W/SET SCREW, lkg

2шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16 hex-soc-hd cup-pt

2шт.

21

NOT USED IN THIS APPLICATION

1шт.

22

166391C1

SECTION, beater

6шт.

181595

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

SCREW, 5/16 x 3/4 hex-hd cap

24шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

24шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

24шт.

23

174720C1

SPROCKET, beater drive LH 11T, serial no. 510 and above

1шт.

18766R1

BOLT,Hex, 5/16"-18 x 1 3/4", G2

5/16 x 1-3/4 hex-hd mach

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

24

166213C91

SPROCKET ASSY, beater drive left 11T, serial no. 509 and below

1шт.

25

577147R1

KEY

5/16 x 1-3/4 sq-parallel, serial no. 509 and below

1шт.

26

939460R91

FLANGE

ASSY, beater bearing

4шт.

27

939461R1

FLANGE

beater bearing

4шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

12шт.

120376

NUT,5/16"-18, G5

12шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

28

577147R1

KEY

5/16 x 1-3/4 sq-parallel

2шт.

29

AUGER, refer to auger, doors, and shields unit for listing

1шт.
