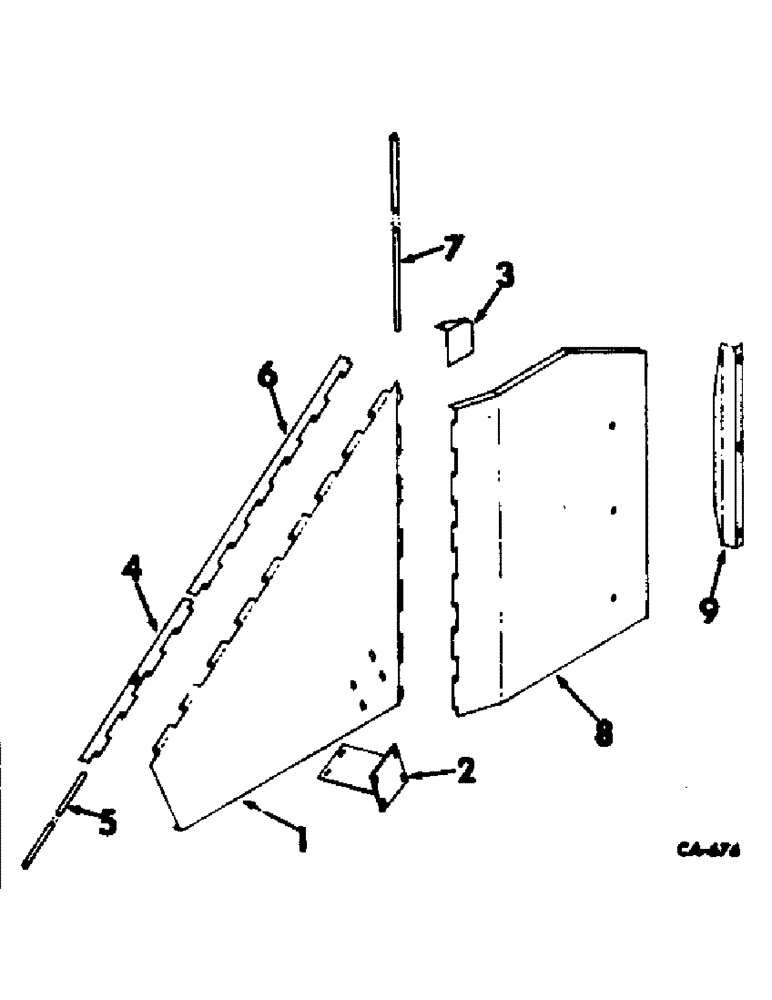

Запчасти Case IH 762 (Q-34) - WHEEL SHIELDS (58) - ATTACHMENTS/HEADERS
№
Артикул
Название
Примечание
Количество
1
166760C91
SHIELD ASSY, wheel LH
1шт.
1
166761C91
SHIELD ASSY, wheel RH
1шт.
18508R1
CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd
BOLT, 3/8 x 3/4 C-Z sq-nk crg
8шт.
120377
NUT,3/8" - 16, Gr 5
8шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
8шт.
2
161051C92
SUPPORT ASSY, wheel shield
2шт.
18508R1
CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd
BOLT, 3/8 x 3/4 C-Z sq-nk crg
8шт.
18421R1
CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2
BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd
4шт.
120377
NUT,3/8" - 16, Gr 5
8шт.
271501
SOCKET
NUT, 7/16 C-Z hex
4шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
8шт.
120383
LOCK WASHER,Helical Spring, 7/16"
WASHER, LOCK, 7/16"
4шт.
3
168393C1
BRACKET, wheel shield outer rear LH
1шт.
3
168394C1
BRACKET, wheel shield outer rear RH
1шт.
4
166757C1
HINGE, wheel shield front LH
1шт.
4
166758C1
HINGE, wheel shield front RH
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z flange whiz lock
10шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 C-Z slt-truss-hd
10шт.
5
569885R1
ROD, wheel shield
2шт.
6
156752C1
HINGE, wheel shield rear LH
1шт.
6
156753C1
HINGE, wheel shield rear RH
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z whiz lock
12шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 C-Z slt-truss-hd
12шт.
7
588209R1
ROD, rear wheel shield hinge
2шт.
8
166764C91
SHIELD ASSY, wheel rear LH
1шт.
8
166765C91
SHIELD ASSY, wheel rear RH
1шт.
475954R1
NUT
3/8 C-Z whiz lock
6шт.
9
166759C1
SUPPORT, wheel rear shield
2шт.
18508R1
CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd
BOLT, 3/8 x 3/4 C-Z sq-nk crg
4шт.
120377
NUT,3/8" - 16, Gr 5
4шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
4шт.
Выбрано товаров: 32
