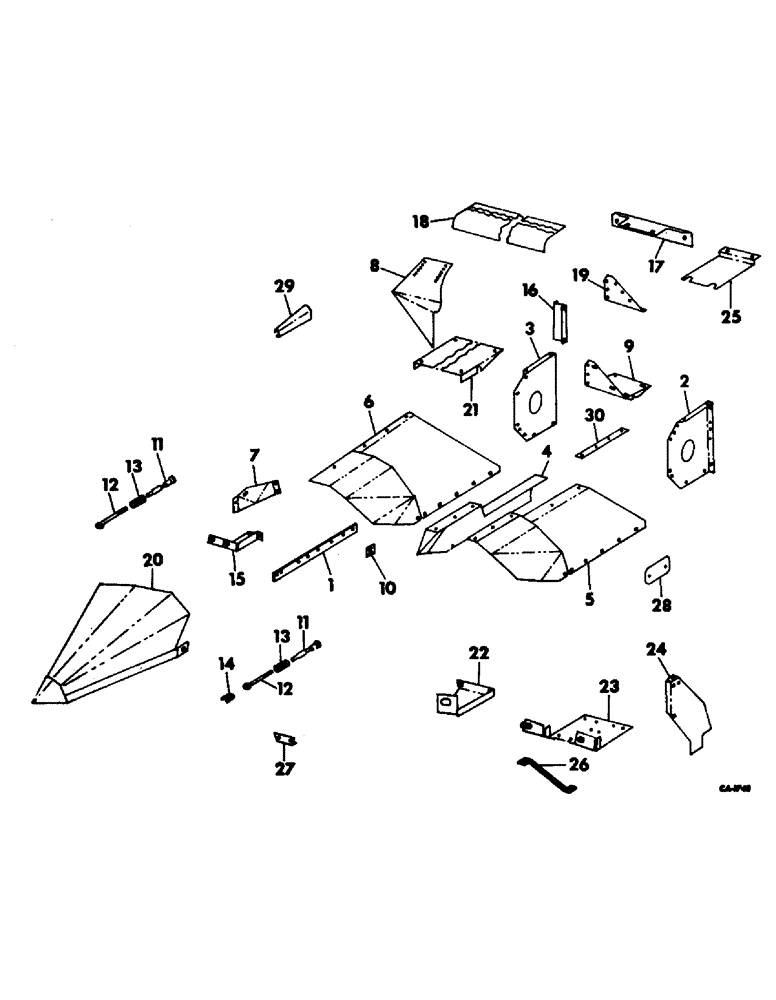

Запчасти Case IH 762 (Q-26) - GATHERER SHIELDS AND DIVIDERS (58) - ATTACHMENTS/HEADERS

1

162770C91

SUPPORT ASSY, gatherer shield LH

6шт.

1

162771C91

SUPPORT ASSY, gatherer shield RH

6шт.

18695R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2

BOLT, 7/16 x 1-1/4 C-Z sq-nk crg

12шт.

271501

SOCKET

NUT, 7/16 C-Z hex

12шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

12шт.

2

168405C1

SIDE ASSY, beater LH

1шт.

2

162779C1

SIDE, beater LH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

13шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

9шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

4шт.

3

168406C1

SIDE ASSY, beater RH

1шт.

3

162780C1

SIDE, beater RH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

13шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

9шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

4шт.

4

162937C91

SHIELD ASSY, inner gatherer LH

5шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

20шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

20шт.

5

162938C91

SHIELD ASSY, inner gatherer RH

5шт.

6

162943C91

SHIELD ASSY, outer gatherer LH

1шт.

6

162944C91

SHIELD ASSY, outer gatherer RH

1шт.

7

162935C1

REINFORCEMENT, divider hinge LH

6шт.

7

162936C1

REINFORCEMENT, divider hinge RH

6шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

12шт.

120377

NUT,3/8" - 16, Gr 5

12шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

12шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

12шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

12шт.

8

166583C1

EXTENSION, beater cover inner LH

1шт.

8

166584C1

EXTENSION, beater cover inner RH

1шт.

8

166585C11

EXTENSION ASSY, beater cover outer LH

1шт.

8

166586C11

EXTENSION ASSY, beater cover outer RH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

18шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

18шт.

9

166576C1

BOTTOM, beater LH

2шт.

9

166577C1

BOTTOM, beater RH

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

8шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

8шт.

10

166567C1

SEAL

SEAL, ear corn saver

12шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

24шт.

120376

NUT,5/16"-18, G5

24шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

24шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

24шт.

11

163070C91

FITTING

PIPE ASSY, divider adj

7шт.

12

168836C1

BOLT, divider adj

7шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

7шт.

21213R1

WASHER

1-1/32 x 2 x 11 ga C-Z

7шт.

13

22147N

SPRING

divider adj bolt

7шт.

14

18344K

BOLT,3/8" - 16 x 2 1/8", Steel

U-BOLT, divider adj

5шт.

120377

NUT,3/8" - 16, Gr 5

20шт.

15

163081C91

SUPPORT ASSY, divider outer LH

1шт.

15

163082C91

SUPPORT ASSY, divider outer RH

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

8шт.

271501

SOCKET

NUT, 7/16 C-Z hex

8шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

8шт.

16

162775C1

FILLER, beater side LH

2шт.

16

162776C1

FILLER, beater side RH

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

16шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

16шт.

17

168206C11

ANGLE ASSY, beater bottom

4шт.

18

166589C91

COVER ASSY, beater

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

8шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

8шт.

19

166579C11

EXTENSION ASSY, beater bottom

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange whiz lock

24шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

24шт.

20

163056C91

DIVIDER ASSY, center

5шт.

20

163045C91

DIVIDER ASSY, outer LH

1шт.

20

163046C91

DIVIDER ASSY, outer RH

1шт.

17148R1

BOLT,Short NK, 1/2"-13 x 2 1/4", G2

1/2 x 2-1/4 znd sq-nk crg

10шт.

20582R1

BOLT, 1/2 x 6-1/2 znd sq-nk crg

2шт.

19696R1

LOCK NUT,1/2"-13, GB

NUT, 1/2 C-Z nylon insert

10шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

2шт.

21659R1

PIN, 7/16 x 1-1/4 C-Z std-hd

2шт.

21

166581C1

BOTTOM, beater center

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange whiz lock

20шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

20шт.

22

163062C91

SUPPORT ASSY, inner divider adj rear

5шт.

22

163066C91

SUPPORT ASSY, outer divider adj rear LH

1шт.

22

163067C91

SUPPORT ASSY, outer divider adj rear RH

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

12шт.

120376

NUT,5/16"-18, G5

12шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

23

163078C91

SUPPORT ASSY, divider hinge inner

5шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

40шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

40шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

40шт.

24

166582C1

SUPPORT, inner gatherer shield front

5шт.

24

162795C1

SUPPORT, outer gatherer shield frt LH

1шт.

24

162796C1

SUPPORT, outer gatherer shield frt RH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange whiz lock

7шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

7шт.

25

161066C1

EXTENSION, beater cover inner rear

1шт.

26

162797C1

BRACE, gatherer shield outer

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

2шт.

18695R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2

BOLT, 7/16 x 1-1/4 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

271501

SOCKET

NUT, 7/16 C-Z hex

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

27

163041C2

BRACE, center divider

5шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

10шт.

120377

NUT,3/8" - 16, Gr 5

10шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

10шт.

28

166575C1

DOOR, inner gatherer shield

10шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

20шт.

29

168584C11

DEFLECTOR ASSY, center gatherer shield, parts accessories

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

3шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

3шт.

30

170123C1

STRAP, inner gath. shield upper

5шт.
