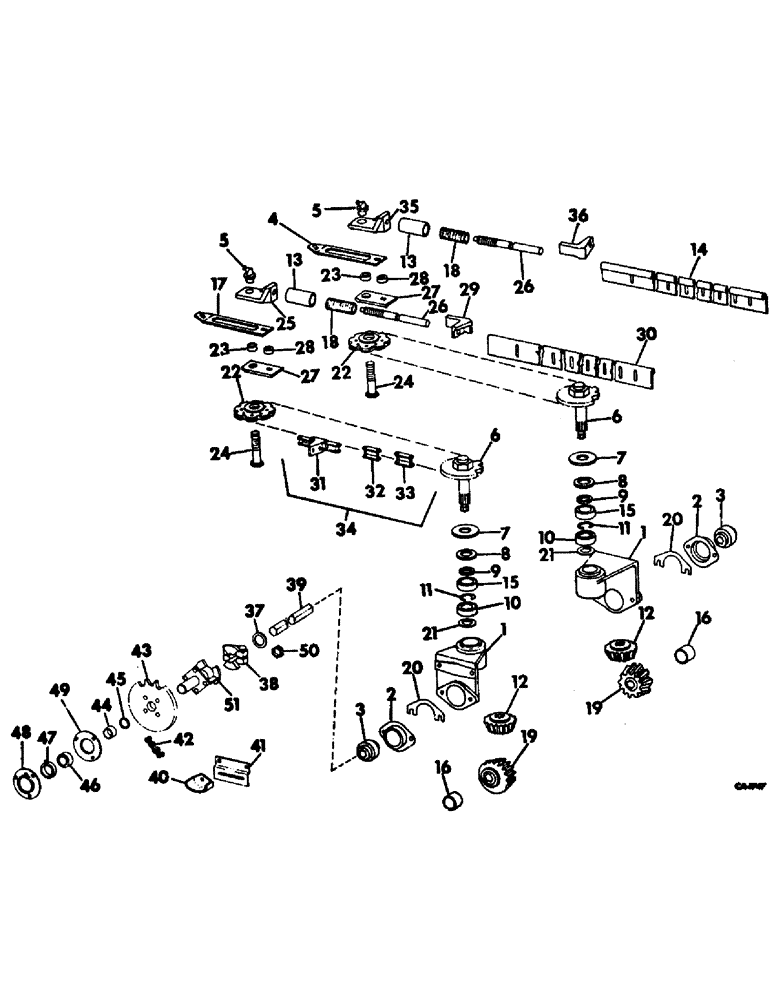

Запчасти Case IH 762 (Q-24) - GATHERER AND GATHERER DRIVE (58) - ATTACHMENTS/HEADERS

1

156823C2

HOUSING, gatherer drive inner brg

12шт.

180145

BOLT,Hex, 7/16" - 14 x 1", Gr 5

SCREW, 7/16 x 1 znd hex-hd cap

24шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

24шт.

2

156836C1

HOUSING, gatherer drive outer brg

12шт.

3

156816C91

BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W

BEARING ASSY, gatherer drive outer

12шт.

4

168396C1

STRAP, inner gath sprocket wear RH

6шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

5

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING, 1/4-28NS 45 deg lube

12шт.

6

166144C93

SPROCKET ASSY.

SPROCKET ASSY, gatherer chain drive

12шт.

18536R1

LOCK NUT,5/8"-18, G5

NUT, 5/8-18 UNF C-Z hex.-nylon insert

12шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga

12шт.

7

156827C1

WASHER

gatherer drive shaft cup

12шт.

8

156828C1

WASHER

gatherer drive shaft

12шт.

9

156829C1

WASHER

gatherer drive brg

24шт.

10

618210R91

BEARING

ASSY, gatherer drive

12шт.

11

641207R1

SNAP RING,2.44", Int, #244

Ring, Snap, , gatherer drive inner brg 2.44", Int, #244

12шт.

12

156831C1

GEAR

gatherer driven bevel

12шт.

13

162509C1

SPACER, gatherer chain spring, serial no. 508 and below

12шт.

13

171834C1

SPACER

gatherer chain spring, serial no. 509 and above

12шт.

14

166141C1

GUIDE, gatherer chain hold down right

6шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

42шт.

120376

NUT,5/16"-18, G5

42шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

42шт.

21496R1

WASHER

11/32 x 3/4 x 11 ga C-Z

42шт.

15

618210R91

BEARING

ASSY, gatherer drive, serial no. 509 and below

12шт.

15

171879C91

BEARING

ASSY, gatherer drive, serial no. 510 and above

12шт.

16

156835C1

SPACER, gatherer drive

12шт.

17

168395C1

STRAP, inner gatherer sprocket wear LH

6шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

18

VC682

VALVE SPRING

SPRING, gath. idler sprocket adj., serial no. 508 and below

12шт.

18

303353R1

SPRING

gath. idler sprocket adj., serial no. 509 and above

12шт.

19

156833C1

GEAR, gatherer drive bevel

12шт.

20

156837C1

WASHER, gatherer drive bevel gear

24шт.

21

156830C1

WASHER

gatherer drive

36шт.

22

155915C91

DRIVE SPROCKET

SPROCKET ASSY, gatherer idler

12шт.

23

154984C1

BUSHING

gatherer idler sprocket

12шт.

24

654456R1

BOLT (SPREADER),Hex, 3/4" - 10 x 3 1/4"

BOLT, gatherer idler sprocket

12шт.

280954

NUT,3/4"-10, G5

12шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

12шт.

477243R1

WASHER,25/32" x 2" x .060"

25/32 x 2 x 16 ga C-Z

24шт.

619505R1

WASHER

25/32 x 2 x 11 ga

24шт.

25

168403C1

BRACKET, gatherer idler LH

6шт.

26

162508C1

STUD, gatherer idler adj

12шт.

606546R1

JAM NUT

5/8 C-Z center lock hex

12шт.

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

12шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga C-Z

24шт.

27

168401C1

BAR, gatherer idler

12шт.

18696R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/2", Gr 2

BOLT, 7/16 x 1-1/4 sq-nk crg

12шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 C-Z hex

12шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

12шт.

28

168402C1

BUSHING, gatherer idler

12шт.

29

162500C1

GUIDE, gatherer chain left

6шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

30

166140C1

GUIDE, gatherer chain hold down left

6шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

42шт.

120376

NUT,5/16"-18, G5

42шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

42шт.

21496R1

WASHER

11/32 x 3/4 x 11 ga C-Z

42шт.

31

935619R91

GATHERING CHAIN

CONVEYOR ASSY, gatherer section

1шт.

32

587371R93

DRAG LINK

LINK, connecting

1шт.

33

450423R1

DRAG LINK

LINK, gatherer roller chain

1шт.

34

654164R91

CHAIN (AG)

CONVEYOR ASSY, gatherer, includes ref nos. 31, 32 and 33

12шт.

35

168404C1

BRACKET, gatherer idler RH

6шт.

36

162501C1

GUIDE, gatherer chain right

6шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

37

156834C1

WASHER, gatherer drive shaft clamp

10шт.

38

159809C91

CLAMP ASSY, gath drive coupling

10шт.

39

156832C1

ROD, horizontal gath drive shaft

6шт.

40

583620R1

BLOCK

gath drive chain tightener

2шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

41

166019C1

BRACKET, gath drive chain tightener

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

42

CHAIN ASSY, gatherer drive LH, use 87 links from 10-ft roll marked 611362R91, 1 offset link 612612R91 and 1 connecting link 574532R91

1шт.

42

CHAIN ASSY, gatherer drive RH, use 59 links from 10-ft roll marked 611362R91 and 1 connecting link 574532R91

1шт.

43

162904C1

SPROCKET, gatherer driven 24T, standard 353 RPM

2шт.

43

167428C1

SPROCKET, gatherer driven 31T, parts accessory slow speed 274 RPM

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 hex-hd mach

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

44

162510C1

SPACER,1 3/8" Tube x 7/8"

gatherer driven sprocket

2шт.

45

156394C1

WASHER, gath driven sprocket spacer

6шт.

46

939475R91

BEARING

ASSY, gatherer driven shaft

2шт.

47

557115R11

COLLAR

COLLAR W/SET SCREW, lkg

2шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16 hex-soc-hd cup-pt

2шт.

48

939460R91

FLANGE

W/LUB FITTING, gatherer driven

2шт.

49

939461R1

FLANGE

gatherer driven brg

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

50

156839C1

COLLAR, gatherer shaft

2шт.

191950

SET SCREW,Hdls Hex Skt, 5/16" - 18 x 3/8", Cup Pt

SCREW, 5/16 x 3/8 cup-pt set

4шт.

51

163259C91

COUPLING ASSY, gatherer drive outer

2шт.
