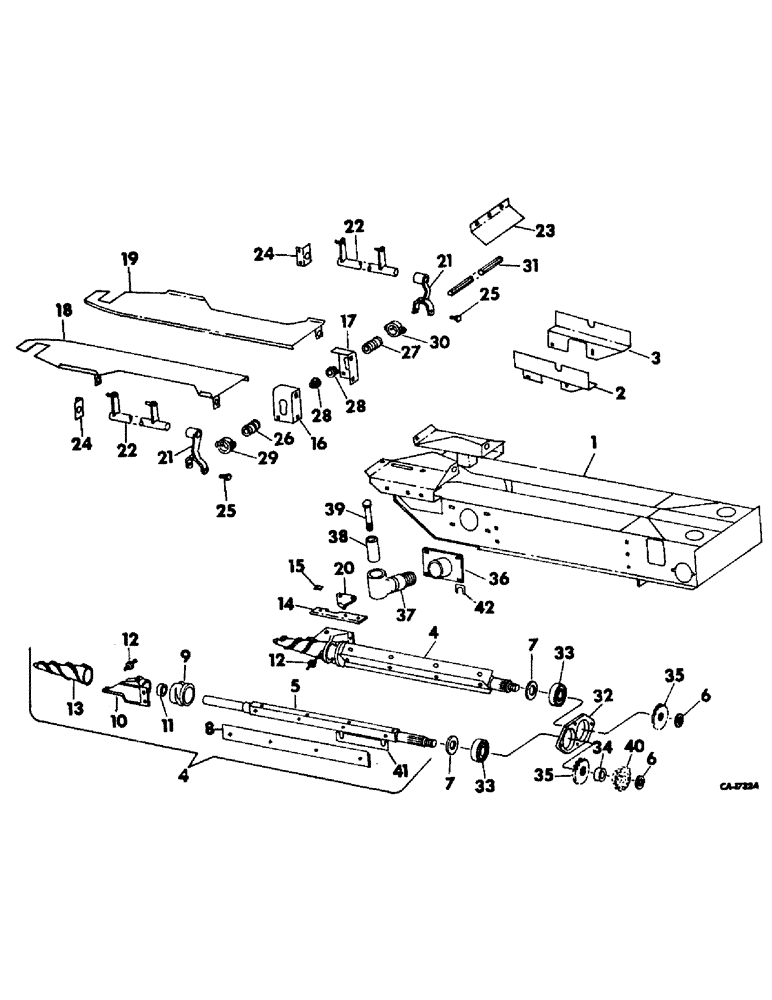

Запчасти Case IH 762 (Q-18) - STALK ROLL FRAME, ROLLS, AND CONTROL, SERIAL NO. 510 AND ABOVE (58) - ATTACHMENTS/HEADERS

1

173999C1

FRAME ASSY, stalk roll

6шт.

18695R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2

BOLT, 7/16 x 1-1/4 sq-nk crg

24шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

24шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

24шт.

2

167879C1

SHIELD, stalk roll frame LH

6шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

3

167880C1

SHIELD, stalk roll frame RH

6шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

4

173687C92

ROLL ASSY, left driver stalk

3шт.

4

173688C92

ROLL ASSY, right driven stalk

3шт.

4

173689C92

ROLL ASSY, right driver stalk

3шт.

4

173690C92

ROLL ASSY, left driven stalk, includes ref nos. 5, 8 thru 13 and 41

3шт.

5

175232C91

SHAFT ASSY, stalk roll driver LH

3шт.

5

175235C91

SHAFT ASSY, stalk roll driven RH

3шт.

5

175233C91

SHAFT ASSY, stalk roll driver RH

3шт.

5

175234C91

SHAFT ASSY, stalk roll driven LH, includes ref no. 9

3шт.

19638R1

LOCK NUT,3/4"-16, GB

NUT, 3/4 znp nylon insert hex

12шт.

178139

WASHER, 1-3/16 C-Z med lock

12шт.

6

584253R1

WASHER

25/32 x 1-3/4 x 3/16

12шт.

7

654297R1

WASHER

stalk roll shaft

12шт.

8

173375C1

KNIFE SECTION

SECTION, stalk roll knife no. 1

24шт.

8

173376C1

KNIFE SECTION

SECTION, stalk roll knife no. 2

24шт.

181694

BOLT,Hex, 1/2" - 20 x 7/8"

SCREW, 1/2 x 7/8 hex-hd cap

192шт.

138549

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

192шт.

9

173693C1

SECTION, roll center LH, RH spiral

6шт.

9

173694C1

SECTION, roll center RH, LH spiral, serial no. 509 and below

6шт.

169047C1

PIN

5/16 x 2-3/8 groove

12шт.

9

175236C1

SECTION, roll center LH, RH spiral

6шт.

9

175237C1

SECTION, roll center RH, LH spiral, serial no. 510 and above

6шт.

175238C1

PIN, 3/8 x 2-3/4 hardened

12шт.

10

173695C91

SUPPORT

ASSY, stalk roll inner

6шт.

10

173696C91

SUPPORT ASSY, stalk roll outer, includes ref nos. 11 and 12

6шт.

11

173699C1

BUSHING,25.6mm ID x 33.4mm OD x 56.9mm L

stalk roll support

12шт.

12

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

12шт.

13

173700C1

POINT, stalk roll front LH spiral

6шт.

13

173701C1

POINT, stalk roll front RH spiral

6шт.

173702C1

PIN

5/16 x 1-3/4 groove

12шт.

173703C1

PIN

5/16 x 2-1/4 groove

12шт.

14

162600C1

KNIFE

weed front LH

6шт.

14

162601C1

KNIFE

weed front RH

6шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 C-Z hex-hd cap

36шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

36шт.

15

589713R1

SHIM

WASHER, weed knife shim, as required

36шт.

16

162878C1

BRACKET, stalk roll shield adj screw LH

6шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

12шт.

271501

SOCKET

NUT, 7/16 C-Z hex

12шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

12шт.

17

162879C1

BRACKET, stalk roll shield adj screw RH

6шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

12шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

12шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

12шт.

18

162886C93

SHIELD ASSY, stalk roll LH

6шт.

19

162887C93

SHIELD ASSY, stalk roll RH

6шт.

20

170376C1

SHIELD

stalk roll point LH

6шт.

20

170377C1

SHIELD

stalk roll point RH

6шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

24шт.

120377

NUT,3/8" - 16, Gr 5

24шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

24шт.

21

156706C1

ARM, stalk roll shield adj lower

12шт.

125637

COTTER PIN,1/8" x 2"

PIN, SPLIT (COTTER), 1/8" x 2"

24шт.

576483R1

LOCK PIN,5/16" x 1 1/2", Slotted

Pin, 5/16" x 1 1/2", Slotted

12шт.

16543R1

WASHER, 5/32 x 7/16 x 18 ga C-Z

24шт.

22

166151C91

ARM ASSY, stalk roll shield control

12шт.

23

166154C2

SHIELD, stalk roll adj rod

6шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

18шт.

271501

SOCKET

NUT, 7/16 C-Z hex

18шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

18шт.

24

156719C1

ANGLE, stalk roll shield control tube

24шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

48шт.

120377

NUT,3/8" - 16, Gr 5

48шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

48шт.

25

589457R1

SCREW, stalk roll shield adj nut

24шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

24шт.

26

156708C2

SCREW, stalk roll shield adj left

6шт.

27

156709C2

SCREW, stalk roll shield adj right

6шт.

28

M5895

COLLAR, stalk roll shield adj rod

4шт.

125843

SET SCREW,Hex Skt, 3/8"-16 x 3/8"

SCREW, 3/8 x 3/8 C-Z hex-soc-hd cup

4шт.

29

935560R1

NUT, stalk roll shield adj left

6шт.

30

935561R1

NUT, stalk roll shield adj right

6шт.

31

163660C1

ROD, stalk roll shield adj

2шт.

32

153748C11

HOUSING W/BEARING, stalk roll, includes ref no. 33

6шт.

18695R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2

BOLT, 7/16 x 1-1/4 sq-nk crg

24шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

24шт.

131718

SHIM

7/16 C-Z int-tooth lock

24шт.

33

173735C91

BEARING ASSY

stalk roll housing

12шт.

34

589696R1

BUSHING

SPACER, stalk roll driven sprocket

6шт.

35

580849R1

PINION

GEAR, stalk roll drive 20T

12шт.

36

162871C91

HUB ASSY, stalk roll support

12шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

48шт.

271501

SOCKET

NUT, 7/16 znd hex

48шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

48шт.

37

162876C2

ANCHOR, stalk roll support

12шт.

102609R1

LOCK NUT,3/4"-16

NUT, 3/4-16 znp nylon insert hex

12шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

12шт.

22241R1

WASHER

1-3/32 x 1-3/4 x 16 ga C-Z

1шт.

21713R1

WASHER,25/32" x 1 3/4" x .120"

25/32 x 1-3/4 x 11 ga C-Z

12шт.

38

158783C1

BUSHING

stalk roll support

12шт.

39

161160C1

BOLT,Hex, 1/2" - 20 x 4", Drilled

stalk roll support

12шт.

125250

SLOTTED NUT,1/2"-20, G8

NUT, 1/2 znd slt-hex

12шт.

121224

SUPPORT

3/32" x 1"

12шт.

138549

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

24шт.

40

SPROCKET, stalk roll driven 15T, refer to stalk roll drive unit for listing

6шт.

41

174443C1

SHIM, stalk roll knife section .105

1шт.

41

175312C1

SHIM

stalk roll knife section .060

1шт.

42

175273C1

SHIM

lower stalk roll

1шт.
