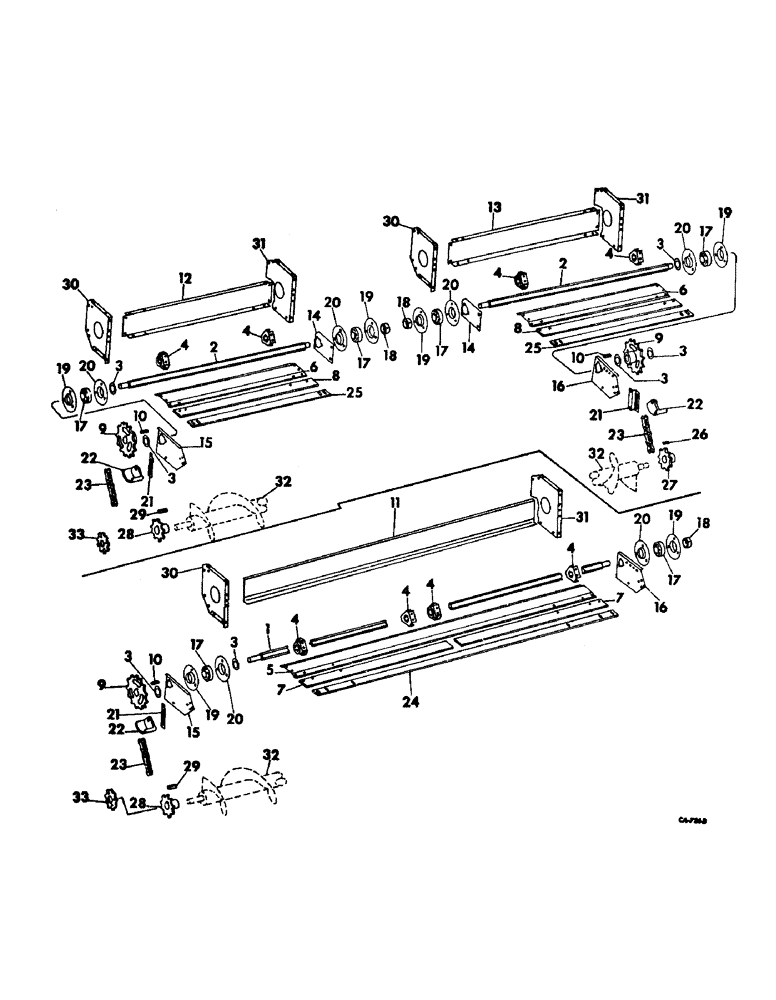

Запчасти Case IH 743 (M-10) - BEATER AND BEATER DRIVE (58) - ATTACHMENTS/HEADERS

1

166395C2

SHAFT, beater, 743CH serial no. 795 & above

1шт.

NLS

NO LONGER SERVICED

5/8-18 C-Z slt-hex

1шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

492-11112

LOCK WASHER,1 1/8"

1-1/8 C-Z med lock

1шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga C-Z

1шт.

2

166403C1

SHAFT, beater, 743CH serial no., Serial Range: 501-794

2шт.

2

166399C1

SHAFT, beater, 744 serial no. 2019 and below

2шт.

2

173997C1

SHAFT, beater, 744 serial no. 2020 and above

2шт.

125267

NUT

5/8-18 C-Z slt-hex

2шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

2шт.

131049

HYD CONNECTOR

1-1/8 C-Z med lock

2шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga

2шт.

3

472323R1

WASHER

beater shaft, 8 reqd 743CH serial no. 501 to 794 & 744CH serial no. 501 & above, 4 reqd 743CH serial no. 795 & above

1шт.

4

166390C1

SUPPORT, beater section

4шт.

168102C1

PIN

5/16 x 2 type 1 groove

4шт.

5

169051C1

SECTION, beater, 743CH serial no. 795 & above

3шт.

181595

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

SCREW, 5/16 x 3/4 hex-hd cap

24шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

24шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

24шт.

6

162649C1

SECTION, beater, 743CH serial no., Serial Range: 501-794

6шт.

6

162650C1

SECTION, beater, 744 corn head

6шт.

181595

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

SCREW, 5/16 x 3/4 hex-hd cap

24шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

24шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

24шт.

7

169053C1

BAT, beater drum, 743CH serial no. 795 & above

6шт.

18475R1

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 2

5/16 x 1-1/4 hex-hd mach

48шт.

9411638

LOCK NUT,5/16"-18, GA

NUT, 5/16 C-Z hex lock

48шт.

8

162651C1

BAT, beater drum, 743CH serial no., Serial Range: 501-794

6шт.

8

162652C1

BAT, beater drum, 744 corn head

6шт.

18475R1

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 2

5/16 x 1-1/4 hex-hd mach

42шт.

9411638

LOCK NUT,5/16"-18, GA

NUT, 5/16 C-Z hex lock

42шт.

9

162949C91

SPROCKET, beater driven, 2 reqd 743CH serial no. 501 to 794 & 744CH serial no. 501 & above, 1 reqd 743CH serial no. 795 & above

1шт.

10

577147R1

KEY

5/16 x 1-3/16 sq-parallel, 2 reqd 743CH serial no. 501 to 794 & 744CH serial no. 501 & above, 1 reqd 743CH serial no. 795 & above

1шт.

11

169056C1

SHIELD, beater, 743CH serial no. 795 & above

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

4шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

4шт.

12

162654C1

SHIELD, beater LH, 743CH serial no., Serial Range: 501-794

1шт.

12

162656C1

SHIELD, beater LH, 744 corn head

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

4шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

4шт.

13

162655C1

SHIELD, beater RH, 743CH serial no., Serial Range: 501-794

1шт.

13

162657C1

SHIELD, beater RH, 744 corn head

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

4шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

4шт.

14

162867C1

BRACKET, beater brg inner, 743CH serial no. 501 to 794, 744CH serial no. 501 & above

2шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 C-Z sq-nk crg

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

15

163037C1

BRACKET, beater outer LH

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

5шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

3шт.

120377

NUT,3/8" - 16, Gr 5

5шт.

271501

SOCKET

NUT, 7/16 C-Z hex

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

3шт.

16

163038C1

BRACKET, beater outer RH

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

5шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

3шт.

120377

NUT,3/8" - 16, Gr 5

5шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

3шт.

17

939475R91

BEARING

ASSY, beater shaft, 4 reqd 743CH serial no. 501 to 794 & 744CH serial no. 501 & above, 2 reqd 743CH serial no. 795 & above

1шт.

18

557115R11

COLLAR

COLLAR ASSY, brg lkg, 2 reqd 743CH serial no. 501 to 794 & 744CH serial no. 501 & above, 1 reqd 743CH serial no. 795 & above

1шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16 hex-soc-hd cup-pt set

1шт.

19

939460R91

FLANGE

ASSY, beater shaft brg, 4 reqd 743CH serial no. 501 to 794 & 744CH serial no. 501 & above, 2 reqd 743CH serial no. 795 & above

1шт.

20

939461R1

FLANGE

beater shaft brg, 4 reqd 743CH serial no. 501 to 794 & 744CH serial no. 501 & above, 2 reqd 743CH serial no. 795 & above

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

21

632194R1

BRACKET, beater chain tightener, 2 reqd 743CH serial no. 501 to 794 & 744CH serial no. 501 & above, 1 reqd 743CH serial no. 795 & above

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

22

583620R1

BLOCK

beater chain tightener LH, 743 serial no. 501 and above, 744 serial no. 501 and above

1шт.

22

583619R1

BLOCK

beater chain tightener RH, 743CH serial no. 501 to 794, 744CH serial no. 501 & above

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

23

CHAIN ASSY, beater drive roller, 2 reqd 743CH serial no. 501 to 794 & 744CH serial no. 501 & above, 1 reqd 743CH serial no. 795 & above, use 45 links from 10-ft roll marked 569089R91, 1 offset link 456929R91 & 1 connecting link 587372R91

1шт.

24

169052C1

STRIP, beater stripper, 743CH serial no. 795 & above

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

13шт.

120376

NUT,5/16"-18, G5

13шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

13шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

13шт.

25

168228C1

STRIP, beater stripper, 743CH serial no., Serial Range: 501-794

2шт.

25

168229C1

STRIP, beater stripper, 744 corn head

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

14шт.

120376

NUT,5/16"-18, G5

14шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

14шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

14шт.

26

587016R1

KEY, 1/4 x 3/4 sq-parallel, 743CH serial no. 501 to 794, 744CH serial no. 501 & above

1шт.

27

166212C91

SPROCKET ASSY, beater drive RH 11T, 743CH serial no. 501 to 794, 744CH serial no. 501 & above

1шт.

28

166213C91

SPROCKET ASSY, beater drive LH 11T, welded sprocket

1шт.

29

577147R1

KEY

5/16 x 1-3/16 sq-parallel, for use w/ref no. 28, 166213C91

1шт.

30

162779C1

SIDE, beater LH, 2 reqd 743CH serial no. 501 to 794 & 744CH serial no. 501 & above, 1 reqd 743CH serial no. 795 & above

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

1шт.

31

162780C1

SIDE, beater RH, 2 reqd 743CH serial no. 501 to 794 & 744CH serial no. 501 & above, 1 reqd 743CH serial no. 795 & above

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

1шт.

32

AUGER, refer to auger, doors and shield unit for listing

1шт.

33

174720C1

SPROCKET, beater drive left 11T, for use w/cast auger driven sprocket

1шт.

18766R1

BOLT,Hex, 5/16"-18 x 1 3/4", G2

5/16 x 1-3/4 hex-hd mach

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.
