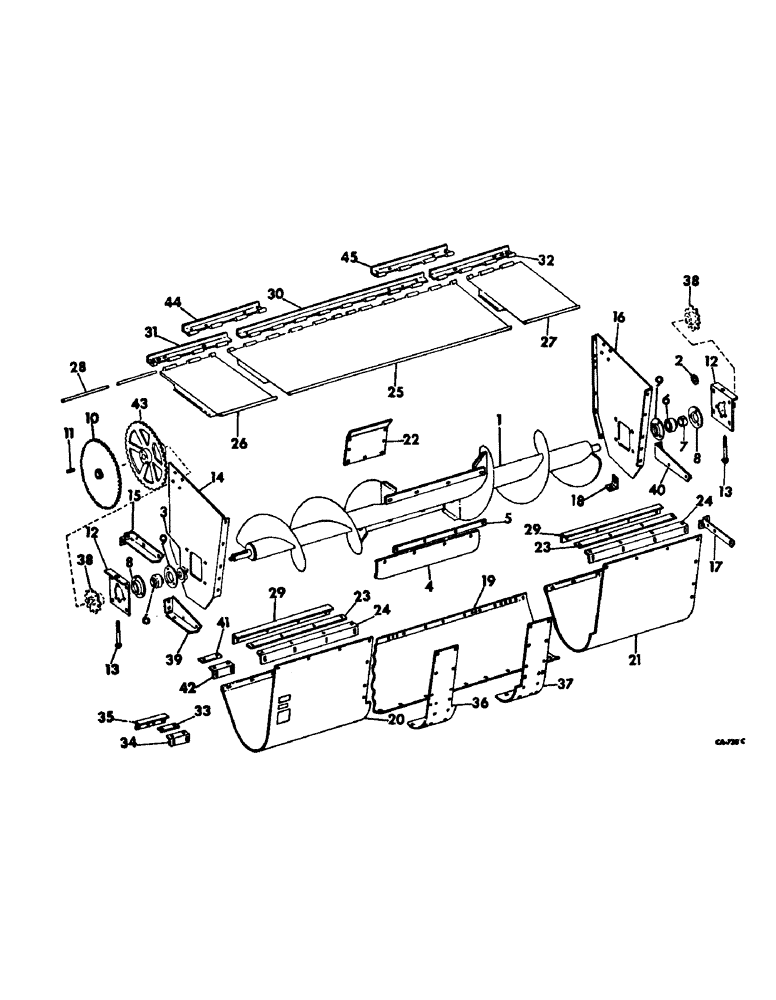

Запчасти Case IH 743 (M-07) - AUGER, DOORS, AND SHIELDS (58) - ATTACHMENTS/HEADERS

1

163002C91

AUGER ASSY, 743 corn head

1шт.

1

150245C91

AUGER ASSY, 744 corn head, for 744 serial no. 1285 & below ref no. 4, 634470R1 & ref no. 5, 634471R1 must be ordered also

1шт.

163307C1

JAM NUT

3/4-16 NF C-Z slt hex jam

1шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

181696

1/2-20 x 1 C-Z hex-hd cap

1шт.

492-11100

LOCK WASHER,1"

WASHER, LOCK, 1"

1шт.

131050

WASHER,1 1/4"

1 1/4"

1шт.

138549

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

2шт.

460908R1

WASHER

17/32 x 1-1/2 x 11 ga C-Z

1шт.

21713R1

WASHER,25/32" x 1 3/4" x .120"

25/32 x 1-3/4 x 11 ga C-Z

1шт.

2

654283R1

THRUST WASHER

auger right shaft

1шт.

3

632156R1

THRUST WASHER

auger left shaft

1шт.

4

162993C1

STRIP

BAT, auger, 743CH serial no. 501 & above, 744CH serial no., Serial Range: 501-1285

2шт.

4

634470R1

BAT

auger, 744CH serial no. 1286 & above

2шт.

5

162992C1

RETAINER, auger bat, 743CH serial no. 501 & above, 744CH serial no., Serial Range: 501-1285

2шт.

5

634471R1

RETAINER, auger bat, 744CH serial no. 1286 & above

2шт.

18685R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8 x 1-1/2 C-Z sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

6

156011C91

BALL BEARING

BEARING ASSY, auger ball

2шт.

7

557995R11

COLLAR

W/SET SCREW, lkg

1шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16 hex-soc-hd cup-pt

1шт.

8

939460R91

FLANGE

ASSY, bearing

2шт.

9

939461R1

FLANGE

bearing

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

10

162994C91

SPROCKET ASSY, auger driven, 60T, welded sprocket

1шт.

11

577147R1

KEY

5/16 x 1-3/16 sq-parallel, for use w/ref no. 10, 162994C91

1шт.

11

151257C1

KEY, 5/16 x 1-3/4 sq-parallel, for use w/ref no. 43, 174721C1

1шт.

12

166046C2

BRACKET, auger brg

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

611346R1

WASHER

13/32 x 7/8 x 16 ga C-Z

8шт.

13

455300R1

BOLT, auger bearing bracket

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

611346R1

WASHER

13/32 x 7/8 x 16 ga C-Z

4шт.

14

169071C2

SECTION, auger trough end LH

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

4шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

3шт.

20485R1

BOLT,Short NK, 7/16"-14 x 3/4", G5. Full Thd

7/16 x 3/4 C-Z sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

7шт.

271501

SOCKET

NUT, 7/16 C-Z hex

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

7шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

15

167859C2

SUPPORT, auger trough end LH, 743 serial no. 979 and below, 744 serial no. 2019 and below

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

16

169072C2

SECTION, auger trough end RH

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

4шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

3шт.

20485R1

BOLT,Short NK, 7/16"-14 x 3/4", G5. Full Thd

7/16 x 3/4 C-Z sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

7шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

7шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

17

167860C2

SUPPORT, auger trough end RH, 743 serial no. 979 and below, 744 serial no. 2019 and below

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

18

169073C1

ANGLE, auger end sheet

4шт.

19

163093C2

TROUGH, auger center, 743 serial no. 979 and below, 744 serial no. 2019 and below

1шт.

19

173399C1

TROUGH, auger center, 743 serial no. 980 and above, 744 serial no. 2020 and above

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

9шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

5шт.

120376

NUT,5/16"-18, G5

9шт.

120377

NUT,3/8" - 16, Gr 5

5шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

9шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

2шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

5шт.

20

163098C11

TROUGH ASSY, auger outer LH, 743 serial no. 979 and below

1шт.

20

173406C1

TROUGH ASSY, auger outer LH, 743 serial no. 980 and above

1шт.

20

163100C11

TROUGH ASSY, auger outer LH, 744 serial no. 2019 and below

1шт.

20

173410C1

TROUGH ASSY, auger outer LH, 744 serial no. 2020 and above

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

4шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

5шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

1шт.

21

163099C11

TROUGH ASSY, auger outer RH, 743 serial no. 979 and below

1шт.

21

173409C1

TROUGH ASSY, auger outer RH, 743 serial no. 980 and above

1шт.

21

163101C11

TROUGH ASSY, auger outer RH, 744 serial no. 2019 and below

1шт.

21

173413C1

TROUGH ASSY, auger outer RH, 744 serial no. 2020 and above

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

4шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

5шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

1шт.

22

162815C1

SHIELD, auger front center, 743CH serial no. 794 & below

1шт.

22

162818C1

SHIELD, auger front center, 744 corn head

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

4шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

4шт.

23

168173C1

STRIP, auger stripper, 743 corn head

2шт.

23

168174C1

STRIP, auger stripper, 744 corn head

2шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

1шт.

24

168180C1

ANGLE, auger stripper, 743 corn head

2шт.

24

168181C1

ANGLE, auger stripper, 744 corn head

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

25

168328C11

DOOR ASSY, auger center, 743 serial no. 979 and below, 744 serial no. 2019 and below

1шт.

25

173521C1

DOOR ASSY, auger center, 743 serial no. 980 and above, 744 serial no. 2020 and above

1шт.

26

163127C92

DOOR ASSY, auger outer LH, 743 corn head

1шт.

26

163131C92

DOOR ASSY, auger outer left, 744 corn head

1шт.

27

163128C92

DOOR ASSY, auger outer RH, 743 corn head

1шт.

27

163132C92

DOOR ASSY, auger outer RH, 744 corn head

1шт.

28

939018R1

ROD, auger outer door hinge, 743 corn head

1шт.

28

150240C2

ROD, auger outer door hinge, 744 corn head

2шт.

29

163090C1

ANGLE, auger door, 743 serial no. 979 and below

2шт.

29

173531C1

ANGLE, auger door LH, 743 serial no. 980 and above

1шт.

29

173532C1

ANGLE, auger door RH, 743 serial no. 980 and above

1шт.

29

163091C1

ANGLE, auger door, 744 serial no. 2019 and below

2шт.

29

173533C1

ANGLE, auger door LH, 744 serial no. 2020 and above

1шт.

29

173534C1

ANGLE, auger door RH, 744 serial no. 2020 and above

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

30

162782C1

HINGE, auger door center

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange whiz lock

7шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

7шт.

31

939148R2

HINGE, auger door outer LH, 734 corn head

1шт.

31

150351C1

HINGE, auger door outer LH, 744 corn head

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

1шт.

32

939149R2

HINGE, auger door outer RH, 743 corn head

1шт.

32

150352C1

HINGE, auger door outer RH, 744 corn head

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

1шт.

33

168177C1

STRIP, auger stripper extension, 815 combine, 743 serial no. 979 and below, 744 serial no. 2019 and below

2шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

4шт.

34

168184C1

ANGLE, auger stripper extension, 815 combine, 743 serial no. 979 and below, 744 serial no. 2019 and below

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

35

167948C1

EXTENSION, auger door angle, 815 combine, 743 serial no. 979 and below, 744 serial no. 2019 and below

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

36

163094C1

FILLER, auger trough inner LH, 815 combine, 743 serial no. 979 and below, 744 serial no. 2019 and below

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 znd sq-nk crg

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

5шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

37

163095C1

FILLER, auger trough inner RH, 815 combine, 743 serial no. 979 and below, 744 serial no. 2019 and below

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 znd sq-nk crg

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

5шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

38

SPROCKET, beater drive LH & RH, refer to beater & beater drive unit for listing

2шт.

39

173426C1

SUPPORT, auger trough end LH, 743 serial no. 980 and above, 744 serial no. 2020 and above

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

40

173427C1

SUPPORT, auger trough end RH, 743 serial no. 980 and above, 744 serial no. 2020 and above

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

41

173741C1

STRIP, auger stripper extension, 743 serial no. 980 and above, 744 serial no. 2020 and above

2шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

4шт.

42

173742C1

ANGLE, auger stripper extension, 743 serial no. 980 and above, 744 serial no. 2020 and above

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

43

174721C1

SPROCKET, auger driven 60T, cast sprocket

1шт.

44

NOT USED IN THIS APPLICATION

1шт.

45

NOT USED IN THIS APPLICATION

1шт.
