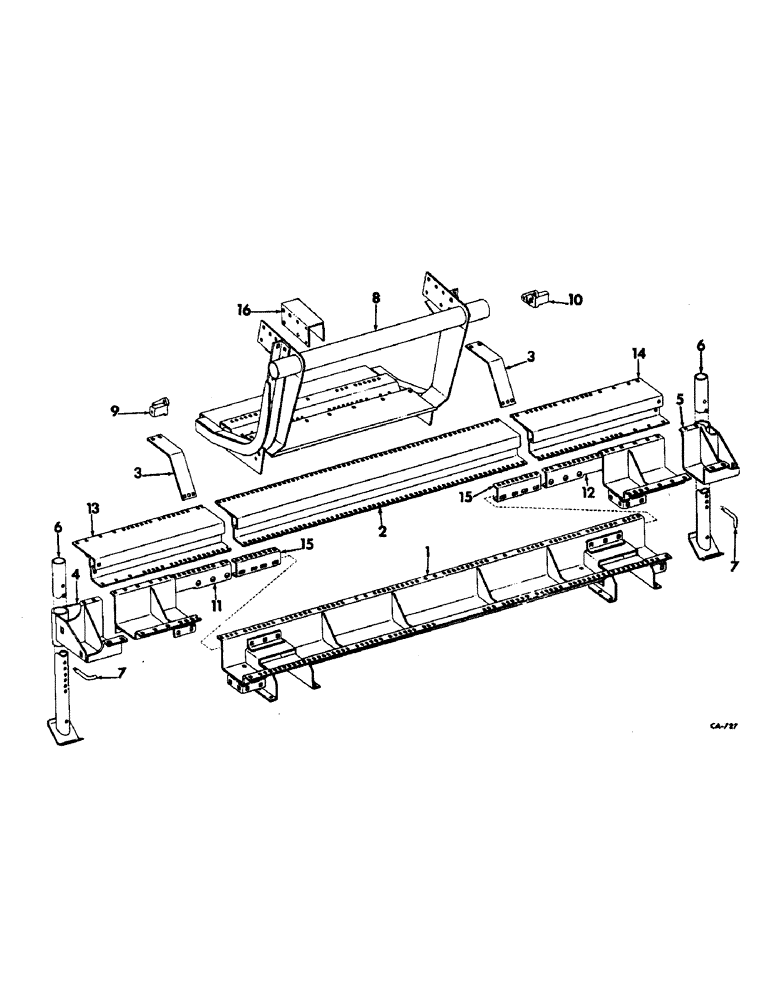

Запчасти Case IH 743 (M-03) - FEEDER ADAPTER, MAIN FRAME & STAND, 743 S/N 979 & BELOW, 744 S/N 2019 & BELOW (58) - ATTACHMENTS/HEADERS

1

162526C91

FRAME ASSY, main lower

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

14шт.

271501

SOCKET

NUT, 7/16 C-Z hex

14шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

14шт.

2

162533C91

FRAME ASSY, main upper

1шт.

3

162895C1

BRACE, main frame

2шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

4шт.

18695R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2

BOLT, 7/16 x 1-1/4 C-Z sq-nk crg

4шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

8шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

8шт.

4

162897C91

HOLDER ASSY, stand LH

1шт.

18695R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2

BOLT, 7/16 x 1-1/4 znd sq-nk crg

4шт.

271501

SOCKET

NUT, 7/16 C-Z hex

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

5

162898C91

HOLDER ASSY, stand RH

1шт.

18695R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2

BOLT, 7/16 x 1-1/4 znd sq-nk crg

4шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

6

166702C91

STAND ASSY

2шт.

7

589584R1

PIN

stand

2шт.

517843R1

COTTER PIN

PIN, 3/16 qa cot

2шт.

8

162925C92

ADAPTER ASSY, feeder, 815 combine

1шт.

8

162914C92

ADAPTER ASSY, feeder, 915 combine

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

1шт.

18695R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2

BOLT, 7/16 x 1-1/4 C-Z sq-nk crg

1шт.

271501

SOCKET

NUT, 7/16 C-Z hex

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

9

165486C1

SUPPORT

feeder adapter lower LH

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2 x 1-1/2 hex-hd cap

2шт.

433156

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

SCREW, 1/2 x 4-1/2 C-Z hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

10

165487C1

SUPPORT

feeder adapter lower RH

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2 x 1-1/2 hex-hd cap

2шт.

433156

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

SCREW, 1/2 x 4-1/2 C-Z hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

11

162537C91

EXTENSION ASSY, main frame lower LH, 743 corn head

1шт.

11

162549C91

EXTENSION ASSY, main frame lower LH, 744 corn head

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

4шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

21331R1

WASHER

15/32 x 1-1/4 x 16 ga

8шт.

12

162538C91

EXTENSION ASSY, main frame lower RH, 743 corn head

1шт.

12

162550C91

EXTENSION ASSY, main frame lower RH, 744 corn head

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

4шт.

271501

SOCKET

NUT, 7/16 C-Z hex

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

21331R1

WASHER

15/32 x 1-1/4 x 16 ga

8шт.

13

162545C91

EXTENSION ASSY, upper main frame LH, 743 corn head

1шт.

13

162557C91

EXTENSION ASSY, upper main frame LH, 744 corn head

1шт.

14

162546C91

EXTENSION ASSY, upper main frame RH, 743 corn head

1шт.

14

162558C91

EXTENSION ASSY, upper main frame RH, 744 corn head

1шт.

15

162602C1

CHANNEL, main frame extension tie

2шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

8шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

8шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

8шт.

16

166784C91

CHANNEL ASSY, feeder ext. connect, 915 combine

2шт.

18695R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2

BOLT, 7/16 x 1-1/4 C-Z sq-nk crg

4шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2 C-Z hex-hd mach

10шт.

271501

SOCKET

NUT, 7/16 C-Z hex

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

10шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

10шт.
