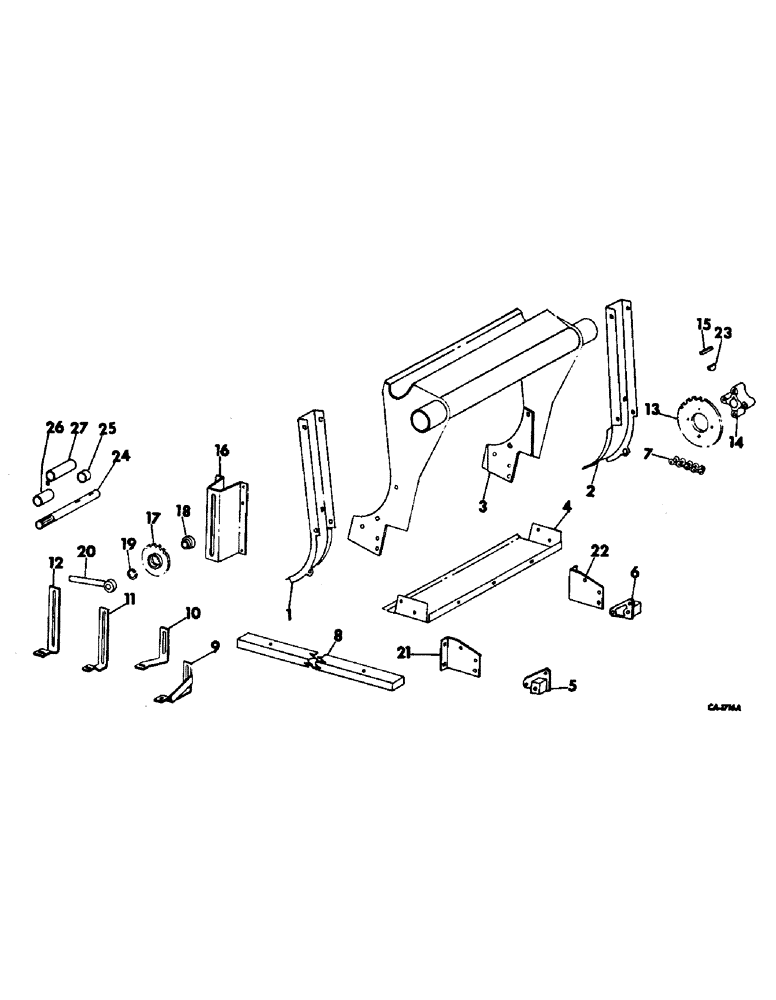

Запчасти Case IH 743 (M-40) - FEEDER ADAPTER AND DRIVE PARTS, FOR 815 OR 915 COMBINE (58) - ATTACHMENTS/HEADERS

1

173663C1

CHANNEL, feeder adapter filler LH

1шт.

743 Serial no. 980 and above or 744 serial no. 2020 and above for 815 combine serial no. 3028 and above

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16 znd hex

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

2

173664C1

CHANNEL, feeder adapter filler RH

1шт.

743 Serial no. 980 and above or 744 serial no. 2020 and above for 815 combine serial no. 3028 and above

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

2шт.

271501

SOCKET

NUT, 7/16 znd hex

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

3

173665C1

ADAPTER ASSY, feeder

1шт.

743 Serial no. 980 and above or 744 serial no. 2020 and above for 815 combine serial no. 3028 and above

1шт.

3

173668C1

ADAPTER ASSY, feeder

1шт.

743 Serial no. 980 and above or 744 serial no. 2020 and above for 915 combine serial no. 1778 and above

1шт.

18696C1

BOLT, 7/16 x 1-1/2 znd sq-nk crg

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

4

173670C1

BOTTOM, feeder adapter

1шт.

743 Serial no. 980 and above or 744 serial no. 2020 and above for 815 combine serial no. 3028 and above

1шт.

4

173671C1

BOTTOM, feeder adapter

1шт.

743 Serial no. 980 and above or 744 serial no. 2020 and above for 915 combine serial no. 1778 and above

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

5

165486C1

SUPPORT

feeder adapter lower LH

1шт.

743 Serial no. 980 and above or 744 serial no. 2020 and above for 815 combine serial no. 3028 and above

1шт.

743 Serial no. 980 and above or 744 serial no. 2020 and above for 915 combine serial no. 1778 and above

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2 x 1-1/2 hex-hd cap

2шт.

433156

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

SCREW, 1/2 x 4-1/2 znd hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

6

165487C1

SUPPORT

feeder adapter lower RH

1шт.

743 Serial no. 980 and above or 744 serial no. 2020 and above for 815 combine serial no. 3028 and above

1шт.

743 Serial no. 980 and above or 744 serial no. 2020 and above for 915 combine serial no. 1778 and above

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2 x 1-1/2 hex-hd cap

2шт.

433156

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

SCREW, 1/2 x 4-1/2 znd hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

7

CHAIN ASSY, main drive, use 205 links from 10-ft roll marked 1793D, 1 offset link 1318D and 1 connecting link 1786D

2шт.

743 Serial no. 980 and above or 744 serial no. 2020 and above for 815 combine serial no. 3028 and above

1шт.

743 Serial no. 980 and above or 744 serial no. 2020 and above for 915 combine serial no. 1778 and above

1шт.

7

CHAIN ASSY, main drive, use 203 links from 10-ft roll marked 1793D and 1 connecting link 1766D

1шт.

743 Serial no. 979 and below or 744 serial no. 2019 and below for 815 combine serial no. 3027 and below

1шт.

743 Serial no. 979 and below or 744 serial no. 2019 and below for 915 combine serial no. 1777 and below

1шт.

7

CHAIN ASSY, main drive extension, use 3 links from 10-ft roll marked 1793D and 1 connecting link 1786D

1шт.

743 Serial no. 979 and below or 744 serial no. 2019 and below for 815 combine serial no. 3027 and below

1шт.

743 Serial no. 979 and below or 744 serial no. 2019 and below for 915 combine serial no. 1777 and below

1шт.

8

164831C1

GUIDE, chain RH

1шт.

All 743 or 744 on all 815 or 915 combines

1шт.

18482R1

BOLT,Short NK, 5/16"-18 x 2", G2

5/16 x 2 znd sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

9

172559C1

SUPPORT ASSY, chain guide rear

1шт.

743 Serial no. 980 and above or 744 serial no. 2020 and above for 815 combine serial no. 3028 and above

1шт.

743 Serial no. 980 and above or 744 serial no. 2020 and above for 815 combine serial no. 3027 and below

1шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

2шт.

10

172757C1

SUPPORT, chain guide rear

1шт.

743 Serial no. 980 and above or 744 serial no. 2020 and above for 915 combine serial no. 1778 and above

1шт.

743 Serial no. 979 and below or 744 serial no. 2019 and below for 815 combine serial no. 3027 and below

1шт.

743 Serial no. 979 and below or 744 serial no. 2019 and below for 915 combine serial no. 1777 and below

1шт.

743 Serial no. 979 and below or 744 serial no. 2019 and below for 815 combine serial no. 3028 and above

1шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

2шт.

11

172558C1

SUPPORT, chain guide front

1шт.

743 Serial no. 980 and above or 744 serial no. 2020 and above for 815 combine serial no. 3028 and above

1шт.

743 Serial no. 980 and above or 744 serial no. 2020 and above for 815 combine serial no. 3027 and below

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

2шт.

12

172756C1

SUPPORT, chain guide front

1шт.

743 Serial no. 980 and above or 744 serial no. 2020 and above for 915 combine serial no. 1778 and above

1шт.

743 Serial no. 979 and below or 744 serial no. 2019 and below for 815 combine serial no. 3027 and below

1шт.

743 Serial no. 979 and below or 744 serial no. 2019 and below for 915 combine serial no. 1777 and below

1шт.

743 Serial no. 979 and below or 744 serial no. 2019 and below for 815 combine serial no. 3028 and above

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

2шт.

13

162228C1

SPROCKET, main drive 32T

1шт.

743 Serial no. 980 and above or 744 serial no. 2020 and above for 815 combine serial no. 3028 and above

1шт.

743 Serial no. 980 and above or 744 serial no. 2020 and above for 915 combine serial no. 1778 and above

1шт.

743 Serial no. 979 and below or 744 serial no. 2019 and below for 815 combine serial no. 3028 and above

1шт.

743 Serial no. 979 and below or 744 serial no. 2019 and below for 915 combine serial no. 1778 and above

1шт.

13

166003C1

SPROCKET, main drive 21T

1шт.

743 Serial no. 979 and below or 744 serial no. 2019 and below for 815 combine serial no. 3027 and below

1шт.

743 Serial no. 979 and below or 744 serial no. 2019 and below for 915 combine serial no. 1777 and below

1шт.

743 Serial no. 980 and above or 744 serial no. 2020 and above for 815 combine serial no. 3027 and below

1шт.

743 Serial no. 980 and above or 744 serial no. 2020 and above for 915 combine serial no. 1777 and below

1шт.

14

172565C1

HUB, main drive sprocket, 2 required

2шт.

743 Serial no. 980 and above or 744 serial no. 2020 and above for 915 combine serial no. 1778 and above

1шт.

743 Serial no. 979 and below or 744 serial no. 2019 and below for 815 combine serial no. 3028 and above

1шт.

14

172565C1

HUB, main drive sprocket

1шт.

743 Serial no. 979 and below or 744 serial no. 2019 and below for 915 combine serial no. 1778 and above

1шт.

14

172564C1

HUB, main drive sprocket

1шт.

743 Serial no. 980 and above or 744 serial no. 2020 and above for 815 combine serial no. 3028 and above

1шт.

14

159837C1

HUB, main drive sprocket

1шт.

743 Serial no. 979 and below or 744 serial no. 2019 and below for 815 combine serial no. 3027 and below

1шт.

743 Serial no. 979 and below or 744 serial no. 2019 and below for 915 combine serial no. 1777 and below

1шт.

743 Serial no. 980 and above or 744 serial no. 2020 and above for 915 combine serial no. 1777 and below

1шт.

14

173686C1

HUB, main drive sprocket

1шт.

743 Serial no. 980 and above or 744 serial no. 2020 and above for 815 combine serial no. 3027 and below

1шт.

18782R1

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 2

3/8 x 2-1/4 hex-hd mach

1шт.

18784R1

BOLT,Hex, 3/8"-16 x 2 3/4", G2

3/8 x 2-3/4 hex-hd mach

1шт.

18786R1

BOLT,Hex, 3/8"-16 x 3 1/2", G2

3/8 x 3-1/2 hex-hd mach

1шт.

18787R1

BOLT,Hex, 3/8"-16 x 4", G2

3/8 x 4 hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

21992R1

HEADED PIN,5/16" x 2 3/4"

PIN, 5/16 x 2-3/4 C-Z std-hd

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

15

240

KEY,Gib, 3/8" Sq x 2 1/2"

3/8 x 2-1/2 sq-tapered, 2 required

2шт.

743 Serial no. 980 and above or 744 serial no. 2020 and above for 815 combine serial no. 3028 and above

1шт.

743 Serial no. 980 and above or 744 serial no. 2020 and above for 915 combine serial no. 1778 and above

1шт.

743 Serial no. 979 and below or 744 serial no. 2019 and below for 815 combine serial no. 3028 and above

1шт.

15

240

KEY,Gib, 3/8" Sq x 2 1/2"

3/8 x 2-1/2 sq-tapered

1шт.

743 Serial no. 979 and below or 744 serial no. 2019 and below for 915 combine serial no. 1778 and above

1шт.

16

172568C1

SUPPORT, main drive tightener

1шт.

743 Serial no. 980 and above or 744 serial no. 2020 and above for 815 combine serial no. 3028 and above

1шт.

743 Serial no. 980 and above or 744 serial no. 2020 and above for 815 combine serial no. 3027 and below

1шт.

16

160949C1

SUPPORT, main drive tightener

1шт.

743 Serial no. 980 and above or 744 serial no. 2020 and above for 915 combine serial no. 1778 and above

1шт.

743 Serial no. 979 and below or 744 serial no. 2019 and below for 815 combine serial no. 3027 and below

1шт.

743 Serial no. 979 and below or 744 serial no. 2019 and below for 915 combine serial no. 1777 and below

1шт.

743 Serial no. 979 and below or 744 serial no. 2019 and below for 815 combine serial no. 3028 and above

1шт.

743 Serial no. 980 and above or 744 serial no. 2020 and above for 915 combine serial no. 1777 and below

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

17

632125R1

SPROCKET, main drive chain tightener 20T

1шт.

All 743 or 744 on all 815 or 915 combines

1шт.

22861R1

BOLT, 7/8 x 3 znd sq-nk crg

1шт.

131047

WASHER,7/8"

7/8"

1шт.

20703R1

WASHER

29/32 x 1-3/4 x 16 ga C-Z

1шт.

21220R1

WASHER

29/32 x 1-1/4 x 11 ga C-Z

1шт.

21214R1

WASHER

1-5/32 x 2 x 11 ga C-Z

6шт.

18

580095R91

BALL BEARING

BEARING ASSY, tightener sprocket ball

1шт.

All 743 or 744 on all 815 or 915 combines

1шт.

19

555602R1

RING

tightener sprocket brg snap

1шт.

All 743 or 744 on all 815 or 915 combines

1шт.

20

167475C1

RETAINER, tightener sprocket

1шт.

All 743 or 744 on all 815 or 915 combines

1шт.

21

173679C2

SUPPORT, feeder lower LH

1шт.

743 Serial no. 980 and above or 744 serial no. 2020 and above for 815 combine serial no. 3028 and above

1шт.

18695R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2

BOLT, 7/16 x 1-1/4 znd sq-nk crg

2шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 znd sq-nk crg

2шт.

271501

SOCKET

NUT, 7/16 C-Z hex

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

22

173680C2

SUPPORT, feeder lower RH

1шт.

743 Serial no. 980 and above or 744 serial no. 2020 and above for 815 combine serial no. 3028 and above

1шт.

18695R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2

BOLT, 7/16 x 1-1/4 znd sq-nk crg

2шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 znd sq-nk crg

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga

2шт.

23

27958A

KEY

3/8 x 2-1/8 Woodruff, 2 required

2шт.

743 Serial no. 979 and below or 744 serial no. 2019 and below for 815 combine serial no. 3027 and below

1шт.

743 Serial no. 979 and below or 744 serial no. 2019 and below for 915 combine serial no. 1777 and below

1шт.

743 Serial no. 980 and above or 744 serial no. 2020 and above for 815 combine serial no. 3027 and below

1шт.

23

27958A

KEY

3/8 x 2-1/8 Woodruff

1шт.

743 Serial no. 980 and above or 744 serial no. 2020 and above for 915 combine serial no. 1777 and below

1шт.

24

172567C1

SHAFT, feeder platform drive

1шт.

743 Serial no. 980 and above or 744 serial no. 2020 and above for 815 combine serial no. 3027 and below

1шт.

24

160399C1

SHAFT, feeder platform drive

1шт.

743 Serial no. 979 and below or 744 serial no. 2019 and below for 815 combine serial no. 3028 and above

1шт.

608085R1

WASHER

1-13/32 x 2 x 16 ga C-Z

3шт.

25

172570C1

SPACER, feeder pltf drive shaft inner

1шт.

743 Serial no. 980 and above or 744 serial no. 2020 and above for 815 combine serial no. 3027 and below

1шт.

26

172571C1

SPACER, feeder pltf drive shaft outer

1шт.

743 Serial no. 980 and above or 744 serial no. 2020 and above for 815 combine serial no. 3027 and below

1шт.

27

656163R1

SPACER

feeder pltf drive shaft

1шт.

743 Serial no. 979 and below or 744 serial no. 2019 and below for 815 combine serial no. 3028 and above

1шт.
