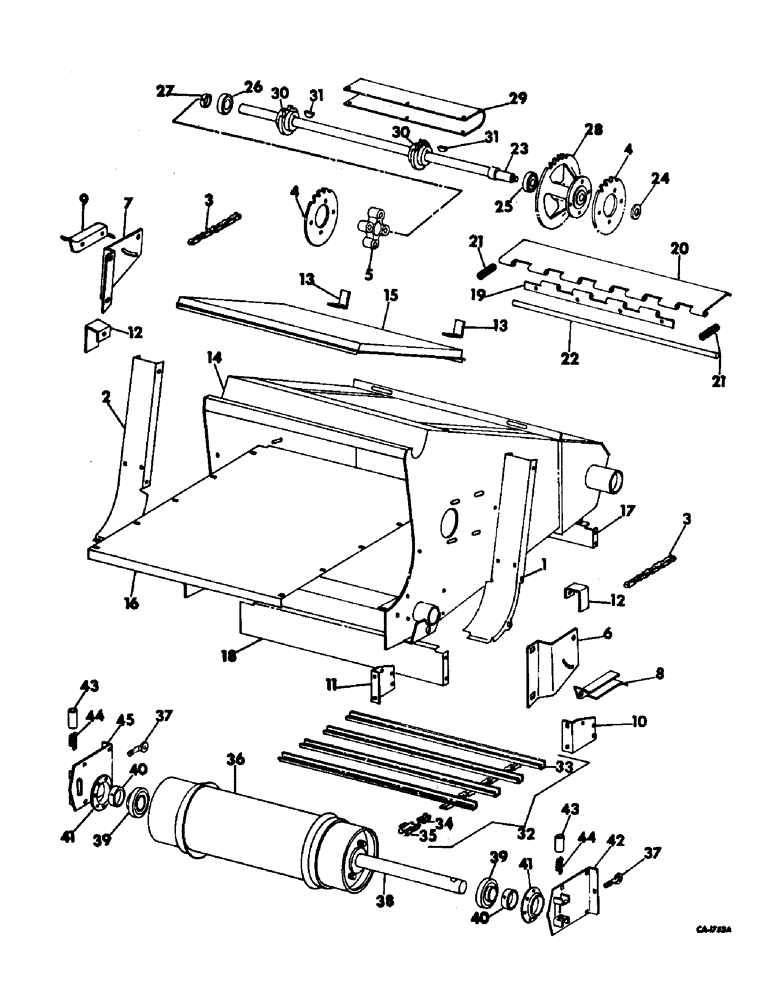

Запчасти Case IH 743 (M-36) - FEEDER, FEED CONVEYOR AND MAIN DRIVE, FOR 403 OR 715 COMBINE (58) - ATTACHMENTS/HEADERS

1

173663C1

CHANNEL, feeder adapter filler LH

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

2шт.

271501

SOCKET

NUT, 7/16 C-Z hex

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

2

173664C1

CHANNEL, feeder adapter filler RH

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

3

CHAIN ASSY, main drive, use 181 links from 10-ft roll marked 1793D and 1 connecting link 1786D

2шт.

4

162228C1

SPROCKET, main drive 32T

2шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

3/8 x 1-1/2 hex-hd mach

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

5

173674C1

HUB, main drive sprocket RH

1шт.

663921R1

PIN

5/16 x 2-1/2 C-Z std-hd

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

6

173677C1

BRACKET, main drive tightener LH

1шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 znd sq-nk crg

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga

2шт.

7

173678C1

BRACKET, main drive tightener RH

1шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 znd sq-nk crg

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga

2шт.

8

586291R1

TIGHTENER, main drive LH

1шт.

19041R1

BOLT,7/16"-14 x 1 1/4", G2, Full Thd

7/16 x 1-1/4 znd no. 3 plow

1шт.

19042R1

BOLT,7/16"-14 x 1 1/2", G2, Full Thd

7/16 x 1-1/2 znd no. 3 plow

1шт.

271501

SOCKET

NUT, 7/16 C-Z hex

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

893862R1

WASHER

15/32 x 1-1/4 x 11 ga C-Z

1шт.

9

167343C1

TIGHTENER, main drive RH

1шт.

19041R1

BOLT,7/16"-14 x 1 1/4", G2, Full Thd

7/16 x 1-1/4 znd no. 3 plow

1шт.

19042R1

BOLT,7/16"-14 x 1 1/2", G2, Full Thd

7/16 x 1-1/2 znd no. 3 plow

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

893862R1

WASHER

15/32 x 1-1/4 x 11 ga C-Z

1шт.

10

173679C2

SUPPORT, feeder lower LH

1шт.

18695R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2

BOLT, 7/16 x 1-1/4 znd sq-nk crg

2шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 znd sq-nk crg

2шт.

271501

SOCKET

NUT, 7/16 C-Z hex

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga

2шт.

11

173680C2

SUPPORT, feeder lower RH

1шт.

18695R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2

BOLT, 7/16 x 1-1/4 znd sq-nk crg

2шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 znd sq-nk crg

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga

2шт.

12

173681C1

RETAINER, main drive chain

2шт.

19041R1

BOLT,7/16"-14 x 1 1/4", G2, Full Thd

7/16 x 1-1/4 no. 3 plow

2шт.

271501

SOCKET

NUT, 7/16 C-Z hex

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

13

586803R1

SUPPORT, feeder frame cover

2шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

2шт.

231-1445

NUT,5/16"-18, GB

NUT, 5/16-18 znd nylon insert

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

6шт.

14

173609C1

FEEDER ASSY

1шт.

18696R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/2", Gr 2

BOLT, 7/16 x 1-1/2 znd sq-nk crg

2шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 znd hex-hd mach

4шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

15

173621C1

COVER, feeder frame

1шт.

16

173622C1

BOTTOM, feeder

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

19шт.

120377

NUT,3/8" - 16, Gr 5

19шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

19шт.

17

173623C1

SUPPORT, feeder bottom cross rear

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 3/4 znd sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

18

173624C1

SUPPORT, feeder bottom cross front

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 3/4 znd sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

19

589037R2

HINGE, feeder extension

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

20

632298R11

EXTENSION ASSY, feeder frame bottom, all 403 combines and 715 combine w/o stone retarder serial no. 3250 and below

1шт.

20

173751C1

EXTENSION ASSY, feeder frame bottom, 715 combine w/stone retarder serial no. 3250 and below, all 715 combine serial no. 3251 and above

1шт.

21

VC682

VALVE SPRING

SPRING, feeder frame bottom extension D

2шт.

18807R1

BOLT

7/16 x 5-1/2 znd hex-hd mach

2шт.

231-1447

NUT,7/16"-14, GB

NUT, LOCK, 7/16"-14, GB

2шт.

21029R1

WASHER

15/32 x 1 x 11 ga C-Z

4шт.

21763R1

WASHER

15/32 x 3/4 x 11 ga C-Z

8шт.

22

589386R1

ROD

feeder extension

1шт.

23

173627C1

SHAFT ASSY, feeder pivot

1шт.

70121D

NUT

1-14 slt-hex jam

1шт.

125637

COTTER PIN,1/8" x 2"

PIN, SPLIT (COTTER), 1/8" x 2"

1шт.

492-11100

LOCK WASHER,1"

WASHER, LOCK, 1"

1шт.

24

174115C1

WASHER, feeder pivot shaft

1шт.

25

571588R91

BALL BEARING

BEARING ASSY, feed conveyor shaft LH

1шт.

26

256557R91

BEARING

ASSY, feed conveyor shaft RH

1шт.

27

557113R11

COLLAR

W/SET SCREW, lkg

1шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8 hex-soc cup-pt set

1шт.

28

173631C1

SPROCKET, feeder driven 33T

1шт.

29

173633C1

SHIELD

feeder shaft inner

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

6шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

30

173643C1

SPROCKET ASSY.

SPROCKET, feed conveyor chain drive 8T

2шт.

102580

GUIDE

SCREW, 5/16 x 1/4 C-Z hex-soc cup-pt

4шт.

31

126-148

WOODRUFF KEY,#29, 3/8" x 2 1/8", HT

KEY, 3/8 x 2-1/8 no. 29 Woodruff

2шт.

32

173636C91

CONVEYOR

ASSY, feeder chain, includes ref. nos. 33, 34 and 35

1шт.

33

173637C1

SLAT, feeder conveyor

16шт.

104264

RIVET,FH, 5/16" x 5/8"

5/16 x 5/8 small F-HD

64шт.

34

151884C91

LINK

conveyor chain attaching

1шт.

35

587371R93

DRAG LINK

LINK, conveyor chain connecting

1шт.

36

173640C1

DRUM ASSY, feed conveyor

1шт.

271501

SOCKET

NUT, 7/16-14 C-Z hex

6шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

6шт.

37

158863C2

ROD, feed conveyor chain tightener

2шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 znd sq-nk crg

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

38

173642C1

SHAFT, feeder conveyor drum

1шт.

39

455965R91

BALL BEARING,1.0005" ID x 52 mm OD x 15 mm

BEARIGN, feed conveyor shaft ball

2шт.

40

455102R11

COLLAR

W/SET SCREW, lkg

2шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4-20 x 1/4 hex-soc cup-pt

2шт.

41

165360C1

FLANGED BEARING,95.2 mm OD x 8.74 mm

FLANGE, feed conveyor drum brg

2шт.

42

938977R92

BRACKET ASSY, feeder conveyor drum LH

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

4шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 C-Z hex

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

43

H39274

SPACER,1/2" Pipe x 1 1/2"

conveyor drum adj bolt

2шт.

44

PO144

SPRING

drum adj bolt

2шт.

231-1448

NUT,1/2"-13, GB

1/2-13 znd nylon insert

2шт.

189315

BOLT,Hex, 1/2" - 13 x 6 1/2", Gr 5

SCREW, 1/2 x 6-1/2 znd hex-hd cap

2шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

8шт.

45

938978R92

BRACKET ASSY, feeder conveyor drum RH

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

4шт.

271501

SOCKET

NUT, 7/16-14 C-Z hex

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.
