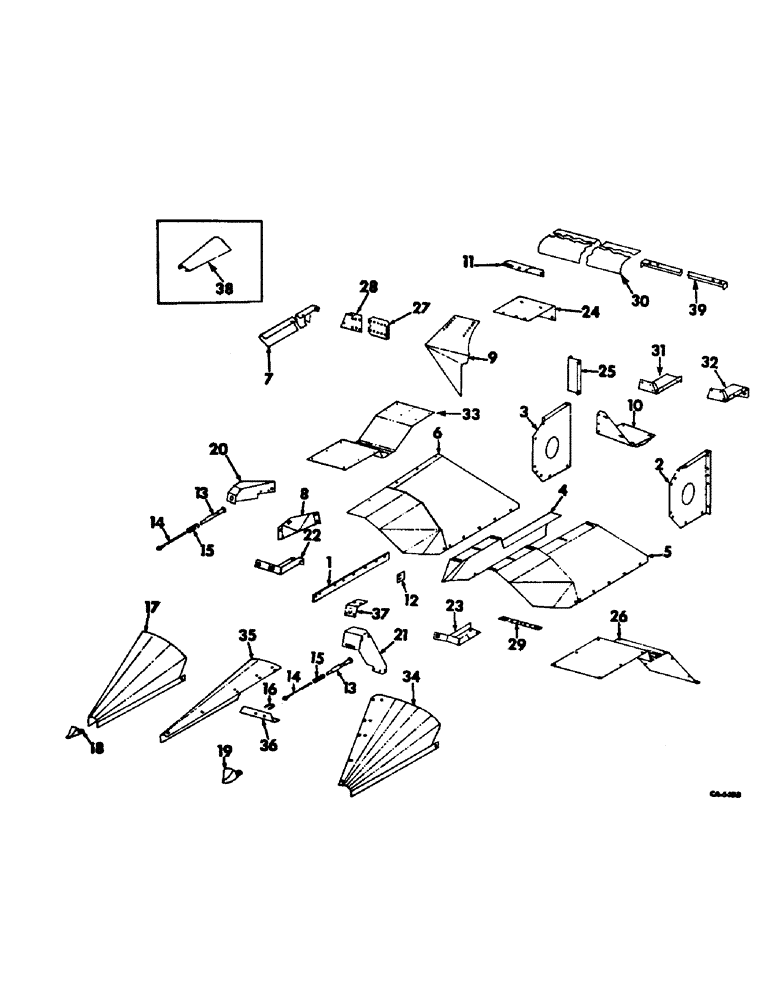

Запчасти Case IH 743 (M-30) - GATHERER SHIELDS AND DIVIDERS (58) - ATTACHMENTS/HEADERS

1

162770C91

SUPPORT ASSY, gatherer shield LH

4шт.

1

162771C91

SUPPORT ASSY, gatherer shield RH

4шт.

18695R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2

BOLT, 7/16 x 1-1/4 C-Z sq-nk crg

8шт.

271501

SOCKET

NUT, 7/16 C-Z hex

8шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

8шт.

2

162779C1

SIDE, beater LH, 2 used 743 serial no. 794 & below, 1 used serial no. 795 & above, 2 used 744 serial no. 501 & above

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

1шт.

3

162780C1

SIDE, beater RH, 2 used 743 serial no. 794 & below, 1 used serial no. 795 & above, 2 used 744 serial no. 501 & above

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

1шт.

4

162757C93

SHIELD ASSY, inner gatherer LH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange whiz lock

3шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

3шт.

5

162758C93

SHIELD ASSY, inner gatherer RH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange whiz lock

3шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

3шт.

6

162763C93

SHIELD ASSY, outer gatherer LH

1шт.

6

162764C93

SHIELD ASSY, outer gatherer RH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange whiz lock

2шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

2шт.

7

163391C91

EXTENSION ASSY, outer gath shield LH

1шт.

7

163392C91

EXTENSION ASSY, outer gath shield RH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

22шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

22шт.

8

162773C1

REINFORCEMENT, divider hinge LH

4шт.

8

162774C1

REINFORCEMENT, divider hinge RH

4шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

8шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

9

163374C1

EXTENSION, beater cover inner LH, 744CH serial no. 501 & above

1шт.

9

163376C1

EXTENSION, beater cover outer LH, 743CH serial no., Serial Range: 501-794

1шт.

9

163375C1

EXTENSION, beater cover inner RH, 744CH serial no. 501 & above

1шт.

9

163377C1

EXTENSION, beater cover outer RH, 743CH serial no., Serial Range: 501-794

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

1шт.

10

163370C1

BOTTOM, beater LH, 2 used 743CH serial no. 501 to 794, 3 used 743CH serial no. 795 & above, 2 used 744CH serial no. 501 & above

1шт.

10

163371C1

BOTTOM, beater RH, 2 used 743CH serial no. 501 to 794, 3 used 743CH serial no. 795 & above, 2 used 744CH serial no. 501 & above

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

1шт.

11

163366C11

ANGLE ASSY, beater bottom LH, 2 used 743CH serial no. 501 to 794, 3 used 743CH serial no. 795 to 979, 2 used 744CH serial no., Serial Range: 501-2019

1шт.

11

163367C11

ANGLE ASSY, beater bottom RH, 2 used 743CH serial no. 501 to 794, 3 used 743CH serial no. 795 to 979, 2 used 744CH serial no., Serial Range: 501-2019

1шт.

11

173267C1

ANGLE, beater bottom inner LH, 3 used 743CH serial no. 980 and above, 2 used 744CH serial no. 2020 and above

1шт.

11

173268C1

ANGLE, beater bottom inner RH, 3 used 743CH serial no. 980 and above, 2 used 744CH serial no. 2020 and above

1шт.

12

166567C1

SEAL

SEAL, ear corn saver

8шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

16шт.

120376

NUT,5/16"-18, G5

16шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

16шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

16шт.

13

163070C91

FITTING

PIPE ASSY, divider adj

5шт.

14

163072C1

BOLT (SPREADER),7/16" - 14 x 12"

BOLT, divider adj

5шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

5шт.

21213R1

WASHER

1-1/32 x 2 x 11 ga C-Z

5шт.

15

22147N

SPRING

divider adj bolt

5шт.

16

18344K

BOLT,3/8" - 16 x 2 1/8", Steel

U-BOLT, divider adj

3шт.

120377

NUT,3/8" - 16, Gr 5

12шт.

17

589510R92

DIVIDER ASSY.

DIVIDER ASSY, outer LH

1шт.

17

589511R92

DIVIDER ASSY.

DIVIDER ASSY, outer RH, includes ref. no. 18

1шт.

18686R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 2 1/4", Gr 2

BOLT, 3/8 x 2-1/4 znd sq-nk crg

4шт.

20582R1

BOLT, 1/2 x 6-1/2 znd sq-nk crg

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

19696R1

LOCK NUT,1/2"-13, GB

NUT, 1/2 znd nylon insert

2шт.

18484R1

BOLT,Short NK, 5/16"-18 x 2 3/4", G2

PIN, 3/16 x 1 C-Z cotter

2шт.

21659R1

PIN, 7/16 x 1-1/4 C-Z std-hd

2шт.

120697

SCREW, 1/4 x 3/4 slt-f-hd mach

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

18

U911

POINT, outer divider LH

1шт.

18

U912

END ASSY.

POINT, outer divider RH

1шт.

19

UB1526

POINT, inner divider lower

3шт.

18685R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8 x 1-1/2 znd sq-nk crg

12шт.

120377

NUT,3/8" - 16, Gr 5

12шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

12шт.

20

166723C91

SUPPORT ASSY, divider adj rod outer LH

1шт.

20

166724C91

SUPPORT ASSY, divider adj rod outer RH

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z sq-nk crg

6шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

21

167453C1

SUPPORT ASSY, inner gath front LH

3шт.

21

167454C1

SUPPORT ASSY, inner gath front RH

3шт.

638017R1

NUT, 5/16 C-Z flange whiz lock

18шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

18шт.

22

163081C91

SUPPORT ASSY, divider outer LH

1шт.

22

163082C91

SUPPORT ASSY, divider outer RH

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

8шт.

271501

SOCKET

NUT, 7/16 C-Z hex

8шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

8шт.

23

163083C91

SUPPORT ASSY, divider inner LH

3шт.

23

163084C91

SUPPORT ASSY, divider inner RH

3шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

24шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

24шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

24шт.

24

162749C1

FILLER, beater bottom top, 2 used 743CH serial no. 501 to 794, 3 used 743CH serial no., Serial Range: 795-979

1шт.

24

173270C1

FILLER, beater bottom top, 743 serial no. 980 and above

3шт.

24

162756C1

FILLER, beater bottom top, 744CH serial no. 2019 & below

2шт.

24

173269C1

FILLER, beater bottom top, 744 serial no. 2020 and above

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

1шт.

25

167901C1

FILLER, beater side inner LH, 743 w/28 inch rows serial no. 979 and below, 744 w/36 inch rows

1шт.

25

166098C1

FILLER, beater side inner LH, 743 w/30 inch rows serial no. 979 and below, 744 w/38 inch rows

1шт.

25

162810C1

FILLER, beater side inner LH, 743 w/32 inch rows serial no. 979 and below, 744 w/40 inch rows

1шт.

25

167906C1

FILLER, beater side outer LH, 28 and 36 inch rows

1шт.

25

167902C1

FILLER, beater side outer LH, 30 and 38 inch rows

1шт.

25

167900C1

FILLER, beater side outer LH, 743 w/32 inch rows serial no. 979 and below, 744 w/40 inch rows

1шт.

25

167900C1

FILLER, beater side inner RH, 743 w/28 inch rows serial no. 979 and below, 744 w/36 inch rows

1шт.

25

166097C1

FILLER, beater side inner RH, 743 w/30 inch rows serial no. 979 and below, 744 w/38 inch rows

1шт.

25

162809C1

FILLER, beater side inner RH, 743 w/32 inch rows serial no. 979 and below, 744 w/40 inch rows

1шт.

25

167907C1

FILLER, beater side outer RH, 28 and 36 inch rows

1шт.

25

167903C1

FILLER, beater side outer RH, 30 and 38 inch rows

1шт.

25

167901C1

FILLER, beater side outer RH, 743 w/32 inch rows serial no. 979 and below, 744 w/40 inch rows

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

1шт.

26

162836C11

FILLER ASSY, inner gatherer sheet top, 2 used 743CH serial no. 501 to 794, 3 used serial no. 795 & above, 28, 30 and 32 inch rows

1шт.

26

162840C11

FILLER ASSY, inner gatherer sheet top, 36, 38 and 40 inch rows

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange whiz lock

32шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

32шт.

27

167005C1

BRACKET, outer rear adj filler, 743 w/30 or 32 inch rows serial no. 979 and below, 744 w/38 or 40 inch rows serial no. 2019 and below

2шт.

27

168279C1

BRACKET, outer rear adj filler, 743 w/28 inch rows serial no. 979 and below, 744 w/36 inch rows serial no. 2019 and below

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

28

167006C1

BRACKET, shield outer rear filler LH, 743 w/30 or 32 inch rows serial no. 979 and below, 744 w/38 or 40 inch rows serial no. 2019 and below

1шт.

28

167007C1

BRACKET, shield outer rear filler RH, 743 w/30 or 32 inch rows serial no. 979 and below, 744 w/38 or 40 inch rows serial no. 2019 and below

1шт.

28

168277C1

BRACKET, shield outer rear filler LH, 743 w/28 inch rows serial no. 979 and below, 744 w/36 inch rows serial no. 2019 and below

1шт.

28

168278C1

BRACKET, shield outer rear filler RH, 743 w/28 inch rows serial no. 979 and below, 744 w/36 inch rows serial no. 2019 and below

1шт.

28

173295C1

BRACKET, shield outer rear support LH, 743 w/28 inch rows serial no. 980 and above, 744 w/36 inch rows serial no. 2020 and above

1шт.

28

173296C1

BRACKET, shield outer rear support RH, 743 w/28 inch rows serial no. 980 and above, 744 w/36 inch rows serial no. 2020 and above

1шт.

28

173293C1

BRACKET, shield outer rear support LH, 743 w/30 inch rows serial no. 980 and above, 744 w/38 inch rows serial no. 2020 and above

1шт.

28

173294C1

BRACKET, shield outer rear support RH, 743 w/30 inch rows serial no. 980 and above, 744 w/38 inch rows serial no. 2020 and above

1шт.

28

173283C1

BRACKET, shield outer rear support LH, 744 w/40 inch rows serial no. 2020 and above

1шт.

28

173284C1

BRACKET, shield outer rear support RH, 744 w/40 inch rows serial no. 2020 and above

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

29

163365C1

BAR, inner gatherer shield tie, 744CH serial no. 1285 & below

6шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange whiz lock

24шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

24шт.

30

162859C91

COVER ASSY, beater LH, 743CH serial no. 794 & below

1шт.

30

162860C91

COVER ASSY, beater RH, 743CH serial no. 794 & below

1шт.

30

169054C1

COVER ASSY, beater, 743CH serial no. 795 & above

1шт.

30

162863C91

COVER ASSY, beater LH, 744 corn head

1шт.

30

162864C91

COVER ASSY, beater RH, 744 corn head

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

1шт.

31

168208C1

BOTTOM, beater inner LH, 743 w/28 inch rows serial no. 501 to 794, 744 w/36 inch rows

1шт.

31

168207C1

BOTTOM, beater inner RH, 743 w/28 inch rows serial no. 501 to 794, 744 w/36 inch rows

1шт.

31

170001C1

BOTTOM, beater inner LH, 743 w/30 inch rows serial no. 501 to 794, 744 w/38 inch rows

1шт.

31

170000C1

BOTTOM, beater inner RH, 743 w/30 inch rows serial no. 501 to 794, 744 w/38 inch rows

1шт.

31

168447C1

BOTTOM ASSY, beater inner LH, 743 w/32 inch rows serial no. 501 to 794, 744 w/40 inch rows

1шт.

31

168446C1

BOTTOM ASSY, beater outer RH, 743 w/32 inch rows serial no. 501 to 794, 744 w/40 inch rows

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

4шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

4шт.

32

168207C1

BOTTOM, beater outer LH, 743 w/32 inch rows serial no. 501 to 794, 744 w/40 inch rows

1шт.

32

168208C1

BOTTOM, beater outer RH, 743 w/32 inch rows serial no. 501 to 794, 744 w/40 inch rows

1шт.

32

168454C1

BOTTOM ASSY, beater outer LH, 28 and 36 inch rows

1шт.

32

168455C1

BOTTOM ASSY, beater outer RH, 28 and 36 inch rows

1шт.

32

168450C1

BOTTOM ASSY, beater outer LH, 30 and 38 inch rows

1шт.

32

168451C1

BOTTOM ASSY, beater outer RH, 30 and 38 inch rows

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

4шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

4шт.

33

162829C1

FILLER, inner gath shield center top, 743CH serial no. 794 & below

1шт.

33

162834C1

FILLER, inner gath shield center top, 744 corn head

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange whiz lock

18шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

18шт.

34

166733C91

DIVIDER ASSY, center LH, 743 corn head

3шт.

34

166727C91

DIVIDER ASSY, center LH, 744 corn head

3шт.

17148R1

BOLT,Short NK, 1/2"-13 x 2 1/4", G2

1/2 x 2-1/4 znd sq-nk crg

3шт.

19696R1

LOCK NUT,1/2"-13, GB

NUT, 1/2 C-Z nylon insert

3шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

15шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

15шт.

35

166734C91

DIVIDER ASSY, center RH, 743 corn head

3шт.

35

166728C91

DIVIDER ASSY, center RH, 744 corn head

3шт.

17148R1

BOLT,Short NK, 1/2"-13 x 2 1/4", G2

1/2 x 2-1/4 znd sq-nk crg

3шт.

19696R1

LOCK NUT,1/2"-13, GB

NUT, 1/2 C-Z nylon insert

3шт.

36

163042C1

BRACE, center divider adj bolt, 743 corn head

3шт.

36

163043C1

BRACE, center divider adj bolt, 744 corn head

3шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

37

167452C1

SUPPORT, divider adj rod inner, 743 corn head

3шт.

37

166722C1

SUPPORT, divider adj rod inner, 744 corn head

3шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange whiz lock

6шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

6шт.

38

168584C11

DEFLECTOR ASSY, center gatherer shield, parts accessories 744CH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange whiz lock

3шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

3шт.

39

169050C1

REINFORCEMENT, beater cover, 743CH serial no. 795 & above

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

12шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

12шт.
