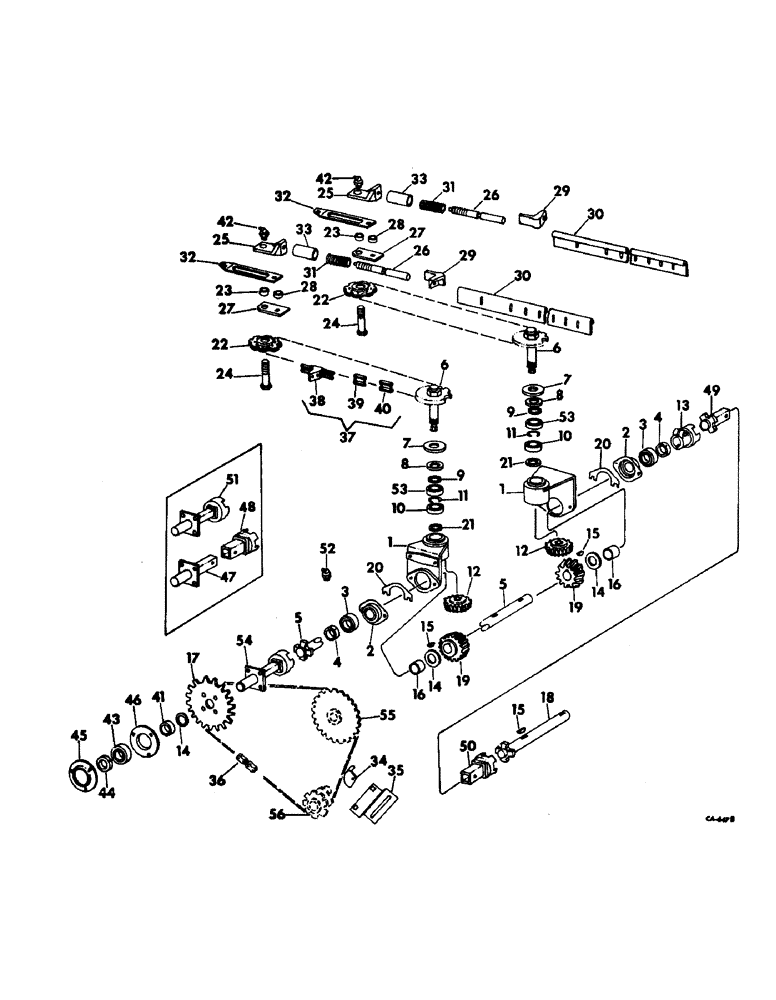

Запчасти Case IH 743 (M-27) - GATHERER AND GATHERER DRIVE (58) - ATTACHMENTS/HEADERS

1

162512C2

HOUSING, gatherer drive inner brg

8шт.

180145

BOLT,Hex, 7/16" - 14 x 1", Gr 5

SCREW, 7/16 x 1 hex-hd cap

16шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

16шт.

2

162513C91

BEARING HOUSING

HOUSING ASSY, gatherer drive outer brg, includes ref nos. 3 & 4

4шт.

180151

BOLT,Hex, 7/16" - 14 x 1 3/4", Gr 5

SCREW, 7/16 x 1-3/4 hex-hd mach

16шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

16шт.

3

939475R91

BEARING

ASSY, gath. drive shaft

8шт.

4

557115R11

COLLAR

COLLAR W/SET SCREW, lkg

8шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16 hex-soc-hd pt

8шт.

5

162505C91

SHAFT ASSY, gatherer drive outer

2шт.

6

166144C93

SPROCKET ASSY.

SPROCKET ASSY, gatherer chain drive

8шт.

18536R1

LOCK NUT,5/8"-18, G5

NUT, 5/8-18 hex-nylon insert

8шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga

8шт.

7

156827C1

WASHER

gatherer drive shaft cup

8шт.

8

156828C1

WASHER

gatherer drive shaft

8шт.

9

156829C1

WASHER

gatherer drive brg

16шт.

10

618210R91

BEARING

ASSY, gath. drive inner

8шт.

11

641207R1

SNAP RING,2.44", Int, #244

Ring, Snap, , gatherer drive inner brg 2.44", Int, #244

8шт.

12

156831C1

GEAR

gatherer driven bevel

8шт.

13

162507C1

COUPLING, gatherer drive female

2шт.

20180R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 2

BOLT, 1/2 x 2 znd sq-nk crg

2шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2 C-Z hex jam

2шт.

138549

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

2шт.

14

156394C1

WASHER, gatherer drive

18шт.

15

88745

WOODRUFF KEY,#28, 5/16" x 2 1/8", HT

KEY, 5/16 x 2-1/8 Woodruff

10шт.

16

162510C1

SPACER,1 3/8" Tube x 7/8"

gatherer drive shaft

8шт.

17

162904C1

SPROCKET, gatherer driven 24T, standard 353 FPM

2шт.

17

167428C1

SPROCKET, gatherer driven 31T, parts accessories 274 FPM

2шт.

17

162511C1

SPROCKET, gatherer driven 27T, parts accessories 314 FPM, 743 serial no. 979 and below, 744 serial no. 2020 and below

2шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 hex-hd mach

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

18

162502C91

SHAFT ASSY, gatherer drive inner

2шт.

19

156393C1

GEAR

gatherer drive bevel

8шт.

20

155281C1

SHIM

gatherer drive bevel gear

24шт.

21

156830C1

WASHER

gatherer drive

24шт.

22

155915C91

DRIVE SPROCKET

SPROCKET ASSY, gatherer idler

8шт.

23

154984C1

BUSHING

gatherer idler sprocket

8шт.

24

654456R1

BOLT (SPREADER),Hex, 3/4" - 10 x 3 1/4"

BOLT, gatherer idler sprocket

8шт.

280954

NUT,3/4"-10, G5

8шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

8шт.

477243R1

WASHER,25/32" x 2" x .060"

25/32 x 2 x 16 ga C-Z

16шт.

619505R1

WASHER

25/32 x 2 x 11 ga

16шт.

25

168403C1

BRACKET, gatherer idler LH

4шт.

25

168404C1

BRACKET, gatherer idler RH

4шт.

26

162508C1

STUD, gatherer idler adj

8шт.

169070C1

NUT

5/8-11 C-Z center lock hex

8шт.

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

8шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga

16шт.

27

168401C1

BAR, gatherer idler

8шт.

18696R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/2", Gr 2

BOLT, 7/16 x 1-1/2 znd sq-nk crg

8шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 C-Z hex

8шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

8шт.

28

168402C1

BUSHING, gatherer idler

8шт.

29

162500C1

GUIDE, gatherer chain left

4шт.

29

162501C1

GUIDE, gatherer chain right

4шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

30

166140C1

GUIDE, gatherer chain hold down LH

4шт.

30

166141C1

GUIDE, gatherer chain hold down RH

4шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

56шт.

120376

NUT,5/16"-18, G5

56шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

56шт.

21496R1

WASHER

11/32 x 3/4 x 11 ga C-Z

56шт.

31

VC682

VALVE SPRING

SPRING, gatherer idler sprocket adj, 743CH serial no. 794 & below, 744CH serial no. 1285 & below

8шт.

31

303353R1

SPRING

gatherer idler sprocket adj, 743CH serial no. 795 & above, 744CH serial no. 1286 & above

8шт.

32

168395C1

STRAP, inner gath. sprocket wear LH

4шт.

32

168396C1

STRAP, inner gath. sprocket wear RH

4шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

33

162509C1

SPACER, gatherer chain spring, 743CH serial no. 794 & below, 744CH serial no. 1285 & below

8шт.

33

171834C1

SPACER

gatherer chain spring, 743CH serial no. 795 & above, 744CH serial no. 1286 & above

8шт.

34

583620R1

BLOCK

gatherer drive chain tgtner

2шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

35

166019C1

BRACKET, gatherer drive chain tightener

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

36

CHAIN ASSY, gatherer drive LH roller, use 87 links from a 10-ft roll marked 611362R91, 1 offset link 612612R91 and 1 connecting link 574532R91

1шт.

36

CHAIN ASSY, gatherer drive RH roller, use 59 links from 10-ft roll marked 611362R91 and 1 connecting link 574532R91

1шт.

37

654164R91

CHAIN (AG)

CONVEYOR ASSY, gatherer, includes ref. nos. 38, 39 and 40

1шт.

38

935619R91

GATHERING CHAIN

CONVEYOR ASSY, gatherer section

1шт.

39

587371R93

DRAG LINK

LINK, connecting

1шт.

40

450423R1

DRAG LINK

LINK, roller

1шт.

41

162510C1

SPACER,1 3/8" Tube x 7/8"

gatherer driven sprocket

2шт.

42

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING, 1/4-28NS 45 deg lube

8шт.

43

939475R91

BEARING

ASSY, gatherer driven shaft

2шт.

44

557115R11

COLLAR

COLLAR W/SET SCREW, lkg

2шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16 hex-soc-hd cup-pt

2шт.

45

939460R91

FLANGE

ASSY, gatherer driven brg

2шт.

46

939461R1

FLANGE

gatherer driven brg

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

47

162966C91

COUPLING ASSY, gatherer outer male, 743 w/28 or 30 inch rows serial no. 979 and below, 744 w/36 or 38 inch rows serial no. 2019 and below

2шт.

18766R1

BOLT,Hex, 5/16"-18 x 1 3/4", G2

5/16 x 1-3/4 znd hex-hd

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

48

162963C91

COUPLING ASSY, gath outer female, 743 w/28 inch rows serial no. 979 and below, 744 w/36 inch rows serial no. 2019 and below

2шт.

48

162961C91

COUPLING ASSY, gath outer female, 743 w/30 inch rows serial no. 979 and below, 744 w/38 inch rows serial no. 2019 and below

2шт.

18766R1

BOLT,Hex, 5/16"-18 x 1 3/4", G2

5/16 x 1-3/4 znd hex-hd

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

49

162968C91

COUPLING ASSY, gatherer inner male, 28 inch rows

2шт.

49

151635C91

COUPLING ASSY, gatherer inner male, 743 w/30 inch rows serial no. 501 and above, 743 w/32 inch rows serial no. 979 and below

2шт.

49

151638C91

COUPLING ASSY, gatherer inner male, 744 corn head

2шт.

50

162961C91

COUPLING ASSY, gatherer inner female, 28 inch rows

2шт.

50

151640C91

COUPLING ASSY, gatherer inner female, 743 w/30 inch rows serial no. 501 and above, 743 w/32 inch rows serial no. 979 and below

2шт.

50

151643C91

COUPLING ASSY, gath inner female, 744 corn head

2шт.

18767R1

BOLT,Hex, 5/16"-18 x 2", G2

5/16 x 2 znd hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

51

162959C91

COUPLING ASSY, gath outer female, 743 w/32 inch rows serial no. 979 and below, 744 w/40 inch rows serial no. 501 and above

2шт.

52

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING, 1/4-28 NS 45 deg angle lub, 743CH S/N 795 & above, 744CH S/N 1286 & above

8шт.

53

618210R91

BEARING

ASSY, gatherer shaft upper, 743CH serial no. 794 & below, 744CH serial no. 1285 & below

8шт.

53

171879C91

BEARING

ASSY, gatherer shaft upper, 743CH serial no. 795 & above, 744CH serial no. 1286 & above

8шт.

54

173289C1

COUPLING ASSY, gatherer outer, 743 w/28 inch rows serial no. 980 and above, 744 w/36 inch rows serial no. 2020 and above

2шт.

54

173291C1

COUPLING ASSY, gatherer outer, 743 w/30 inch rows serial no. 980 and above, 744 w/38 inch rows serial no. 2020 and above

2шт.

55

SPROCKET, auger driven 60T, refer to auger, doors and shields unit for listing

1шт.

56

SPROCKET, gatherer and auger drive 20T, refer to main drive unit for listing

1шт.
