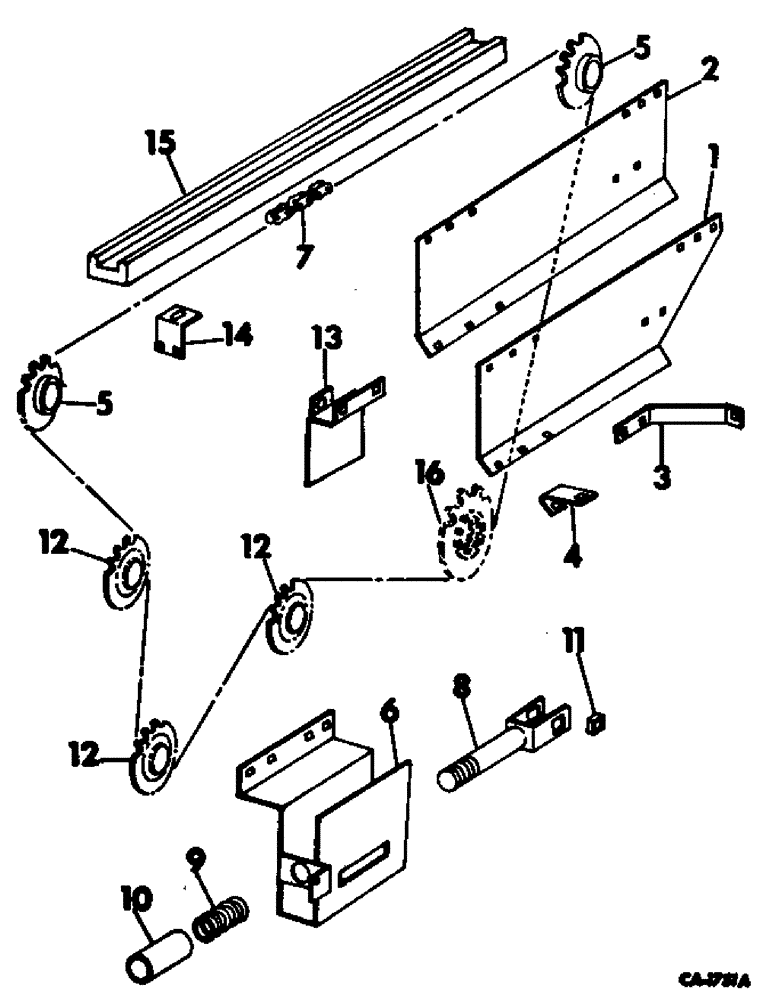

Запчасти Case IH 743 (M-25) - STALK ROLL DRIVE, 743 S/N 980 & ABOVE, 744 S/N 2020 & ABOVE (58) - ATTACHMENTS/HEADERS

1

168035C2

SHIELD, stalk roll drive chain LH, 743 corn head

1шт.

1

168036C2

SHIELD, stalk roll drive chain RH, 743 corn head

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

2

168399C2

SHIELD, stalk roll drive chain LH, 744 corn head

1шт.

2

168400C2

SHIELD, stalk roll drive chain RH, 744 corn head

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

3

173440C1

SUPPORT, drive chain shield inner

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

4шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

4

169131C1

SUPPORT, stalk roll drive shield outer

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

5

163349C1

SPROCKET ASSY.

SPROCKET, stalk roll driven 15T

4шт.

6

169197C1

BRACKET ASSY, stalk roll drive tightener LH, 743 corn head

1шт.

6

162612C91

BRACKET ASSY, stalk roll drive tightener LH, 744 corn head

1шт.

6

169198C1

BRACKET ASSY, stalk roll drive tightener RH, 743 corn head

1шт.

6

162613C91

BRACKET ASSY, stalk roll drive tightener RH, 744 corn head

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

6шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

6шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

6шт.

7

CHAIN, stalk roll drive roller, 28 inch rows, use 133 links from a 10 ft roll marked 1793D and 1 connecting link 1786D

2шт.

7

CHAIN, stalk roll drive roller, 30 inch rows, use 137 links from a 10 ft roll marked 1793D and 1 connecting link 1786D

2шт.

7

CHAIN, stalk roll drive roller, 36 inch rows, use 135 links from a 10 ft roll marked 1793D and 1 connecting link 1786D

2шт.

7

CHAIN, stalk roll drive roller, 38 inch rows, use 141 links from a 10 ft roll marked 1793D and 1 connecting link 1786D

2шт.

7

CHAIN, stalk roll drive roller, 40 inch rows, use 147 links from a 10 ft roll marked 1793D and 1 connecting link 1786D

2шт.

8

151656C91

YOKE ASSY, stalk roll drive chain

2шт.

21353R1

NUT, 7/8 znp nylon insert hex

2шт.

21212R1

WASHER

25/32 x 2 x 11 ga C-Z

2шт.

9

544

CANVAS

SPRING, drive chain tightener rod

2шт.

10

589856R1

SPACER, drive chain tightener

2шт.

11

156691C1

BAR

BLOCK, stalk roll drive chain tightener

4шт.

12

629972R91

DRIVE SPROCKET,15T

SPROCKET ASSY, chain tightener and idler

6шт.

18825R1

BOLT,Hex, 5/8" - 11 x 2 3/4", Gr 2

5/8 x 2-3/4 hex-hd mach

2шт.

18827R1

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 2

5/8 x 3-1/2 hex-hd mach

4шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 C-Z hex

6шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga C-Z

1шт.

21782R1

WASHER

21/32 x 1-1/2 x 16 ga C-Z

1шт.

13

168427C1

BRACKET

ASSY, drive chain idler, 744 corn head

2шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

4шт.

271501

SOCKET

NUT, 7/16 C-Z hex

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

14

163397C1

ANGLE, stalk roll drive guide

4шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

15

162720C1

GUIDE, stalk roll chain upper, 743 corn head

2шт.

15

162719C1

BOARD

GUIDE, stalk roll drive chain, 744 corn head

2шт.

16888R1

HARDWARE,Short NK, 5/16"-18 x 1 1/4", G2

BOLT, 5/16 x 1-1/4 znd sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.
