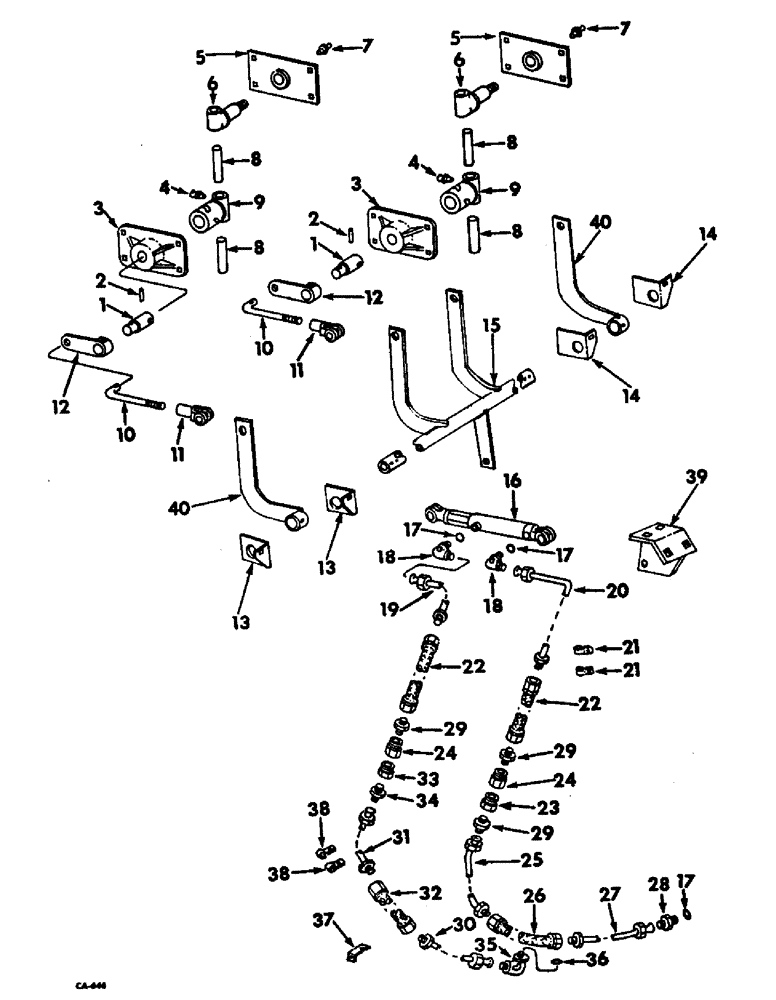

Запчасти Case IH 743 (M-21) - STALK ROLL CONTROL, 743 S/N 979 & BELOW, 744 S/N 2019 & BELOW (58) - ATTACHMENTS/HEADERS

1

166168C1

SHAFT, stalk roll cam adj

4шт.

22480R1

WASHER

29/32 x 1-1/2 x 22 ga C-Z

16шт.

2

584453R1

PIN

stalk roll cam

4шт.

3

165002C1

HOUSING, stalk roll cam

4шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

16шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

16шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

16шт.

4

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 PTF 65 deg lub

4шт.

5

162871C91

HUB ASSY, stalk roll support

4шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

16шт.

271501

SOCKET

NUT, 7/16 C-Z hex

16шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

16шт.

6

162876C1

ANCHOR, stalk roll support

4шт.

102609R1

LOCK NUT,3/4"-16

NUT, 3/4-16 znp nylon insert hex

4шт.

22241R1

WASHER

1-3/32 x 1-3/4 x 16 ga C-Z

1шт.

21713R1

WASHER,25/32" x 1 3/4" x .120"

25/32 x 1-3/4 x 11 ga C-Z

4шт.

7

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 PTF 65 deg lub

4шт.

8

158783C1

BUSHING

stalk roll support

8шт.

120371

NUT,1/2"-20, G5

8шт.

786815

HUB

SCREW, 1/2-20 x 3-3/4 C-Z hex-hd cap

8шт.

138549

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

8шт.

9

162930C1

CAM, stalk roll adj LH

2шт.

9

162931C1

CAM, stalk roll adj RH

2шт.

10

163040C1

ROD, stalk roll control

4шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

4шт.

11

144245

ADJUSTABLE CLEVIS,1/2"-20 x 3"

CLEVIS, 1/2 x 3 C-Z light rod end

4шт.

648002

KNIFE

1/8" x 3/4"

4шт.

138086

CLEVIS PIN,1/2" x 1.360"

PIN, 1/2 x 1-27/64 C-Z rod end

4шт.

12

162868C1

ARM, stalk roll control

4шт.

577139R1

LOCK PIN,3/8" x 1 1/2", Slotted

Pin, 3/8" x 1 1/2", Slotted

4шт.

13

163274C1

ANGLE, stalk roll control LH

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

14

163275C1

ANGLE, stalk roll control RH

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

15

163279C91

TUBE ASSY, stalk roll control, 743 corn head

1шт.

15

163280C91

TUBE ASSY, stalk roll control, 744 corn head

1шт.

23281R1

PIN, 3/8 x 1-1/2 slt-spring

2шт.

16

387864R91

CYLINDER ASSY, stalk roll adj control

1шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

2шт.

21890R1

PIN, 5/8 x 1-3/4 C-Z std-hd

2шт.

22258R1

WASHER

21/32 x 1 x 22 ga C-Z

2шт.

17

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, cylinder and valve

3шт.

18

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

90 deg 3/8 tube to 3/8

2шт.

19

168024C1

TUBE ASSY, cylinder lower front

1шт.

20

168025C1

TUBE ASSY, cylinder lower rear

1шт.

21

589980R2

CLIP

CLAMP, short for 3/8 tube

5шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

5шт.

120376

NUT,5/16"-18, G5

5шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

22

632455R91

HOSE

ASSY, cyl lower tube

2шт.

23

166123C91

COUPLING

self-sealing male, Serial Range: connect-hose

1шт.

24

166122C91

COUPLING

self sealing female

2шт.

25

167824C1

TUBE ASSY, cylinder upper

1шт.

26

346944R91

HOSE ASSY.

HOSE ASSY, upper tube to valve tube

1шт.

27

167825C1

TUBE ASSY, upper, Serial Range: tube-valve

1шт.

28

9410202R1

CONNECTOR, flared tube 3/8 male

1шт.

29

9402708

HYD CONNECTOR,9/16"-18, 37 Degree x 1/4"-18, NPTF

CONNECTOR, 37 deg flared tube

3шт.

30

166374C91

TUBE, upper pressure

1шт.

31

166375C91

TUBE, feeder pressure

1шт.

32

346944R91

HOSE ASSY.

HOSE, upper pressure

1шт.

33

166123C91

COUPLING

feeder pressure tube

1шт.

34

9402708

HYD CONNECTOR,9/16"-18, 37 Degree x 1/4"-18, NPTF

CONNECTOR, 9/16-18 & 1/4-18 NPSF 37 hyd flared

1шт.

35

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 37 deg hyd flared tube 90 deg C-Z

1шт.

36

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 tubing

1шт.

37

165822C1

SUPPORT, hyd pressure tube clip

1шт.

38

589980R2

CLIP

CLAMP, upper pressure

3шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

3шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

39

166276C91

SUPPORT ASSY, hyd cyl roll control

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

2шт.

18698R1

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 2", Gr 2

BOLT, 7/16 x 2 C-Z sq-nk crg

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

3шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

3шт.

40

163111C91

ARM ASSY, stalk roll control rod

2шт.

23281R1

PIN, 3/8 x 1-1/2 C-Z slt-spring

2шт.
