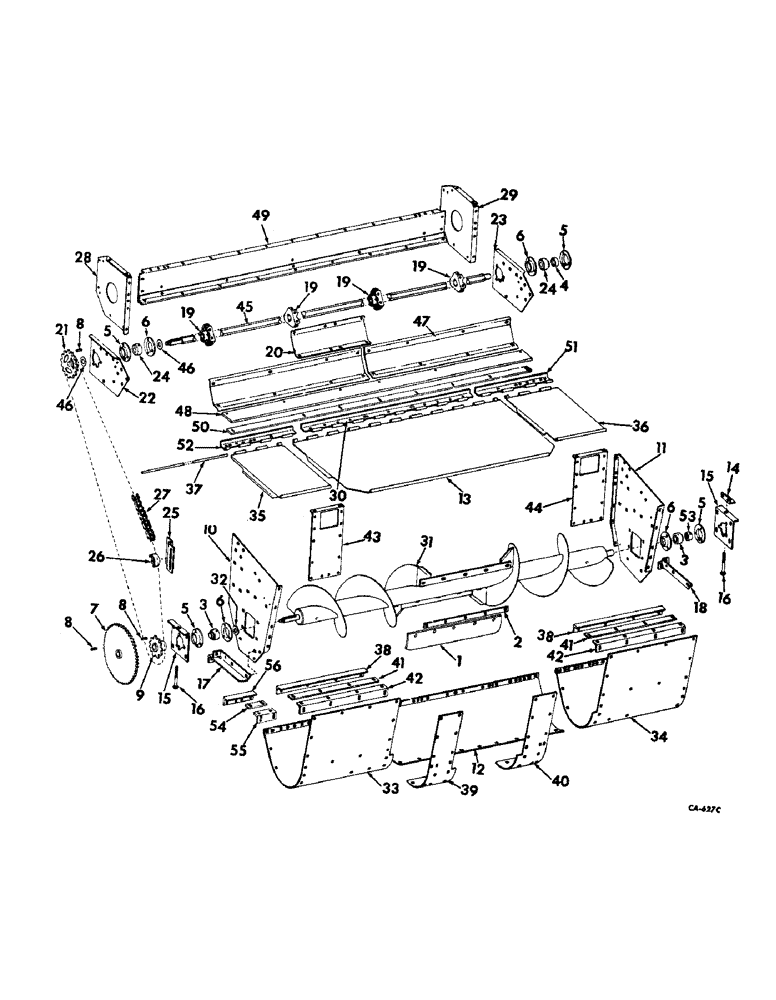

Запчасти Case IH 733 (L-07) - AUGER, BEATER & BEATER DRIVE, 733 S/N 575 & BELOW, 734 S/N 536 & BELOW (58) - ATTACHMENTS/HEADERS

1

162993C1

STRIP

BAT, auger

2шт.

2

162992C1

RETAINER, auger bat

2шт.

18685R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8 x 1-1/2 C-Z sq-nk crg

10шт.

120377

NUT,3/8" - 16, Gr 5

10шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

10шт.

3

156011C91

BALL BEARING

BEARING ASSY, aguer ball

2шт.

4

557115R11

COLLAR

COLLAR ASSY, bearing locking

1шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16 hex-soc-hd cup-pt set

1шт.

5

939460R91

FLANGE

ASSY, auger bearing

4шт.

6

939461R1

FLANGE

auger bearing

4шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

6шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

6шт.

120376

NUT,5/16"-18, G5

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

7

162994C91

SPROCKET ASSY, auger driven 60T

1шт.

8

577147R1

KEY

5/16 x 1-3/16 sq-parallel

3шт.

9

166213C91

SPROCKET ASSY, beater drive left 11T

1шт.

10

169071C1

SECTION, auger trough left

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

4шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

3шт.

20485R1

BOLT,Short NK, 7/16"-14 x 3/4", G5. Full Thd

7/16 x 3/4 znd sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

7шт.

271501

SOCKET

NUT, 7/16 C-Z hex

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

7шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

11

169072C1

SECTION, auger trough right

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

4шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

3шт.

20485R1

BOLT,Short NK, 7/16"-14 x 3/4", G5. Full Thd

7/16 x 3/4 znd sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

7шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

7шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

12

163092C2

TROUGH, auger center

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

9шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

9шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss hd

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

9шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

2шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

4шт.

13

168328C11

DOOR ASSY, auger center

1шт.

14

166045C1

ANGLE, auger adjustment

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

15

166046C1

BRACKET, auger bearing

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

16

455300R1

BOLT, auger bearing bracket

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

611346R1

WASHER

13/32 x 7/8 x 16 ga C-Z

4шт.

17

167859C2

SUPPORT, auger trough end LH

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

18

167860C2

SUPPORT, auger trough end RH

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

19

166390C1

SUPPORT, beater section

4шт.

168102C1

PIN

5/16 x 1 type 1 groove

4шт.

20

939090R1

REINFORCEMENT, beater section

3шт.

21

162949C1

SPROCKET, beater driven

1шт.

22

163037C1

BRACKET, beater brg outer LH

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

5шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

3шт.

120377

NUT,3/8" - 16, Gr 5

5шт.

271501

SOCKET

NUT, 7/16 C-Z hex

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

3шт.

23

163038C1

BRACKET, beater brg outer RH

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

5шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

3шт.

120377

NUT,3/8" - 16, Gr 5

5шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

3шт.

24

939475R91

BEARING

ASSY, beater shaft ball

2шт.

25

632194R1

BRACKET, beater chain tightener

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

26

583620R1

BLOCK

beater chain tightener LH

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

27

CHAIN ASSY, beater drive roller, use 45 links from 10 ft roll marked 569089R91, 2 offset links 456929R91 and 1 connecting link 587372R91

1шт.

28

162779C1

SIDE, beater LH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

7шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

3шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

4шт.

29

162780C1

SIDE, beater RH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

7шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

SCREW, 5/16 x 1/2 C-Z whiz lock

3шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

4шт.

30

162782C1

HINGE, auger door center

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange whiz lock

7шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

7шт.

31

163005C91

AUGER ASSY, 733 corn head

1шт.

31

163002C91

AUGER ASSY, 734 corn head

1шт.

163307C1

JAM NUT

3/4-16 NF C-Z slt hex jam

1шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

131050

WASHER,1 1/4"

1 1/4"

1шт.

21713R1

WASHER,25/32" x 1 3/4" x .120"

25/32 x 1-3/4 x 11 ga C-Z

1шт.

32

632156R1

THRUST WASHER

auger left shaft

5шт.

33

163096C11

TROUGH ASSY, auger outer LH, 733 corn head

1шт.

33

163098C11

TROUGH ASSY, auger outer LH, 734 corn head

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

4шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

5шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 whiz lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

1шт.

34

163097C11

TROUGH ASSY, auger outer RH, 733 corn head

1шт.

34

163099C11

TROUGH ASSY, auger outer RH, 734 corn head

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

4шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

5шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss hd

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

1шт.

35

163148C1

DOOR, auger outer left, 733 corn head

1шт.

35

163127C91

DOOR ASSY, auger outer left, 734 corn head

1шт.

36

163149C1

DOOR, auger outer right, 733 corn head

1шт.

36

163128C91

DOOR ASSY, auger outer right, 734 corn head

1шт.

37

939019R1

ROD, auger outer door hinge, 733 corn head

1шт.

37

939018R1

ROD, auger outer door hinge, 734 corn head

1шт.

38

163089C1

ANGLE, auger door, 733 corn head

2шт.

38

163090C1

ANGLE, auger door, 734 corn head

2шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

4шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

2шт.

120376

NUT,5/16"-18, G5

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

39

163094C1

FILLER, auger trough inner left, 734 corn head

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

5шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

40

163095C1

FILLER, auger trough inner right, 734 corn head

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

5шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

41

168172C1

STRIP, auger stripper, 733 corn head

2шт.

41

168173C1

STRIP, auger stripper, 734 corn head

2шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

8шт.

120376

NUT,5/16"-18, G5

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

8шт.

42

168179C1

ANGLE, auger stripper, 733 corn head

2шт.

42

168180C1

ANGLE, auger stripper, 734 corn head

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

8шт.

120376

NUT,5/16"-18, G5

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

43

168308C1

SECTION, auger front outer LH, 734 corn head

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

5шт.

120376

NUT,5/16"-18, G5

5шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

44

168309C1

SECTION, auger front outer RH, 734 corn head

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

5шт.

120376

NUT,5/16"-18, G5

5шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

45

166396C1

SHAFT, beater, 733 corn head

1шт.

45

166395C2

SHAFT, beater, 734 corn head

1шт.

NLS

NO LONGER SERVICED

5/8-18 C-Z slt-hex

1шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

492-11112

LOCK WASHER,1 1/8"

1-1/8 C-Z med lock

1шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga C-Z

1шт.

46

472323R1

WASHER

beater shaft

4шт.

47

166394C1

SECTION, beater, 733 corn head

6шт.

47

166401C1

SECTION, beater, 734 corn head

6шт.

181595

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

SCREW, 5/16 x 3/4 hex-hd cap

24шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

24шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

24шт.

48

166385C1

BAT, beater drum, 733 corn head

3шт.

48

166387C1

BAT, beater drum, 734 corn head

3шт.

18475R1

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 2

5/16 x 1-1/4 hex-hd mach

1шт.

9411638

LOCK NUT,5/16"-18, GA

NUT, 5/16 C-Z hex lock

1шт.

49

152100C1

SHIELD, beater, 733 corn head

1шт.

49

152101C1

SHIELD, beater, 734 corn head

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange whiz lock

4шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

4шт.

50

168226C1

STRIP, beater stripper, 733 corn head

1шт.

50

168227C1

STRIP, beater stripper, 734 corn head

1шт.

18697R1

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 3/4", Gr 2

BOLT, 5/16 x 3/4 znd sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

134238R1

WASHER

13/32 x 1 x 16 ga C-Z

1шт.

51

939151R2

HINGE, auger door outer LH, 733 corn head

1шт.

51

939148R2

HINGE, auger door outer LH, 734 corn head

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

1шт.

52

939152R2

HINGE, auger door outer RH, 733 corn head

1шт.

52

939149R2

HINGE, auger door outer RH, 734 corn head

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

1шт.

53

557995R11

COLLAR

ASSY, bearing locking

1шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16 hex-soc-hd cup-pt set

1шт.

54

168177C1

STRIP, auger extension, 734 corn head

2шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

4шт.

55

168184C1

ANGLE, auger stripper extension, 734 corn head

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

56

167948C1

EXTENSION, auger door angle, 734 corn head

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.
