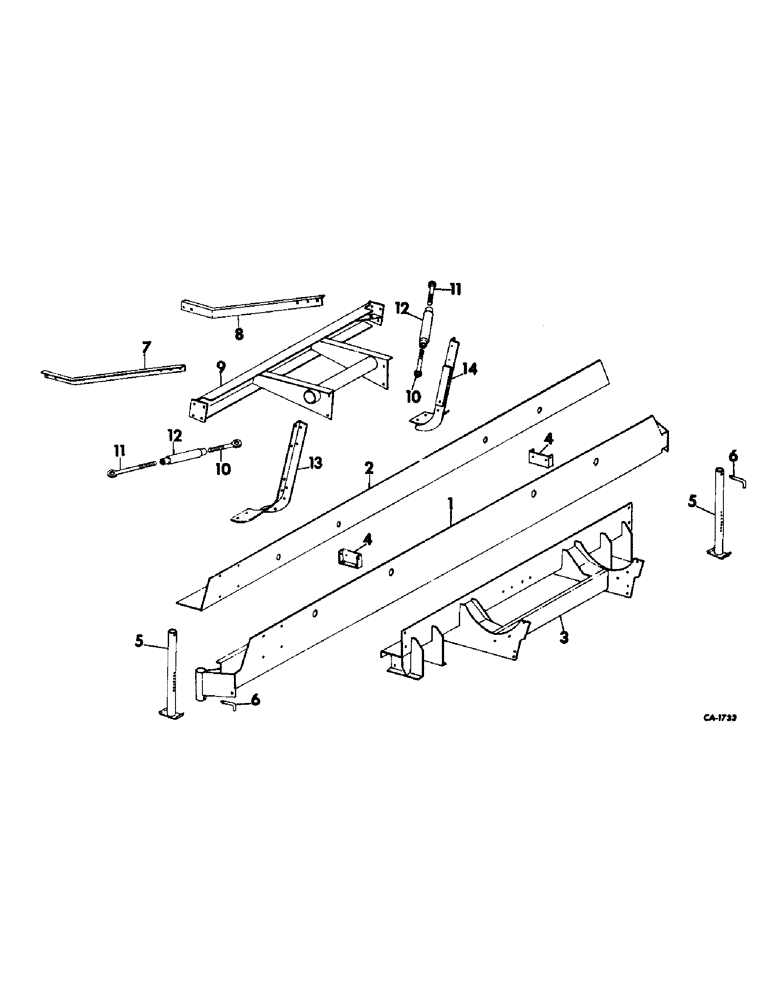

Запчасти Case IH 733 (L-05) - MAIN FRAME, FRONT EXTENSION & STAND, 733 S/N 576 & ABOVE, 734 S/N 537 & ABOVE (58) - ATTACHMENTS/HEADERS
№
Артикул
Название
Примечание
Количество
1
173458C1
FRAME ASSY, main lower, 733 corn head
1шт.
1
173464C1
FRAME ASSY, main lower, 734 corn head
1шт.
2
173483C1
FRAME, main upper, 733 corn head
1шт.
2
173484C1
FRAME, main upper, 734 corn head
1шт.
18421R1
CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2
BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd
8шт.
NLS
NO LONGER SERVICED
NUT, 7/16 C-Z hex
8шт.
120383
LOCK WASHER,Helical Spring, 7/16"
WASHER, LOCK, 7/16"
8шт.
3
173492C1
SUPPORT ASSY, main frame
1шт.
18421R1
CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2
BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd
5шт.
271501
SOCKET
NUT, 7/16-14 C-Z hex
5шт.
120383
LOCK WASHER,Helical Spring, 7/16"
WASHER, LOCK, 7/16"
5шт.
4
173518C1
BRACE, main frame lower tie
2шт.
5
166702C91
STAND ASSY
2шт.
6
589584R1
PIN
stand
2шт.
517843R1
COTTER PIN
PIN, 3/16 qa cot
2шт.
7
173271C1
ANGLE, stalk roll outer frame supt LH, 36 inch rows
1шт.
7
173273C1
ANGLE, stalk roll outer frame supt LH, 30 and 38 inch rows
1шт.
18695R1
CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2
BOLT, 7/16 x 1-1/4 znd sq-nk crg
4шт.
NLS
NO LONGER SERVICED
NUT, 7/16-14 C-Z hex
4шт.
120383
LOCK WASHER,Helical Spring, 7/16"
WASHER, LOCK, 7/16"
4шт.
8
173272C1
ANGLE, stalk roll outer frame supt RH, 36 inch rows
1шт.
8
173274C1
ANGLE, stalk roll outer frame supt RH, 30 and 38 inch rows
1шт.
18695R1
CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2
BOLT, 7/16 x 1-1/4 znd sq-nk crg
4шт.
271501
SOCKET
NUT, 7/16-14 C-Z hex
4шт.
120383
LOCK WASHER,Helical Spring, 7/16"
WASHER, LOCK, 7/16"
4шт.
9
173301C1
EXTENSION ASSY, feeder front, 733 corn head
1шт.
9
173307C1
EXTENSION ASSY, feeder front, 734 corn head
1шт.
18421R1
CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2
BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd
8шт.
18695R1
CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2
BOLT, 7/16 x 1-1/4 znd sq-nk crg
2шт.
19041R1
BOLT,7/16"-14 x 1 1/4", G2, Full Thd
7/16 x 1-1/4 znd no. 3 plow
2шт.
NLS
NO LONGER SERVICED
NUT, 7/16 C-Z hex
12шт.
120383
LOCK WASHER,Helical Spring, 7/16"
WASHER, LOCK, 7/16"
12шт.
10
173326C1
ROD, diagonal brace LH thd inner
2шт.
18839R1
BOLT,Hex, 3/4" x 2 1/4"
3/4 x 2-1/4 znd hex-hd mach
2шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4"
2шт.
11
173327C1
ROD, diagonal brace RH thd outer, 733 corn head
2шт.
11
174124C1
ROD, diagonal brace outer, 734 corn head
2шт.
NLS
NO LONGER SERVICED
7/8-14 C-Z hex jam
2шт.
20341R1
COTTER PIN,1/4" x 2"
Pin, Split (Cotter), 1/4" x 2"
2шт.
21667R1
HEADED PIN,3/4" x 3 3/4"
PIN, 3/4 x 3-1/2 C-Z std-hd
2шт.
12
173331C1
TURNBUCKLE, diagonal brace
2шт.
13
173332C1
ANGLE ASSY, auger trough LH
1шт.
18673R1
CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2
BOLT, 5/16 x 1/2 znd sq-nk crg
4шт.
16897R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
BOLT, 5/16 x 3/4 znd sq-nk crg
6шт.
18695R1
CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2
BOLT, 7/16 x 1-1/4 znd sq-nk crg
1шт.
19040R1
CARRIAGE BOLT,#3, 7/16" - 14 x 1", Gr 2
BOLT, 7/16 x 1 znd no. 3 plow
1шт.
120376
NUT,5/16"-18, G5
10шт.
271501
SOCKET
NUT, 7/16 znd hex
2шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
10шт.
120383
LOCK WASHER,Helical Spring, 7/16"
WASHER, LOCK, 7/16"
2шт.
14
173333C1
ANGLE ASSY, auger trough RH
1шт.
18673R1
CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2
BOLT, 5/16 x 1/2 znd sq-nk crg
4шт.
16897R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
BOLT, 5/16 x 3/4 znd sq-nk crg
6шт.
18695R1
CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2
BOLT, 7/16 x 1-1/4 znd sq-nk crg
1шт.
19040R1
CARRIAGE BOLT,#3, 7/16" - 14 x 1", Gr 2
BOLT, 7/16 x 1 znd no. 3 plow
1шт.
120376
NUT,5/16"-18, G5
10шт.
NLS
NO LONGER SERVICED
NUT, 7/16 znd hex
2шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
10шт.
120383
LOCK WASHER,Helical Spring, 7/16"
WASHER, LOCK, 7/16"
2шт.
Выбрано товаров: 60
