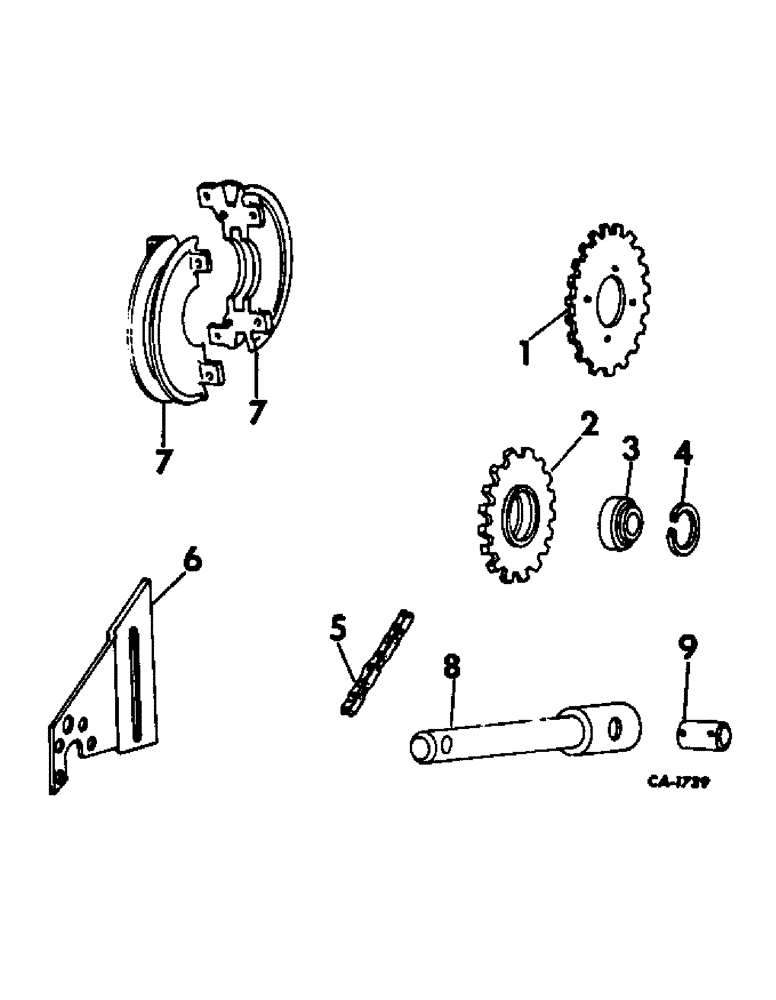

Запчасти Case IH 733 (L-45) - COMBINE COMPLETING PARTS, FOR 303, 403, 615 OR 715 COMBINE (58) - ATTACHMENTS/HEADERS

1

150151C1

SPROCKET, feeder drive 26T, 303 or 615 combine

1шт.

1

589362R1

SPROCKET, feeder drive 23T, 403 or 715 combine

1шт.

2

632125R1

SPROCKET, feeder drive idler 20T, 303 or 615 combine

1шт.

2

589538R91

SPROCKET ASSY.

SPROCKET ASSY, feeder drive idler 17T, 403 or 715 combine

1шт.

3

580095R91

BALL BEARING

BEARING ASSY, idler sprocket ball

1шт.

4

555602R1

RING

SNAP RING, idler sprocket brg

1шт.

5

CHAIN ASSY, feeder drive roller, 303 or 615 combine, use 123 links from a 10-ft roll marked 1793D, one offset link 1318D and one connecting link 1789D

1шт.

5

CHAIN ASSY, feeder drive roller, 403 or 715 combine, use 99 links from a 10-ft roll marked 1794D, one offset link 1398D and one connecting link 1397D

1шт.

6

170694C1

SUPPORT, feeder drive idler sprocket

1шт.

22861R1

BOLT, 7/8 x 3 znd sq-nk crg

1шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1/2 x 1 znd hex-hd cap

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

131047

WASHER,7/8"

7/8"

1шт.

21041R1

WASHER

17/32 x 2 x 16 ga C-Z

1шт.

21747R1

WASHER,1.22" ID x 2" OD x 0.07" Thk

1-7/32 x 2 x 16 ga C-Z

3шт.

21714R1

WASHER

29/32 x 1-1/2 x 11 ga C-Z

4шт.

7

152307C11

PULLEY ASSY, feeder drive split, 303 or 615 combine

1шт.

7

633764R11

PULLEY ASSY, feeder drive split, 403 or 715 combine

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

12/ x 1-1/4 hex-hd mach

4шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

2шт.

19328R1

LOCK PIN,3/8" x 3/4", Slotted

2шт.

Q3542

HEADED PIN,11.1mm OD x 38.1mm L

PIN, 7/16 x 1-1/2 std-hd

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

8

634167R91

EXTENSION ASSY, platform lift cyl, not for use w/feeder hitch

2шт.

9

569335R1

PIN, cyl lift extension, not for use w/feeder hitch

2шт.

137258

COTTER PIN

3/16" x 1 3/4"

2шт.
