Запчасти Case IH 733 (L-41) - FEEDER ADAPTER AND DRIVE PARTS, FOR 815 COMBINE (58) - ATTACHMENTS/HEADERS

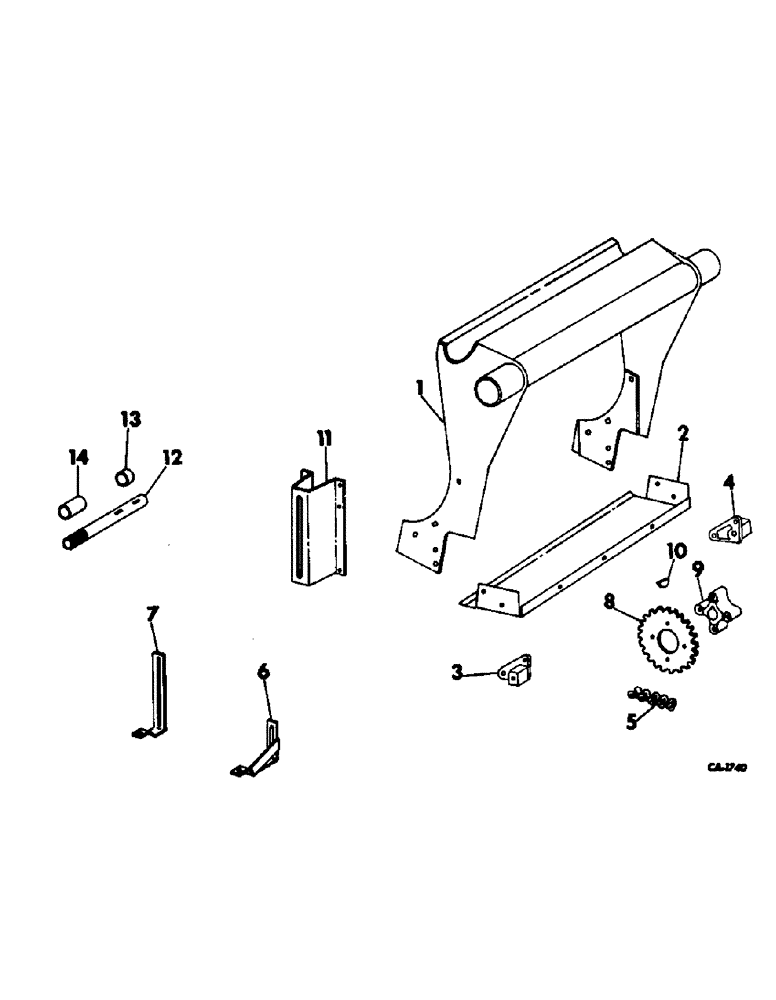

Схема запчастей Case IH 733 - (L-41) - FEEDER ADAPTER AND DRIVE PARTS, FOR 815 COMBINE (58) - ATTACHMENTS/HEADERS
12
10
4
7
9
8
3
13
14
2
11
6
1
5

Артикул

Название

Примечание

Количество

1

173665C1

ADAPTER ASSY, feeder

1шт.

18696R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/2", Gr 2

BOLT, 7/16 x 1-1/2 znd sq-nk crg

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 C-Z hex

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

2

173670C1

BOTTOM, feeder adapter

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

3

165486C1

SUPPORT

feeder adapter lower LH

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2 x 1-1/2 znd hex-hd cap

2шт.

433156

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

SCREW, 1/2 x 4-1/2 znd hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

4

165487C1

SUPPORT

feeder adapter lower RH

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2 x 1-1/2 znd hex-hd cap

2шт.

433156

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

SCREW, 1/2 x 4-1/2 znd hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

5

CHAIN, main drive, use 205 links from a 10-ft roll marked 1793D, 1 offset link 1318D, & 1 connecting link 1786D

1шт.

5

CHAIN, main drive ext, 733 serial no. 575 and below, 734 serial no. 575 and below, use 3 links from 10-ft roll marked 1793D and 1 connecting link 1786D

1шт.

6

172559C1

SUPPORT ASSY, chain guide rear

1шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

2шт.

7

172558C1

SUPPORT, chain guide front

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

2шт.

8

166003C1

SPROCKET, main drive 29T

1шт.

9

173686C1

HUB, main drive sprocket

2шт.

18786R1

BOLT,Hex, 3/8"-16 x 3 1/2", G2

3/8 x 3-1/2 znd hex-hd mach

4шт.

18787R1

BOLT,Hex, 3/8"-16 x 4", G2

3/8 x 4 znd hex-hd mach

4шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

648002

KNIFE

1/8" x 3/4"

2шт.

21992R1

HEADED PIN,5/16" x 2 3/4"

PIN, 5/16 x 2-3/4 C-Z std-hd

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

10

27958A

KEY

3/8 x 2-1/8 Woodruff

2шт.

11

172568C1

SUPPORT, main drive tightener

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

12

172567C1

SHAFT, feeder platform drive

1шт.

13

172570C1

SPACER, feeder platform drive shaft in

1шт.

608085R1

WASHER

1-13/32 x 2 x 16 ga C-Z

3шт.

14

172571C1

SPACER, feeder platform drive shaft out

1шт.

Выбрано товаров: 44
