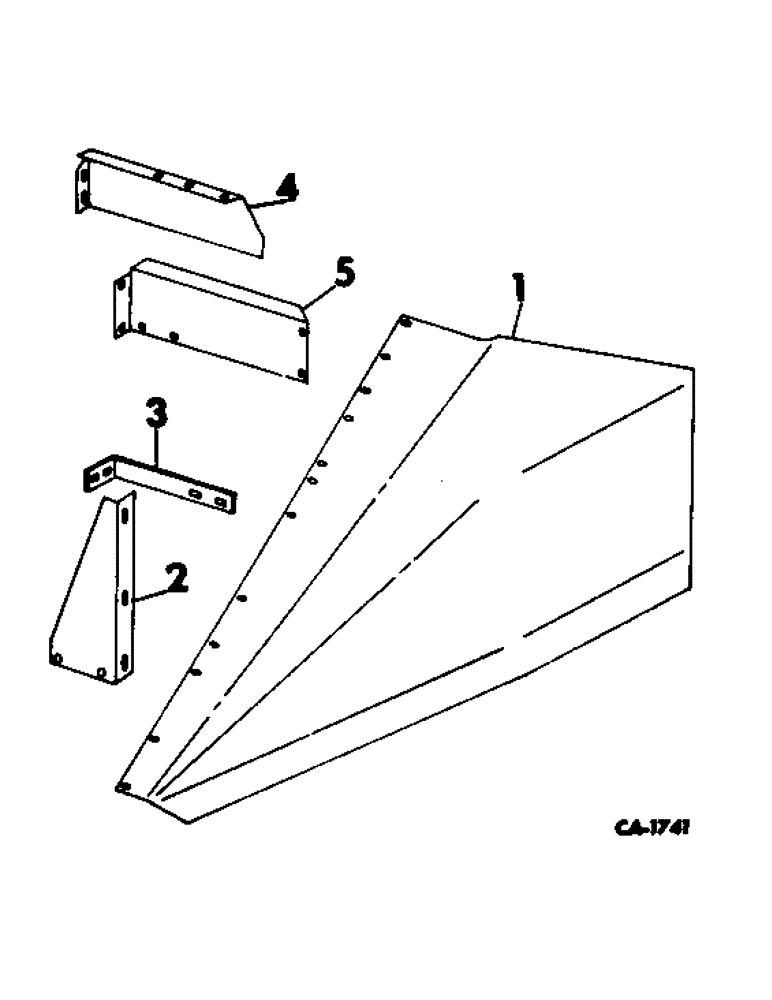

Запчасти Case IH 733 (L-37) - WHEEL SHIELDS, 733 S/N 576 & ABOVE, 734 S/N 537 & ABOVE (58) - ATTACHMENTS/HEADERS

1

167067C91

SHIELD ASSY, wheel LH, 733 corn head

1шт.

1

168436C1

SHIELD ASSY, wheel LH, 734 corn head

1шт.

1

167068C91

SHIELD ASSY, wheel RH, 733 corn head

1шт.

1

168437C1

SHIELD ASSY, wheel RH, 734 corn head

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

22шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 C-Z whiz lock

22шт.

2

167073C1

SUPPORT, wheel shield front LH

1шт.

2

167074C1

SUPPORT, wheel shield front RH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

6шт.

632226

SCREW, 5/16 x 1/2 C-Z whiz lock

6шт.

3

167079C1

BRACE, wheel shield front, 733 corn head

2шт.

3

167076C1

BRACE, wheel shield front, 734 corn head

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

4шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

4

173285C1

BRACKET, wheel shield upper rear LH, 30 inch rows

1шт.

4

173773C1

BRACKET, wheel shield upper rear LH, 36 inch rows

1шт.

4

173775C1

BRACKET, wheel shield upper rear LH, 38 inch rows

1шт.

4

173286C1

BRACKET, wheel shield upper rear RH, 30 inch rows

1шт.

4

173774C1

BRACKET, wheel shield upper rear RH, 36 inch rows

1шт.

4

173776C1

BRACKET, wheel shield upper rear RH, 38 inch rows

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

10шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

6шт.

5

173287C1

SUPPORT, wheel shield lower rear LH, 30 inch rows

1шт.

5

173779C1

SUPPORT, wheel shield lower rear LH, 36 inch rows

1шт.

5

173781C1

SUPPORT, wheel shield lower rear LH, 38 inch rows

1шт.

5

173288C1

SUPPORT, wheel shield lower rear RH, 30 inch rows

1шт.

5

173780C1

SUPPORT, wheel shield lower rear RH, 36 inch rows

1шт.

5

173782C1

SUPPORT, wheel shield lower rear RH, 38 inch rows

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.
