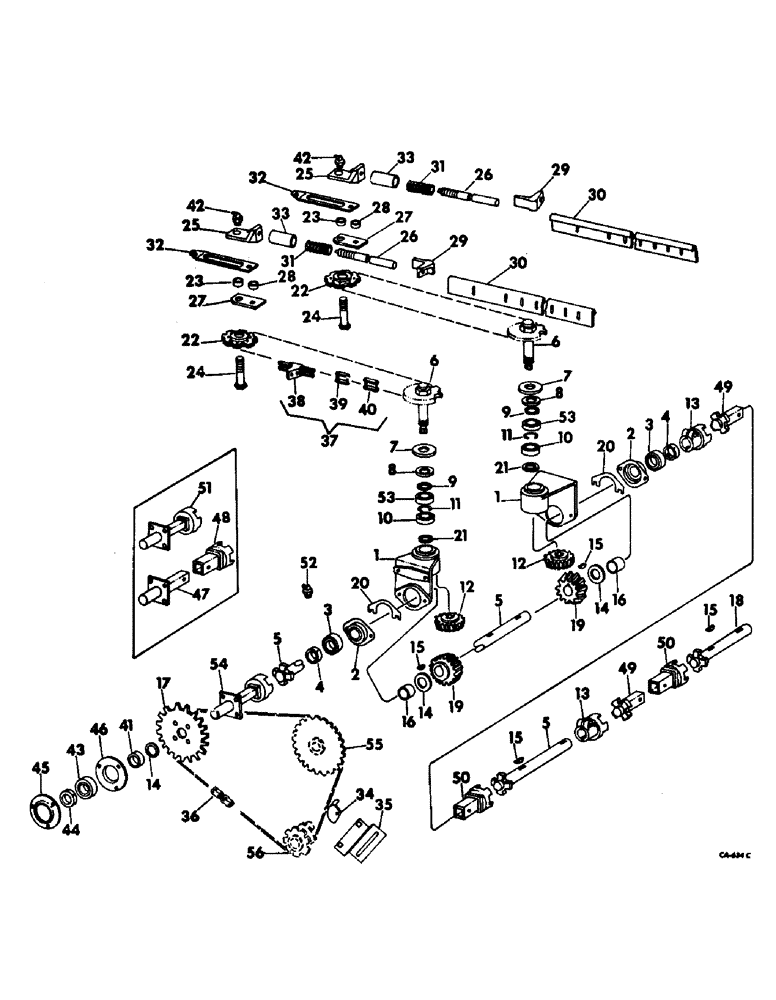

Запчасти Case IH 733 (L-28) - GATHERER AND GATHERER DRIVE (58) - ATTACHMENTS/HEADERS

1

162512C2

HOUSING, gatherer drive inner brg

6шт.

180145

BOLT,Hex, 7/16" - 14 x 1", Gr 5

SCREW, 7/16 x 1 C-Z hex-hd cap

12шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

12шт.

2

162513C91

BEARING HOUSING

HOUSING ASSY, gatherer drive outer brg, includes ref nos. 3 and 4

6шт.

180151

BOLT,Hex, 7/16" - 14 x 1 3/4", Gr 5

SCREW, 7/16 x 1-3/4 hex-hd cap

12шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

12шт.

3

939475R91

BEARING

ASSY, gath. drv shaft ball

6шт.

4

557115R11

COLLAR

COLLAR W/SET SCREW, lkg

6шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16 hex-soc-hd pt

6шт.

5

162505C91

SHAFT ASSY, gatherer drive outer

2шт.

6

166144C93

SPROCKET ASSY.

SPROCKET ASSY, gatherer chain drive

6шт.

18536R1

LOCK NUT,5/8"-18, G5

NUT, 5/8-18 C-Z hex-nylon insert

6шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga

6шт.

7

156827C1

WASHER

gatherer drive shaft cup

6шт.

8

156828C1

WASHER

gatherer drive shaft

6шт.

9

156829C1

WASHER

gatherer drive brg

12шт.

10

618210R91

BEARING

ASSY, gatherer shaft inner

6шт.

11

641207R1

SNAP RING,2.44", Int, #244

Ring, Snap, , gatherer drive inner brg 2.44", Int, #244

6шт.

12

156831C1

GEAR

gatherer driven bevel

6шт.

13

162507C1

COUPLING, gatherer drive female

2шт.

20180R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 2

BOLT, 1/2 x 2 znd sq-nk crg

2шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2 C-Z hex jam

2шт.

138549

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

2шт.

14

156394C1

WASHER, gatherer drive

11шт.

15

88745

WOODRUFF KEY,#28, 5/16" x 2 1/8", HT

KEY, 5/16 x 2-1/8 Woodruff

8шт.

16

162510C1

SPACER,1 3/8" Tube x 7/8"

gatherer drive shaft

6шт.

17

162904C1

SPROCKET, gatherer driven 24T, standard 353 FPM

1шт.

17

167428C1

SPROCKET, gatherer driven 31T, parts accessories 274 FPM

1шт.

17

162511C1

SPROCKET, gatherer driven 27T, parts accessories 314 FPM, 733 serial no. 575 and below, 734 serial no. 536 and below

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 hex-hd mach

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

18

162502C91

SHAFT ASSY, gatherer drive inner

1шт.

19

156393C1

GEAR

gatherer drive bevel

6шт.

20

155281C1

SHIM

gatherer drive bevel gear

18шт.

21

156830C1

WASHER

gatherer drive

18шт.

22

155915C91

DRIVE SPROCKET

SPROCKET ASSY, gatherer idler

6шт.

23

154984C1

BUSHING

gatherer idler sprocket

6шт.

24

654456R1

BOLT (SPREADER),Hex, 3/4" - 10 x 3 1/4"

BOLT, gatherer idler sprocket

6шт.

280954

NUT,3/4"-10, G5

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

6шт.

477243R1

WASHER,25/32" x 2" x .060"

25/32 x 2 x 16 ga C-Z

12шт.

619505R1

WASHER

25/32 x 2 x 11 ga

12шт.

25

168403C1

BRACKET, gatherer idler LH

3шт.

25

168404C1

BRACKET, gatherer idler RH

3шт.

26

162508C1

STUD, gatherer idler adj

6шт.

169070C1

NUT

5/8-11 C-Z center lock hex

6шт.

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

6шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga C-Z

12шт.

27

168401C1

BAR, gatherer idler

6шт.

18696R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/2", Gr 2

BOLT, 7/16 x 1-1/2 znd sq-nk crg

6шт.

271501

SOCKET

NUT, 7/16-14 C-Z hex

6шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

6шт.

28

168402C1

BUSHING, gatherer idler

6шт.

29

162500C1

GUIDE, gatherer chain left

3шт.

29

162501C1

GUIDE, gatherer chain right

3шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

30

166140C1

GUIDE, gath. chain hold down left

3шт.

30

166141C1

GUIDE, gath. chain hold down right

3шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

42шт.

120376

NUT,5/16"-18, G5

42шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

42шт.

21496R1

WASHER

11/32 x 3/4 x 11 ga C-Z

42шт.

31

VC682

VALVE SPRING

SPRING, gatherer idler sprocket adj, 733CH serial no. 550 & below, 734CH serial no. 536 & below

6шт.

31

303353R1

SPRING

gatherer idler sprocket adj, 733CH serial no. 551 & above, 734CH serial no. 537 & above

6шт.

32

168395C1

STRAP, inner gath. sprocket wear

3шт.

32

168396C1

STRAP, inner gath. sprocket wear

3шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

33

162509C1

SPACER, gatherer chain spring, 733CH serial no. 550 & below, 734CH serial no. 536 & below

6шт.

33

171834C1

SPACER

gatherer chain spring, 733CH serial no. 551 & above, 734CH serial no. 537 & above

6шт.

34

583620R1

BLOCK

gatherer drive chain tightener

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

35

166019C1

BRACKET, gatherer drive chain tightener

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

36

CHAIN ASSY, gatherer drive roller LH, use 87 links from 10-ft roll marked 611362R91, 1 offset link 612612R91 and 1 connecting link 574532R91

1шт.

37

654164R91

CHAIN (AG)

CONVEYOR ASSY, gatherer, includes ref. nos. 38, 39 and 40

1шт.

38

935619R91

GATHERING CHAIN

CONVEYOR ASSY, gatherer section

1шт.

39

587371R93

DRAG LINK

LINK, connecting

1шт.

40

450423R1

DRAG LINK

LINK, roller

1шт.

41

162510C1

SPACER,1 3/8" Tube x 7/8"

gatherer driven sprocket

1шт.

42

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING, 1/4-28NS 45 deg lube

6шт.

43

939475R91

BEARING

ASSY, gatherer driven shaft

1шт.

44

557115R11

COLLAR

COLLAR W/SET SCREW, lkg

1шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16 hex-soc-hd cup-pt

1шт.

45

939460R91

FLANGE

ASSY, gatherer driven bearing

1шт.

46

939461R1

FLANGE

gatherer driven brg

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

47

166270C91

COUPLING ASSY, gatherer outer, 733 w/28 or 30 inch row serial no. 575 and below

1шт.

47

162966C91

COUPLING ASSY, gatherer outer, 733 w/32 inch row serial no. 575 and below

1шт.

47

162957C91

COUPLING ASSY, gatherer outer, 734 serial no. 536 and below

1шт.

48

151640C91

COUPLING ASSY, gatherer outer female, 733 w/28 inch row serial no. 575 and below

1шт.

48

162961C91

COUPLING ASSY, gatherer outer female, 733 w/30 or 32 inch row serial no. 575 and below

1шт.

48

151643C91

COUPLING ASSY, gatherer outer female, 734 serial no. 536 and below

1шт.

18766R1

BOLT,Hex, 5/16"-18 x 1 3/4", G2

5/16 x 1-3/4 znd hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

49

162968C91

COUPLING ASSY, gatherer inner male, 733 w/28 inch row serial no. 575 and below

2шт.

49

151635C91

COUPLING ASSY, gatherer inner male, 733 w/30, 32 or 32 inch row serial no. 575 and below, 733 w/30 inch row serial no. 576 and above

2шт.

49

151638C91

COUPLING ASSY, gatherer inner male, 734 corn head

2шт.

50

162961C91

COUPLING ASSY, gath inner female, 733 w/28 inch rows serial no. 575 and below

2шт.

50

151640C91

COUPLING ASSY, gath inner female, 733 w/32 inch rows serial no. 575 and below, 733 w/30 inch row serial no. 501 and above

2шт.

50

151643C91

COUPLING ASSY, gath inner female, 733 w/34 inch rows serial no. 575 and below, 734 serial no. 501 and above

2шт.

18767R1

BOLT,Hex, 5/16"-18 x 2", G2

5/16 x 2 znd hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

51

162954C91

COUPLING ASSY, gatherer outer, 733 w/34 inch rows serial no. 575 and below

1шт.

52

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING, 1/4-28 NS 45 deg angle lub, 733CH S/N 551 & above, 734CH S/N 537 & above

6шт.

53

618210R91

BEARING

ASSY, gath. shaft inner up., 733CH serial no. 550 & below, 734CH serial no. 536 & below

6шт.

53

171879C91

BEARING

ASSY, gath. shaft inner up., 733CH serial no. 551 & above, 734CH serial no. 537 & above

6шт.

54

173275C1

COUPLING ASSY, gatherer outer, 734 w/36 inch row serial no. 537 and above

1шт.

54

173277C1

COUPLING ASSY, gatherer outer, 733 w/30 inch row serial no. 576 and above, 734 w/38 inch row serial no. 537 and above

41шт.

55

SPROCKET, auger driven 60T, refer to auger and drive unit for listing

1шт.

56

SPROCKET, gatherer and auger drive 20T, refer to main drive unit for listing

1шт.
