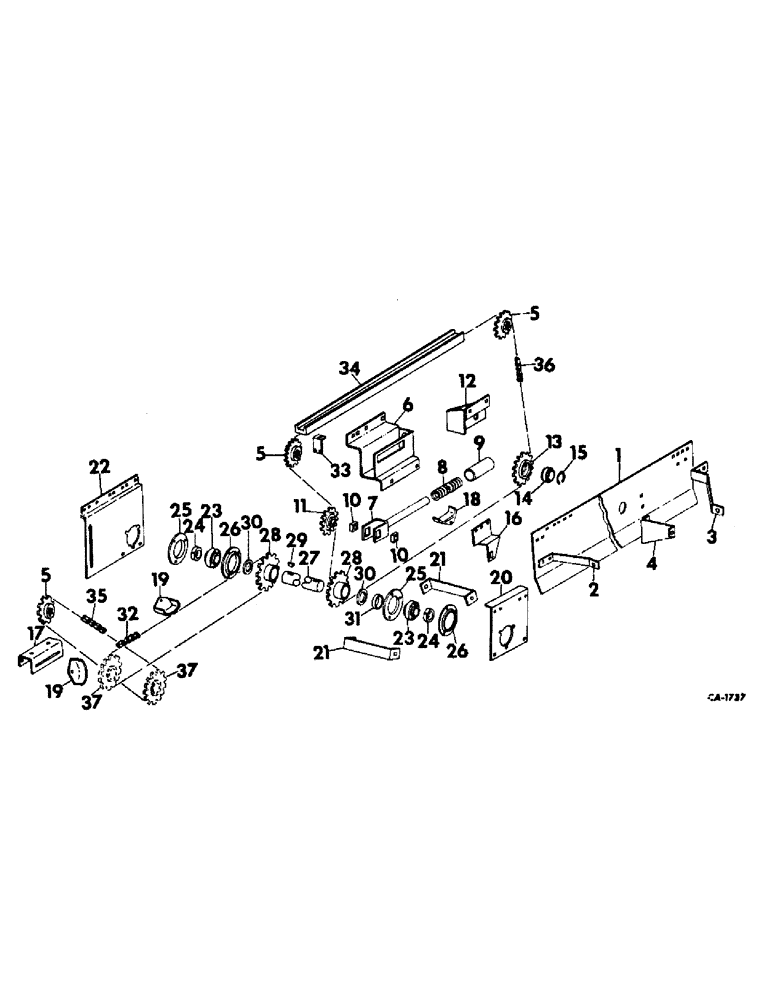

Запчасти Case IH 733 (L-26) - STALK ROLL DRIVE, 733 S/N 576 & ABOVE, 734 S/N 537 & ABOVE (58) - ATTACHMENTS/HEADERS

1

173345C1

SHIELD, stalk roll drive chain

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

2

173440C1

SUPPORT, stalk roll drive chain shield outer LH

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

3

173353C1

SUPPORT, stalk roll drive chain shield outer RH

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

4

173355C1

SUPPORT, stalk roll drive chain shield center

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

5

163349C1

SPROCKET ASSY.

SPROCKET, stalk roll driven 15T

3шт.

6

162606C91

BRACKET ASSY, stalk roll drive tightener LH

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

4шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

7

151656C91

YOKE ASSY, stalk roll drive chain tightener

1шт.

21353R1

NUT, 7/8 znp nylon insert hex

1шт.

21212R1

WASHER

25/32 x 2 x 11 ga C-Z

1шт.

8

544

CANVAS

SPRING, drive chain tightener rod

1шт.

9

589856R1

SPACER, drive chain tightener

1шт.

10

156691C1

BAR

BLOCK, stalk roll drive chain tightener

2шт.

11

629972R91

DRIVE SPROCKET,15T

SPROCKET W/BRG, drive chain tightener

1шт.

18827R1

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 2

5/8 x 3-1/2 C-Z hex-hd mach

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 C-Z hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga C-Z

1шт.

12

162626C91

BRACKET ASSY, stalk roll dr idler LH

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

2шт.

271501

SOCKET

NUT, 7/16 C-Z hex

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

13

632125R1

SPROCKET, stalk roll drive idler

1шт.

271820

SCREW

BOLT, 7/8 x 3-1/4 znd hex-hd cap

1шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

1шт.

NLS

NO LONGER SERVICED

7/8"

1шт.

21761R1

WASHER

29/32 x 1-1/2 x 16 ga C-Z

1шт.

21714R1

WASHER

29/32 x 1-1/2 x 11 ga

5шт.

14

580095R91

BALL BEARING

BEARING ASSY, idler sprocket ball

1шт.

15

555602R1

RING

idler sprocket bearing snap

1шт.

16

168484C1

BRACKET, stalk roll drive chain block

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 C-Z hex

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

17

162633C1

BRACKET, stalk roll drive block

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

3шт.

271501

SOCKET

NUT, 7/16 C-Z hex

3шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

3шт.

18

632168R1

BAR

BLOCK, stalk roll drive jackshaft LH

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

1шт.

19

583620R1

BLOCK

stalk roll dr tightener RH

2шт.

16888R1

HARDWARE,Short NK, 5/16"-18 x 1 1/4", G2

BOLT, 5/16 x 1-1/4 C-Z sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

20

173395C1

BRACKET, jackshaft rear bearing

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

21

162636C1

BRACE, jackshaft bracket

2шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

4шт.

271501

SOCKET

NUT, 7/16 C-Z hex

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

22

162632C1

BRACKET, jackshaft front bearing RH

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

3шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

3шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

3шт.

23

156011C91

BALL BEARING

BEARING ASSY, stalk roll drive

2шт.

24

557995R11

COLLAR

W/SET SCREW, lkg

2шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16 hex-soc-hd cup

2шт.

25

939460R91

FLANGE

w/65 deg lub fitting, brg

2шт.

26

939461R1

FLANGE

stalk roll jackshaft brg

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

27

162635C1

SHAFT, stalk roll drive jack

1шт.

28

163398C91

SPROCKET ASSY, stalk roll drive 23T

2шт.

29

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

5/16 x 1 Woodruff no. 8

2шт.

30

632156R1

THRUST WASHER

drive jackshaft

1шт.

31

632157R1

SPACER, stalk roll drive jackshaft

1шт.

32

CHAIN, stalk roll jackshaft drive, use 107 links of roller chain from 10 ft roll marked 1793D and one connecting link 1786D

1шт.

33

163397C1

ANGLE, stalk roll drive guide

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

34

162720C1

GUIDE, stalk roll chain upper, 733 corn head

1шт.

34

162719C1

BOARD

GUIDE, stalk roll drive chain, 734 corn head

1шт.

16888R1

HARDWARE,Short NK, 5/16"-18 x 1 1/4", G2

BOLT, 5/16 x 1-1/4 znd sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

35

CHAIN, stalk roll left drive roller, 733 w/30 inch row, use 55 links from a 10-ft roll marked 1793D and 1 connecting link 1786D

1шт.

35

CHAIN, stalk roll left drive roller, 734 w/36 inch row, use 57 links from a 10-ft roll marked 1793D and 1 connecting link 1786D

1шт.

35

CHAIN, stalk roll left drive roller, 734 w/38 inch row, use 59 links from a 10-ft roll marked 1793D & 1 connecting link 1786D

1шт.

36

CHAIN, stalk roll RH drive roller, 733 w/30 inch row, use 141 links from a 10 ft roll marked 1793D and 1 connecting link 1786D

1шт.

36

CHAIN, stalk roll RH drive roller, 734 w/36 inch row, use 155 links from a 10-ft roll marked 1793D and 1 connecting link 1786D

1шт.

37

SPROCKET, stalk roll drive, refer to main drive unit for listing

2шт.
