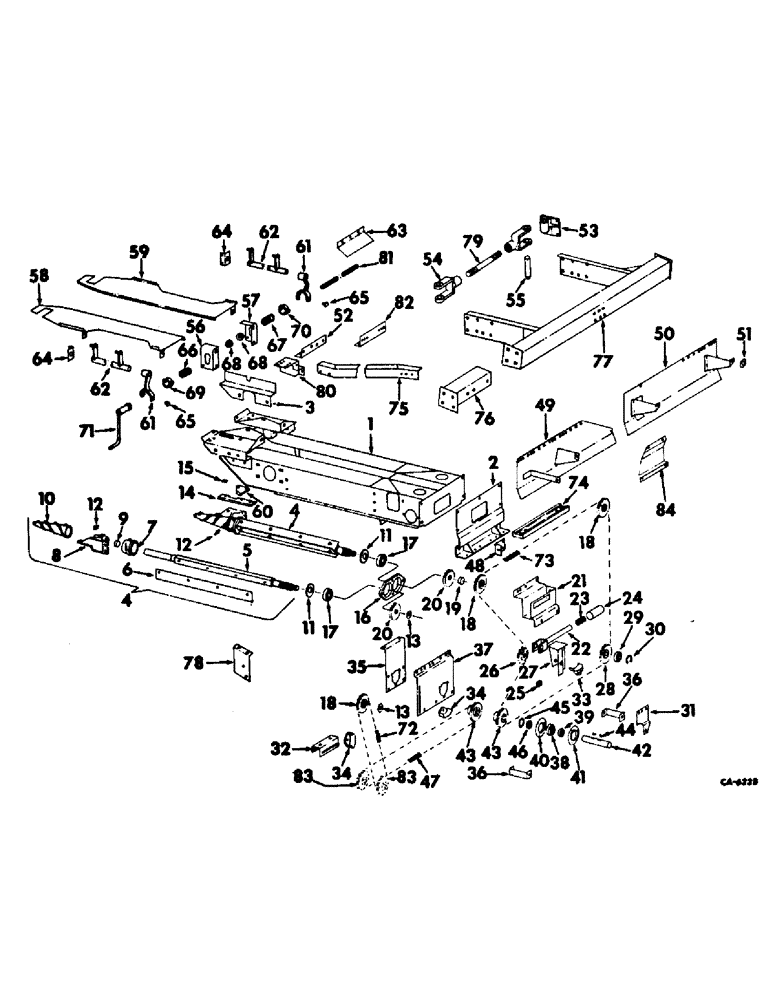

Запчасти Case IH 733 (L-18) - STALK ROLL FRAME, ROLLS & DRIVE, 733 S/N 575 & BELOW, 734 S/N 536 & BELOW (58) - ATTACHMENTS/HEADERS
№
Артикул
Название
Примечание
Количество
175248C91
STALK ROLL CONVERSION PACKAGE, parts accessories, available for converting from intermesh type rolls to knife type rolls
3шт.
1
162514C92
FRAME ASSY, stalk roll
3шт.
18695R1
CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2
BOLT, 7/16 x 1-1/4 C-Z sq-nk crg
12шт.
271501
SOCKET
NUT, 7/16 C-Z hex
12шт.
120383
LOCK WASHER,Helical Spring, 7/16"
WASHER, LOCK, 7/16"
12шт.
2
163312C11
BRACKET ASSY, stalk roll frame
3шт.
18421R1
CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2
BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd
12шт.
18695R1
CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2
BOLT, 7/16 x 1-1/4 C-Z sq-nk crg
9шт.
NLS
NO LONGER SERVICED
NUT, 7/16 C-Z hex
21шт.
120383
LOCK WASHER,Helical Spring, 7/16"
WASHER, LOCK, 7/16"
21шт.
3
168490C2
SHIELD, stalk roll frame LH
3шт.
3
168491C2
SHIELD, stalk roll frame RH
3шт.
18508R1
CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd
BOLT, 3/8 x 3/4 C-Z sq-nk crg
6шт.
120377
NUT,3/8" - 16, Gr 5
6шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
6шт.
4
162590C91
ROLL ASSY, left driver stalk
3шт.
4
162591C91
ROLL ASSY, left driven stalk, includes ref nos. 5 thru 10 & 12
3шт.
5
162594C1
SHAFT, stalk roll driven
3шт.
5
162595C1
SHAFT, stalk roll driver
3шт.
19638R1
LOCK NUT,3/4"-16, GB
NUT, 3/4-16 znp nylon insert hex
6шт.
178139
WASHER, 1-3/16 C-Z med lock
6шт.
6
162586C1
BAR
SECTION, stalk roll intermesh
24шт.
181694
BOLT,Hex, 1/2" - 20 x 7/8"
SCREW, 1/2 x 7/8 C-Z hex-hd cap
96шт.
7
162598C1
POINT, stalk roll center LH spiral
3шт.
7
162599C1
POINT, stalk roll center RH spiral
3шт.
169047C1
PIN
5/16 x 2-3/8 groove
6шт.
8
162587C11
SUPPORT W/BUSHING, stalk roll inner
3шт.
8
162588C11
SUPPORT W/BUSHING, stalk roll outer, includes ref. nos. 9 and 12
3шт.
9
162589C1
BUSHING
stalk roll support
12шт.
10
162596C1
ROLL
POINT, stalk roll front LH spiral
3шт.
10
162597C1
POINT
stalk roll front RH spiral
3шт.
168102C1
PIN
5/16 x 2 groove
6шт.
11
654297R1
WASHER
stalk roll shaft
6шт.
12
219-8
LUBE NIPPLE,1/4" - 28 NPTF
FITTING, 1/4-28 NF str lub
6шт.
13
584253R1
WASHER
25/32 x 1-3/4 x 3/16
6шт.
14
162600C1
KNIFE
weed front LH
3шт.
14
162601C1
KNIFE
weed front RH
3шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
18шт.
15
589713R1
SHIM
WASHER, weed knife shim
1шт.
16
153748C11
HOUSING W/BEARING, stalk roll, includes ref. no. 17
3шт.
18695R1
CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2
BOLT, 7/16 x 1-1/4 sq-nk crg
12шт.
271501
SOCKET
NUT, 7/16 C-Z hex
12шт.
131718
SHIM
7/16 C-Z int-tooth lock
12шт.
17
156030C91
BEARING
ASSY, stalk roll housing
6шт.
18
163349C1
SPROCKET ASSY.
SPROCKET, stalk roll driven 15T
3шт.
19
589696R1
BUSHING
SPACER, stalk roll driven sprocket
3шт.
20
580849R1
PINION
GEAR, stalk roll drive 20T
6шт.
21
162606C91
BRACKET ASSY, drive tightener LH
1шт.
18421R1
CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2
BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd
4шт.
NLS
NO LONGER SERVICED
NUT, 7/16 C-Z hex
4шт.
120383
LOCK WASHER,Helical Spring, 7/16"
WASHER, LOCK, 7/16"
4шт.
22
151656C91
YOKE ASSY, drive chain tightener
1шт.
21353R1
NUT, 7/8 znp nylon insert hex
1шт.
21212R1
WASHER
25/32 x 2 x 11 ga C-Z
1шт.
23
544
CANVAS
SPRING, drive chain tightener rod
1шт.
24
589856R1
SPACER, drive chain tightener
1шт.
25
156691C1
BAR
BLOCK, stalk roll dr chain tgtner
2шт.
26
629972R91
DRIVE SPROCKET,15T
SPROCKET W/BRG, drive chain tightener
1шт.
18827R1
BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 2
5/8 x 3-1/2 C-Z hex-hd mach
1шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
1шт.
464623R1
WASHER
21/32 x 1-1/2 x 11 ga
6шт.
27
162626C91
BRACKET ASSY, stalk roll dr idler LH
1шт.
18421R1
CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2
BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd
2шт.
271501
SOCKET
NUT, 7/16 C-Z hex
2шт.
120383
LOCK WASHER,Helical Spring, 7/16"
WASHER, LOCK, 7/16"
2шт.
28
632125R1
SPROCKET, stalk roll drive idler
1шт.
271820
SCREW
BOLT, 7/8 x 3-1/4 znd hex-hd cap
1шт.
425-1014
NUT,7/8"-9, G5
NUT, 7/8"-9, G5
1шт.
131047
WASHER,7/8"
7/8"
1шт.
21761R1
WASHER
29/32 x 1-1/2 x 16 ga C-Z
1шт.
21714R1
WASHER
29/32 x 1-1/2 x 11 ga
5шт.
29
580095R91
BALL BEARING
BEARING ASSY, idler sprocket ball
1шт.
30
555602R1
RING
idler sprocket bearing snap
1шт.
31
168484C1
BRACKET, stalk roll drive chain block
1шт.
18421R1
CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2
BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd
2шт.
NLS
NO LONGER SERVICED
NUT, 7/16-14 C-Z hex.
2шт.
120383
LOCK WASHER,Helical Spring, 7/16"
WASHER, LOCK, 7/16"
2шт.
32
162633C1
BRACKET, stalk roll drive block
1шт.
18421R1
CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2
BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd
3шт.
271501
SOCKET
NUT, 7/16 C-Z hex
3шт.
120383
LOCK WASHER,Helical Spring, 7/16"
WASHER, LOCK, 7/16"
3шт.
33
632168R1
BAR
BLOCK, stalk roll drive jackshaft LH
1шт.
12872R1
BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd
CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd
1шт.
120376
NUT,5/16"-18, G5
1шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
1шт.
619855R1
WASHER
11/32 x 3/4 x 16 ga C-Z
1шт.
34
583620R1
BLOCK
drive chain tightener RH
2шт.
16888R1
HARDWARE,Short NK, 5/16"-18 x 1 1/4", G2
BOLT, 5/16 x 1-1/4 C-Z sq-nk crg
2шт.
120376
NUT,5/16"-18, G5
2шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
2шт.
35
168106C1
BRACKET, jackshaft rear bearing
1шт.
18421R1
CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2
BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd
2шт.
NLS
NO LONGER SERVICED
NUT, 7/16 C-Z hex
2шт.
120383
LOCK WASHER,Helical Spring, 7/16"
WASHER, LOCK, 7/16"
2шт.
36
162636C1
BRACE, jackshaft bracket
2шт.
18421R1
CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2
BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd
4шт.
271501
SOCKET
NUT, 7/16 C-Z hex
4шт.
120383
LOCK WASHER,Helical Spring, 7/16"
WASHER, LOCK, 7/16"
4шт.
37
162632C1
BRACKET, jackshaft front bearing RH
1шт.
18421R1
CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2
BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd
3шт.
NLS
NO LONGER SERVICED
NUT, 7/16 C-Z hex
3шт.
120383
LOCK WASHER,Helical Spring, 7/16"
WASHER, LOCK, 7/16"
3шт.
38
156011C91
BALL BEARING
BEARING ASSY, stalk roll drive
2шт.
39
557995R11
COLLAR
W/SET SCREW, lkg
2шт.
115321
SET SCREW,Hex Skt, 5/16"-18 x 5/16"
SCREW, 5/16 x 5/16 hex-soc-hd
2шт.
40
939460R91
FLANGE
w/65 deg lub fitting, brg
2шт.
41
939461R1
FLANGE
stalk roll jackshaft brg
2шт.
18508R1
CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd
BOLT, 3/8 x 3/4 C-Z sq-nk crg
6шт.
120377
NUT,3/8" - 16, Gr 5
6шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
6шт.
42
162635C1
SHAFT, stalk roll drive jack
1шт.
43
163398C91
SPROCKET ASSY, stalk roll drive 23T
2шт.
44
88907
WOODRUFF KEY,#B, 5/16" x 1", HT
KEY, 5/16 x 1 Woodruff no. 8
2шт.
45
632156R1
THRUST WASHER
stalk roll drive jackshaft
1шт.
46
632157R1
SPACER, stalk roll drive jackshaft
1шт.
47
CHAIN ASSY, stalk roll drive, use 117 links from 10-ft roll marked 1793D and 1 connecting link 1786D
1шт.
48
163397C1
ANGLE, stalk roll drive guide
2шт.
18508R1
CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd
BOLT, 3/8 x 3/4 C-Z sq-nk crg
4шт.
120377
NUT,3/8" - 16, Gr 5
4шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
4шт.
49
166884C2
SHIELD ASSY, stalk roll drive chain LH
1шт.
12872R1
BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd
CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd
2шт.
18422R1
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 2
BOLT, 3/8 x 1-3/4 znd sq-nk crg
1шт.
20485R1
BOLT,Short NK, 7/16"-14 x 3/4", G5. Full Thd
7/16 x 3/4 znd sq-nk crg
2шт.
120376
NUT,5/16"-18, G5
2шт.
120377
NUT,3/8" - 16, Gr 5
1шт.
271501
SOCKET
NUT, 7/16 C-Z hex
2шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
1шт.
120383
LOCK WASHER,Helical Spring, 7/16"
WASHER, LOCK, 7/16"
2шт.
50
166886C2
SHIELD ASSY, stalk roll drive chain RH
1шт.
18422R1
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 2
BOLT, 3/8 x 1-3/4 znd sq-nk crg
1шт.
20485R1
BOLT,Short NK, 7/16"-14 x 3/4", G5. Full Thd
7/16 x 3/4 znd sq-nk crg
2шт.
18421R1
CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2
BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd
2шт.
120377
NUT,3/8" - 16, Gr 5
1шт.
NLS
NO LONGER SERVICED
NUT, 7/16 C-Z hex
4шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
1шт.
120383
LOCK WASHER,Helical Spring, 7/16"
WASHER, LOCK, 7/16"
4шт.
51
364002R1
SPACER,3/8" Pipe x 1"
stalk roll drive shield
1шт.
52
163251C1
CHANNEL, stalk roll frame support, 733CH serial no. 550 & below, 734CH serial no. 536 & below
2шт.
18421R1
CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2
BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd
4шт.
271501
SOCKET
NUT, 7/16 C-Z hex
4шт.
120383
LOCK WASHER,Helical Spring, 7/16"
WASHER, LOCK, 7/16"
4шт.
53
166915C1
BRACKET, inner auger end support
2шт.
54
166916C1
YOKE, auger end support LH
2шт.
54
166917C1
YOKE, auger end support RH
2шт.
55
167039C1
PIN, yoke diagonal
4шт.
137263
STRIP
3/16" x 2"
8шт.
56
162878C1
BRACKET, shield adj screw LH
3шт.
18421R1
CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2
BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd
6шт.
NLS
NO LONGER SERVICED
NUT, 7/16 C-Z hex
6шт.
120383
LOCK WASHER,Helical Spring, 7/16"
WASHER, LOCK, 7/16"
6шт.
57
162879C1
BRACKET, shield adj screw RH
3шт.
18421R1
CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2
BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd
6шт.
271501
SOCKET
NUT, 7/16 C-Z hex
6шт.
120383
LOCK WASHER,Helical Spring, 7/16"
WASHER, LOCK, 7/16"
6шт.
58
162886C92
SHIELD ASSY, stalk roll left
1шт.
59
162887C92
SHIELD ASSY, stalk roll right
1шт.
60
170376C1
SHIELD
stalk roll point LH
3шт.
60
170377C1
SHIELD
stalk roll point RH
3шт.
18508R1
CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd
BOLT, 3/8 x 1 C-Z sq-nk crg
12шт.
120377
NUT,3/8" - 16, Gr 5
12шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
12шт.
61
156706C1
ARM, stalk roll shield adj lower
6шт.
617939R1
PIN,5/16" x 1 1/2", Coiled
6шт.
62
166151C91
ARM ASSY, stalk roll shield control
6шт.
63
166154C1
SHIELD, stalk roll adj rod
3шт.
18421R1
CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2
BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd
9шт.
NLS
NO LONGER SERVICED
NUT, 7/16 C-Z hex
9шт.
120383
LOCK WASHER,Helical Spring, 7/16"
WASHER, LOCK, 7/16"
9шт.
64
156719C1
ANGLE, stalk roll shield tube
12шт.
17351R1
CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2
BOLT, 3/8 x 1 C-Z sq-nk crg
24шт.
120377
NUT,3/8" - 16, Gr 5
24шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
24шт.
65
589457R1
SCREW, stalk roll shield adj nut
12шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
12шт.
66
156708C1
SCREW, stalk roll shield adj left
3шт.
67
156709C1
SCREW, stalk roll shield adj right
3шт.
68
M5895
COLLAR, stalk roll shield adj rod
4шт.
125843
SET SCREW,Hex Skt, 3/8"-16 x 3/8"
SCREW, 3/8 x 3/8 hex-soc-hd
4шт.
69
935560R1
NUT, stalk roll shield adj left
3шт.
70
935561R1
NUT, stalk roll shield adj right
3шт.
71
589725R91
CRANK ASSY, stalk roll shield adj
1шт.
517843R1
COTTER PIN
PIN, 3/16 qa cot
1шт.
72
CHAIN ASSY, stalk roll drive roller LH, 28 & 40 inch rows, use 57 links from 10-ft roll marked 1793D & 1 connecting link 1786D
1шт.
72
CHAIN ASSY, stalk roll drive roller LH, 30, 36 & 38 inch rows, use 55 links from 10-ft roll marked 1793D, & 1 connecting link 1786D
1шт.
72
CHAIN ASSY, stalk roll drive roller LH, 32 & 34 inch rows, use 53 links from 10-ft roll marked 1793D & 1 connecting link 1786D
1шт.
73
CHAIN ASSY, stalk roll drive roller RH, 28 inch rows, use 137 links from a 10-ft roll marked 1793D and 1 connecting link 1786D
1шт.
73
CHAIN ASSY, stalk roll drive roller RH, 30 inch rows, use 141 links from a 10-ft roll marked 1793D and 1 connecting link 1786D
1шт.
73
CHAIN ASSY, stalk roll drive roller RH, 32 inch rows, use 145 links from a 10-ft roll marked 1793D and 1 connecting link 1786D
1шт.
73
CHAIN ASSY, stalk roll drive roller RH, 34 inch rows, use 149 links from a 10-ft roll marked 1793D and 1 connecting link 1786D
1шт.
73
CHAIN ASSY, stalk roll drive roller RH, 36 inch rows, use 155 links from a 10-ft roll marked 1793D and 1 connecting link 1786D
1шт.
73
CHAIN ASSY, stalk roll drive roller RH, 38 inch rows, use 159 links from a 10-ft roll marked 1793D and 1 connecting link 1786D
1шт.
73
CHAIN ASSY, stalk roll drive roller RH, 40 inch rows, use 165 links from a 10-ft roll marked 1793D and 1 connecting link 1786D
1шт.
74
162720C1
GUIDE, stalk roll drive chain upper, 28, 30 and 32 inch rows
1шт.
74
166455C1
GUIDE, stalk roll drive chain upper, 34 inch rows
1шт.
74
162719C1
BOARD
GUIDE, stalk roll drive chain upper, 734 corn head
1шт.
16888R1
HARDWARE,Short NK, 5/16"-18 x 1 1/4", G2
BOLT, 5/16 x 1-1/4 znd sq-nk crg
2шт.
120376
NUT,5/16"-18, G5
2шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
2шт.
75
163247C1
ANGLE, stalk roll outer frame support LH, 28 & 30 inch rows, 733CH serial no. 550 & below
1шт.
75
169062C1
ANGLE, stalk roll outer frame support LH, 28 & 30 inch rows, 733CH serial no. 551 & above
1шт.
75
163249C1
ANGLE, stalk roll outer frame support LH, 32 & 32 inch rows
1шт.
75
163252C1
ANGLE, stalk roll outer frame support LH, 36, 38 & 40 inch rows
1шт.
75
163248C1
ANGLE, stalk roll outer frame support RH, 28 & 30 inch rows, 733CH serial no. 550 & below
1шт.
75
169063C1
ANGLE, stalk roll outer frame support RH, 28 & 30 inch rows, 733CH serial no. 551 & above
1шт.
75
163250C1
ANGLE, stalk roll outer frame support RH, 32 & 32 inch rows
1шт.
75
163253C1
ANGLE, stalk roll outer frame support RH, 36, 38 & 40 inch rows
1шт.
18695R1
CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2
BOLT, 7/16 x 1-1/4 znd sq-nk crg
8шт.
271501
SOCKET
NUT, 7/16 C-Z hex
8шт.
120383
LOCK WASHER,Helical Spring, 7/16"
WASHER, LOCK, 7/16"
8шт.
76
167807C1
EXTENSION ASSY, feeder upper LH, 733 corn head
1шт.
76
167808C1
EXTENSION ASSY, feeder upper RH, 733 corn head
1шт.
18421R1
CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2
BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd
8шт.
NLS
NO LONGER SERVICED
NUT, 7/16 C-Z hex
8шт.
120383
LOCK WASHER,Helical Spring, 7/16"
WASHER, LOCK, 7/16"
8шт.
77
162910C91
EXTENSION ASSY, feeder frame, 733 corn head
1шт.
77
169143C2
EXTENSION ASSY, feeder frame, 734 corn head
1шт.
18421R1
CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2
BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd
8шт.
18695R1
CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2
BOLT, 7/16 x 1-1/4 C-Z sq-nk crg
4шт.
271501
SOCKET
NUT, 7/16 C-Z hex
12шт.
120383
LOCK WASHER,Helical Spring, 7/16"
WASHER, LOCK, 7/16"
12шт.
78
162951C1
BRACKET, stalk roll frame brace LH, 734 corn head
1шт.
78
162952C1
BRACKET, stalk roll frame brace RH, 734 corn head
1шт.
18421R1
CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2
BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd
4шт.
NLS
NO LONGER SERVICED
NUT, 7/16-14 C-Z hex
4шт.
120383
LOCK WASHER,Helical Spring, 7/16"
WASHER, LOCK, 7/16"
4шт.
79
167060C1
SHAFT, diagonal support, 733 corn head
2шт.
79
167061C1
SHAFT, diagonal support, 734 corn head
2шт.
9849633
NUT,1"-8, G5
2шт.
80
167013C91
SUPPORT ASSY, stalk roll angle, 733CH serial no. 550 & below
2шт.
18421R1
CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2
BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd
8шт.
271501
SOCKET
NUT, 7/16-14 C-Z hex
8шт.
120383
LOCK WASHER,Helical Spring, 7/16"
WASHER, LOCK, 7/16"
8шт.
81
168540C1
SHAFT, stalk roll shield adj, 733 corn head
1шт.
81
168526C1
SHAFT, stalk roll shield adj, 734 corn head
1шт.
82
162826C1
ANGLE, stalk roll frame tie center, 28, 30 and 32 inch rows
2шт.
82
162828C1
ANGLE, stalk roll frame tie center, 34, 36, 38 and 40 inch rows
2шт.
18794R1
BOLT,Hex, 7/16" - 14 x 1", Gr 2
7/16 x 1 C-Z hex-hd mach
8шт.
NLS
NO LONGER SERVICED
NUT, 7/16 C-Z hex
8шт.
120383
LOCK WASHER,Helical Spring, 7/16"
WASHER, LOCK, 7/16"
8шт.
83
SPROCKET, stalk drive, refer to main drive unit for listing
2шт.
84
169130C1
SHIELD, stalk roll jackshaft, 733CH serial no. 551 & above, 734 serial no. 537 & above
1шт.
18508R1
CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd
BOLT, 3/8 x 3/4 znd sq-nk crg
3шт.
18698R1
CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 2", Gr 2
BOLT, 7/16 x 2 znd sq-nk crg
1шт.
120377
NUT,3/8" - 16, Gr 5
3шт.
271501
SOCKET
NUT, 7/16 C-Z hex
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
3шт.
120383
LOCK WASHER,Helical Spring, 7/16"
WASHER, LOCK, 7/16"
1шт.
Выбрано товаров: 252
