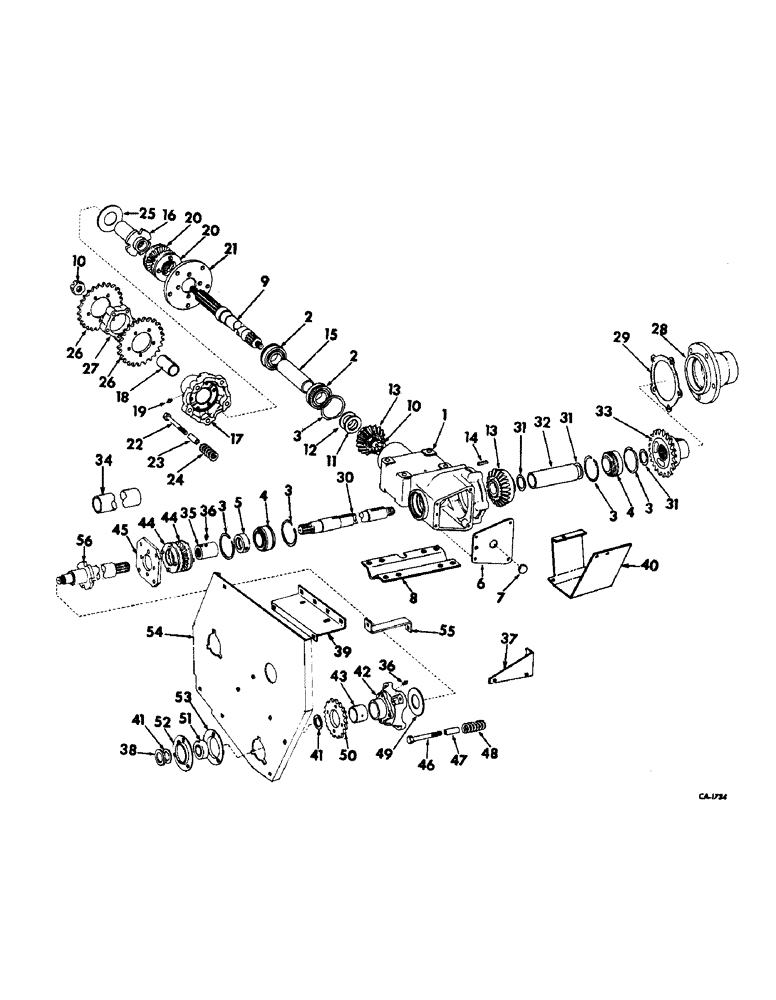

Запчасти Case IH 733 (L-16) - MAIN DRIVE, 733 S/N 576 & ABOVE, 734 S/N 537 & ABOVE (58) - ATTACHMENTS/HEADERS

1

162605C2

CASE, main drive gear

1шт.

18831R1

BOLT,Hex, 5/8" - 11 x 5 1/2"

5/8 x 5-1/2 hex-hd mach

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex

4шт.

443804

SCREW, 1/4-28 x 1/4 C-Z slt-hd set

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

2

156647C91

BEARING

ASSY, stalk roll dr shaft

2шт.

3

168424C1

RING, SNAP

RING, bearing snap

5шт.

4

156647C91

BEARING

ASSY, drive shaft ball

2шт.

5

455112R11

COLLAR

W/SET SCREW, lkg

1шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8 hex-soc-hd cup-pt

1шт.

6

162665C1

COVER, gear case

1шт.

18763R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16 x 1/2 C-Z hex-hd mach

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

7

142087

BEVEL PINION

gear case cover button

1шт.

8

162682C1

SUPPORT, gear case

1шт.

18822R1

BOLT,Hex, 5/8"-11 x 1 1/2", G2, Full Thd

5/8 x 1-1/2 hex-hd mach

4шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 C-Z hex

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

9

162690C1

SHAFT, stalk roll drive

1шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

21713R1

WASHER,25/32" x 1 3/4" x .120"

25/32 x 1-3/4 x 11 ga

2шт.

10

163307C1

JAM NUT

stalk roll drive shaft

2шт.

11

162679C1

WASHER

WASHER, stalk roll driven gear

1шт.

12

156654C1

WASHER, stalk roll driven gear

2шт.

13

163303C91

GEAR SET, stalk roll drive

1шт.

14

156664C1

KEY, 3/8 x 1-1/4 sq parallel

1шт.

15

162661C1

SPACER, stalk roll drive shaft

1шт.

16

163306C2

HOLDER, stalk roll drive inner clutch

1шт.

17

162711C21

HOLDER W/BUSHING, stalk roll drive slip clutch, includes ref no. 18

1шт.

18

162712C1

BUSHING, slip clutch holder

1шт.

19

126131

FITTING

1/4-28 NF str lub

1шт.

20

168370C1

RATCHET

stalk roll dr slip clutch

2шт.

21

162684C1

RETAINER, stalk roll drive slip clutch

1шт.

22

587423R1

BOLT

stalk roll drive slip clutch

5шт.

121592

SLOTTED NUT,1/2"-13, G5

NUT, 1/2 C-Z slt-hex

5шт.

121224

SUPPORT

3/32" x 1"

5шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z

5шт.

23

631581R1

SPACER

stalk roll dr slip clutch

5шт.

24

584007R1

SPRING

stalk roll dr slip clutch

5шт.

25

156660C1

WASHER, stalk roll drive slip clutch

1шт.

26

163300C1

SPROCKET ASSY.

SPROCKET, stalk roll drive 29T, standard 1093 RPM

2шт.

26

163299C1

SPROCKET, stalk roll drive 25T, parts accessories 942 RPM

2шт.

26

163301C1

SPROCKET, stalk roll drive 33T, parts accessories 1244 RPM

2шт.

18783R1

BOLT,Hex, 3/8"-16 x 2 1/2", G2

3/8 x 2-1/2 hex-hd mach

5шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

27

162713C1

SPACER, stalk roll drive sprocket

1шт.

28

173383C1

SUPPORT, main shaft brg

1шт.

455000

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

SCREW, 1/2 x 1-1/4 hex-hd cap

5шт.

120384

WASHER,1/2"

LOCK, 1/2"

5шт.

29

168419C1

PACKAGE, main drive gear case shim

1шт.

30

173384C1

SHAFT, main drive inner

1шт.

86837293

SHAFT

1/2-20 x 1 znd hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

31

162678C1

WASHER,1 1/2" ID x 2" OD x .060" Thk

Main drive inner shaft 1 1/2" ID x 2" OD x .060" Thk

2шт.

31

486801R1

WASHER

main drive inner shaft end

1шт.

31

162679C1

WASHER

WASHER, main drive inner shaft

3шт.

32

173385C1

SPACER, main drive inner shaft

1шт.

33

173386C1

SPROCKET ASSY.

SPROCKET, main drive shaft

1шт.

34

173366C1

TUBE, main drive outer shaft, 734 corn head

1шт.

35

589690R1

COUPLING

main drive shaft

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

21916R1

PIN

1/4 x 2 C-Z std-hd

1шт.

36

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 NF str lub

2шт.

37

173763C1

SUPPORT, gath drive bracket lower LH

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

38

466000R1

WASHER, 1-9/32 x 2 x 7 ga hardened

1шт.

39

173757C1

SUPPORT, gatherer drive bracket upper

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

40

173391C1

SHIELD, gatherer drive slip clutch, 733 corn head

1шт.

40

173389C1

SHIELD, gatherer drive slip clutch, 734 corn head

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

41

156394C1

WASHER, main drive shaft

6шт.

42

162717C11

HOLDER ASSY, gatherer drive slip clutch, includes ref no. 43

1шт.

43

162953C1

BUSHING, slip clutch holder

1шт.

44

168370C1

RATCHET

gatherer drive slip clutch

2шт.

45

629870R1

RETAINER

gatherer drive slip clutch

1шт.

46

587423R1

BOLT

gatherer drive slip clutch

4шт.

121592

SLOTTED NUT,1/2"-13, G5

NUT, 1/2 C-Z slt-hex

4шт.

121224

SUPPORT

3/32" x 1"

4шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z

4шт.

47

631581R1

SPACER

gatherer drive slip clutch

4шт.

48

584007R1

SPRING

gatherer drive slip clutch

4шт.

49

163063C1

WASHER, gatherer drive slip clutch

1шт.

50

162681C1

SPROCKET, gatherer and auger drive 20T

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

51

939475R91

BEARING

ASSY, main drive outer shaft

1шт.

52

939460R91

FLANGE

ASSY, outer shaft brg

1шт.

53

939461R1

FLANGE

outer shaft brg

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

54

163022C2

BRACKET, gatherer drive LH

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

3шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

2шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

55

163024C1

SUPPORT, gatherer drive bracket front

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

56

173356C1

SHAFT ASSY, main drive outer, 733 corn head

1шт.

56

173358C1

SHAFT ASSY, main drive outer, 734 corn head

1шт.

102609R1

LOCK NUT,3/4"-16

NUT, 3/4-16 znd nylon insert hex

1шт.

918847R1

WASHER, 25/32 x 1-3/4 x 7 ga C-Z

1шт.
