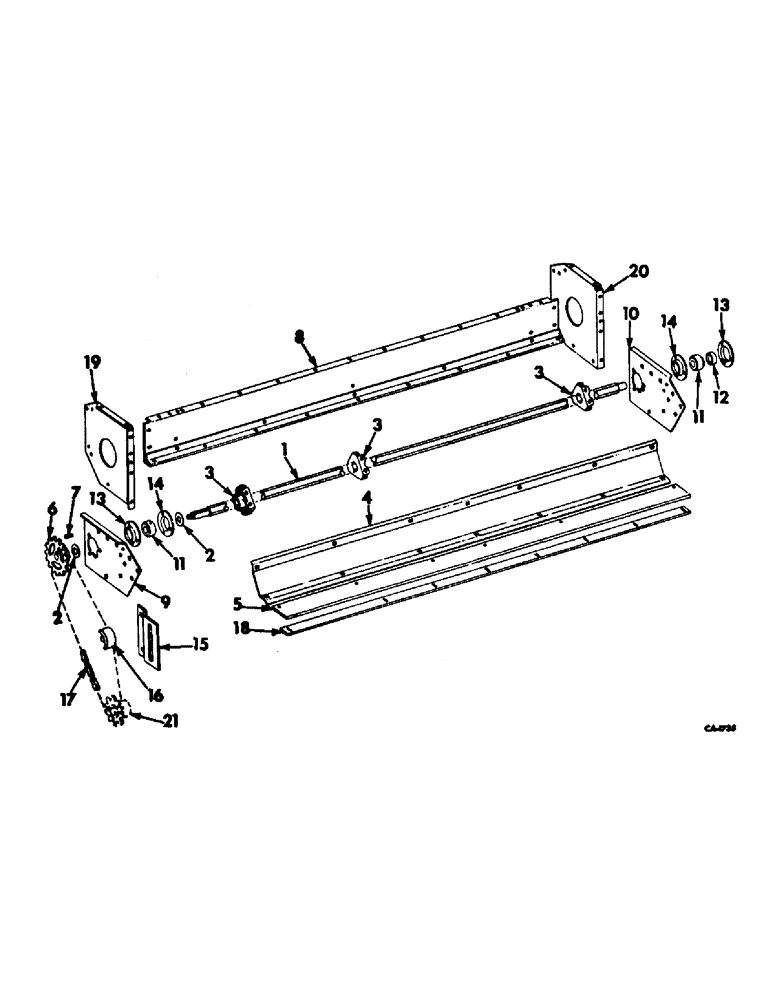

Запчасти Case IH 733 (L-12) - BEATER & BEATER DRIVE, 733 S/N 576 & ABOVE, 734 S/N 537 & ABOVE (58) - ATTACHMENTS/HEADERS

1

173250C1

SHAFT, beater, 733 corn head

1шт.

1

173251C1

SHAFT, beater, 734 corn head

1шт.

125267

NUT

5/8-18 C-Z slt-hex

1шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

131049

HYD CONNECTOR

1-1/8 C-Z med lock

1шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga C-Z

1шт.

2

472323R1

WASHER

beater shaft

4шт.

3

166390C1

SUPPORT, beater section

3шт.

168102C1

PIN

5/16 x 2 type 1 groove

3шт.

4

173252C1

SECTION, beater, 733 corn head

3шт.

4

169058C1

SECTION, beater, 734 corn head

3шт.

181595

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

SCREW, 5/16-24 x 3/4 C-Z hex-hd cap

18шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

18шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

18шт.

5

173253C1

BAT, beater drum, 733 corn head

3шт.

5

166387C1

BAT, beater drum, 734 corn head

3шт.

18475R1

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 2

5/16 x 1-1/4 znd hex-hd mach

1шт.

9411638

LOCK NUT,5/16"-18, GA

NUT, 5/16 C-Z hex lock

1шт.

6

162949C1

SPROCKET, beater driven 16T

1шт.

7

577147R1

KEY

5/16 x 1-3/16 sq-parallel

1шт.

8

173254C1

SHIELD, beater, 733 corn head

1шт.

8

152101C1

SHIELD, beater, 734 corn head

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z flange whiz lock

4шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

4шт.

9

163037C1

BRACKET, beater brg outer LH

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

5шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

3шт.

120377

NUT,3/8" - 16, Gr 5

5шт.

271501

SOCKET

NUT, 7/16 C-Z hex

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

3шт.

10

163038C1

BRACKET, beater brg outer RH

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

5шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

3шт.

120377

NUT,3/8" - 16, Gr 5

5шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

3шт.

11

939475R91

BEARING

ASSY, beater shaft

2шт.

12

557115R11

COLLAR

COLLAR W/SET SCREW, lkg

1шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16 hex-soc-hd cup-pt

1шт.

13

93460R91

FLANGE W/LUB FITTING, beater shaft brg

2шт.

14

939461R1

FLANGE

beater shaft brg

2шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

6шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

15

632194R1

BRACKET, beater chain tightener

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

16

583620R1

BLOCK

beater chain tightener LH

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

17

CHAIN ASSY, beater drive roller, use 45 links from a 10-ft roll marked 569089R91, one offset link 456929R91 & one connecting link 587372R91

1шт.

18

173736C1

STRIP, beater stripper, optional 733 corn head

1шт.

18

168227C1

STRIP, beater stripper, optional 734 corn head

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

1шт.

19

162779C1

SIDE, beater LH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

7шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

3шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

4шт.

20

162780C1

SIDE, beater RH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

7шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

3шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

4шт.

21

SPROCKET, beater drive 11T, refer to auger and drive unit for listing

1шт.
