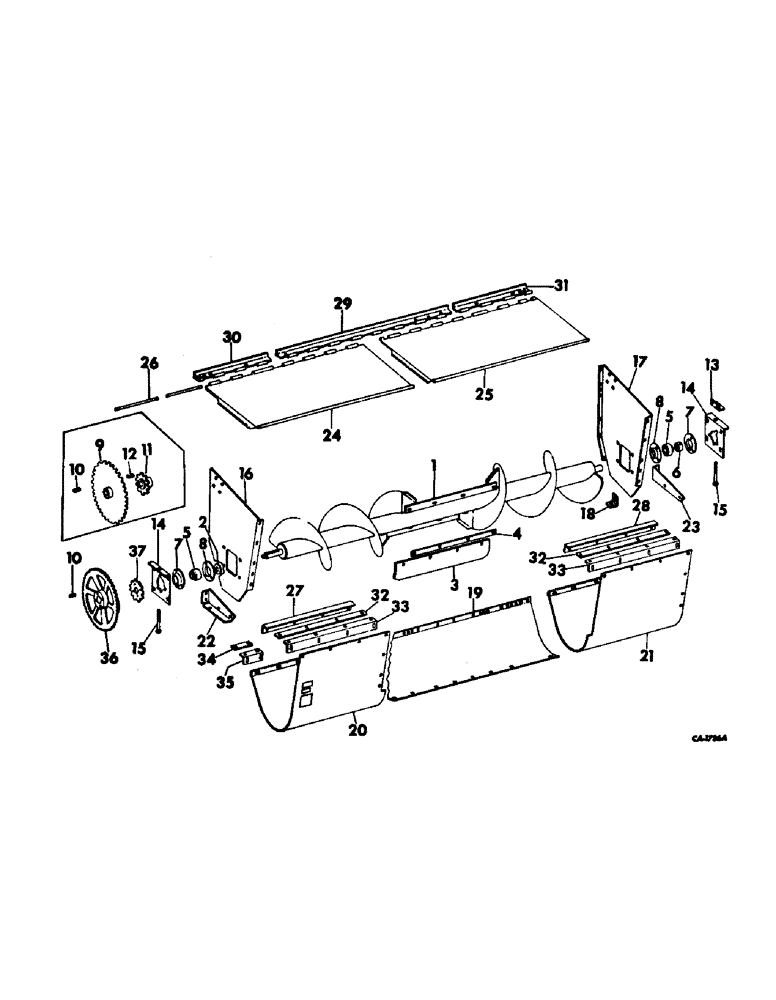

Запчасти Case IH 733 (L-10) - AUGER & AUGER DOORS, 733 S/N 576 & ABOVE, 734 S/N 537 & ABOVE (58) - ATTACHMENTS/HEADERS

1

173255C1

AUGER ASSY, 733 corn head

1шт.

1

173256C1

AUGER ASSY, 734 corn head

1шт.

163307C1

JAM NUT

3/4-16 NF C-Z slt-hex jam

1шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

131050

WASHER,1 1/4"

1 1/4"

1шт.

21713R1

WASHER,25/32" x 1 3/4" x .120"

25/32 x 1-3/4 x 11 ga C-Z

1шт.

2

632156R1

THRUST WASHER

auger shaft

1шт.

3

634470R1

BAT

auger

2шт.

4

634471R1

RETAINER, auger bat

2шт.

18685R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8 x 1-1/2 C-Z sq-nk crg

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

8шт.

5

156011C91

BALL BEARING

BEARING ASSY, auger ball

2шт.

6

557995R11

COLLAR

W/SET SCREW, lkg

1шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16 hex-soc-hd cup-pt

1шт.

7

939460R91

FLANGE

W/LUB FITTING, auger shaft brg

2шт.

8

939461R1

FLANGE

auger shaft brg

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

6шт.

9

162994C91

SPROCKET ASSY, auger driven 60T, welded sprocket

1шт.

10

577147R1

KEY

5/16 x 1-3/16 sq parallel, for use w/ref no. 9, 160994C91

1шт.

10

151257C1

KEY, 5/16 x 1-3/4 sq-parallel, for use w/ref no. 36, 174721C1

1шт.

11

166213C91

SPROCKET ASSY, beater drive left 11T, welded sprocket

1шт.

12

577147R1

KEY

5/16 x 1-3/16 sq parallel, for use w/ref no. 11, 166213C91

1шт.

13

166045C1

ANGLE, auger adj

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

14

166046C2

BRACKET, auger brg

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

611346R1

WASHER

13/32 x 7/8 x 16 ga C-Z

8шт.

15

455300R1

BOLT, auger brg bracket

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

611346R1

WASHER

13/32 x 7/8 x 16 ga C-Z

4шт.

16

169071C2

SECTION, auger trough end LH

1шт.

17

169072C2

SECTION, auger trough end RH

1шт.

18

169073C1

ANGLE, auger end trough

4шт.

19

173398C1

TROUGH, auger center

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

9шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

9шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

9шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

2шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

4шт.

20

173400C1

TROUGH ASSY, auger outer LH, 733 corn head

1шт.

20

173403C1

TROUGH ASSY, auger outer LH, 734 corn head

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

4шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

5шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 whiz lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

1шт.

21

173402C1

TROUGH, auger outer RH, 733 corn head

1шт.

21

173405C1

TROUGH, auger outer RH, 734 corn head

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

4шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

5шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

1шт.

22

173426C1

SUPPORT, auger trough end LH

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

23

173427C1

SUPPORT, auger trough end RH

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

24

173523C1

DOOR, auger outer LH, 733 corn head

1шт.

24

173525C1

DOOR, auger LH, 734 corn head

1шт.

25

173524C1

DOOR, auger outer RH, 733 corn head

1шт.

25

173526C1

DOOR, auger RH, 734 corn head

1шт.

26

173342C1

ROD, auger door hinge, 733 corn head

1шт.

26

173343C1

ROD, auger door hinge, 734 corn head

1шт.

27

173527C1

ANGLE, auger door LH, 733 corn head

1шт.

27

173529C1

ANGLE, auger door LH, 734 corn head

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 znd sq-nk crg

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

1шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

28

173528C1

ANGLE, auger door RH, 733 corn head

1шт.

28

173530C1

ANGLE, auger door RH, 734 corn head

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 znd sq-nk crg

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

1шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

29

162782C1

HINGE, auger door center

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange whiz lock

7шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

7шт.

30

173338C1

HINGE, auger door outer LH, 733 corn head

1шт.

30

173340C1

HINGE, auger door outer LH, 734 corn head

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange whiz lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

1шт.

31

173339C1

HINGE, auger door outer RH, 733 corn head

1шт.

31

173341C1

HINGE, auger door outer RH, 734 corn head

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange whiz lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

1шт.

32

173737C1

STRIP, auger stripper, optional 733 corn head

2шт.

32

173738C1

STRIP, auger stripper, optional 734 corn head

2шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

8шт.

120376

NUT,5/16"-18, G5

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

8шт.

33

173739C1

ANGLE, auger stripper, optional 733 corn head

2шт.

33

173740C1

ANGLE, auger stripper, optional 734 corn head

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

8шт.

120376

NUT,5/16"-18, G5

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

34

173741C1

STRIP, auger stripper extension, optional 733 corn head, optional 734 corn head

2шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

4шт.

35

173742C1

ANGLE, auger stripper extension, optional 733 corn head, optional 734 cornhead

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

36

174721C1

SPROCKET, auger driven 60T, cast sprocket

1шт.

37

174720C1

SPROCKET, beater drive left 11T, for use w/ref no. 36, 174721C1

1шт.

18766R1

BOLT,Hex, 5/16"-18 x 1 3/4", G2

5/16 x 1-3/4 hex-hd mach

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.
