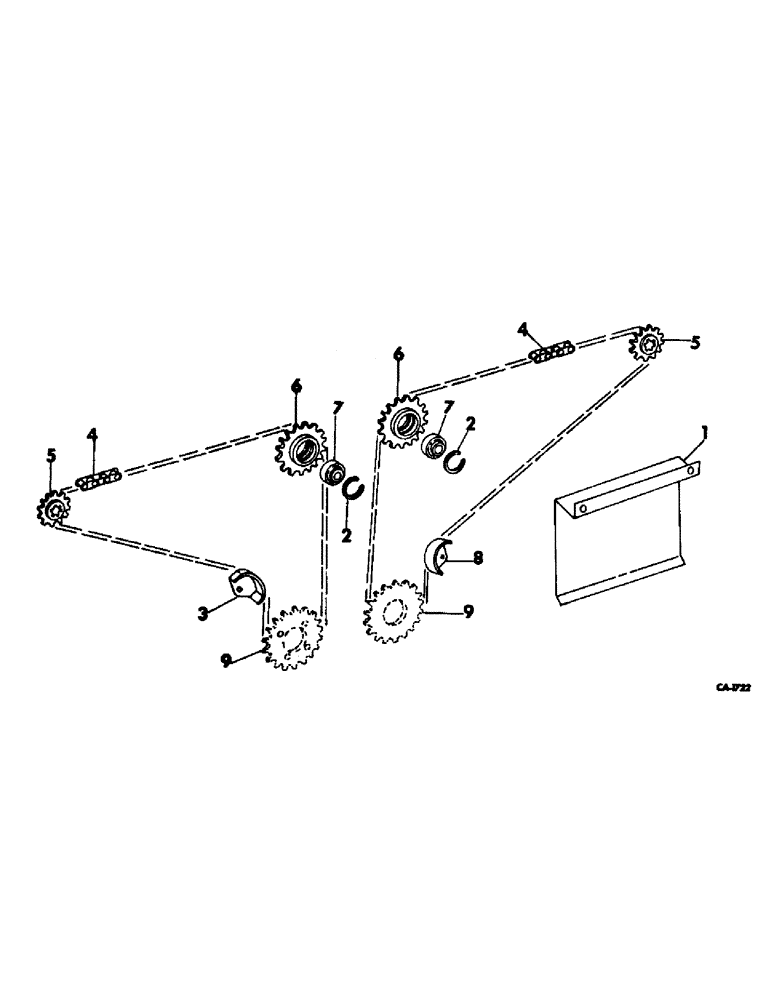

Запчасти Case IH 724 (K-08) - STALK ROLL DRIVE (58) - ATTACHMENTS/HEADERS

1

173344C1

SHIELD, stalk roll drive chain

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange whiz lock

2шт.

2

555602R1

RING

idler sprocket bearing snap

2шт.

3

583619R1

BLOCK

stalk roll drive tightener LH

1шт.

18674R1

BOLT,Short NK, 5/16"-18 x 1 1/2", G2

5/16 x 1-1/2 znd sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

4

CHAIN ASSY, stalk roll drive, use 77 links of roller chain from 10-ft roll marked 1793D and one connecting link 1786D

2шт.

5

163349C1

SPROCKET ASSY.

SPROCKET, stalk roll driven 15T

2шт.

6

632125R1

SPROCKET, stalk roll drive idler

2шт.

18850R1

BOLT

7/8 x 3 znd hex-hd mach

2шт.

426898

NUT,Jam, 7/8"-9, G5

7/8 C-Z hex jam

2шт.

NLS

NO LONGER SERVICED

7/8"

2шт.

21220R1

WASHER

29/32 x 1-1/4 x 11 ga C-Z

14шт.

7

580095R91

BALL BEARING

BEARING ASSY, idler sprocket ball

2шт.

8

583620R1

BLOCK

stalk roll drive tightener RH

1шт.

18674R1

BOLT,Short NK, 5/16"-18 x 1 1/2", G2

5/16 x 1-1/2 znd sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

9

SPROCKET, stalk roll drive, refer to main drive unit for listing

2шт.
