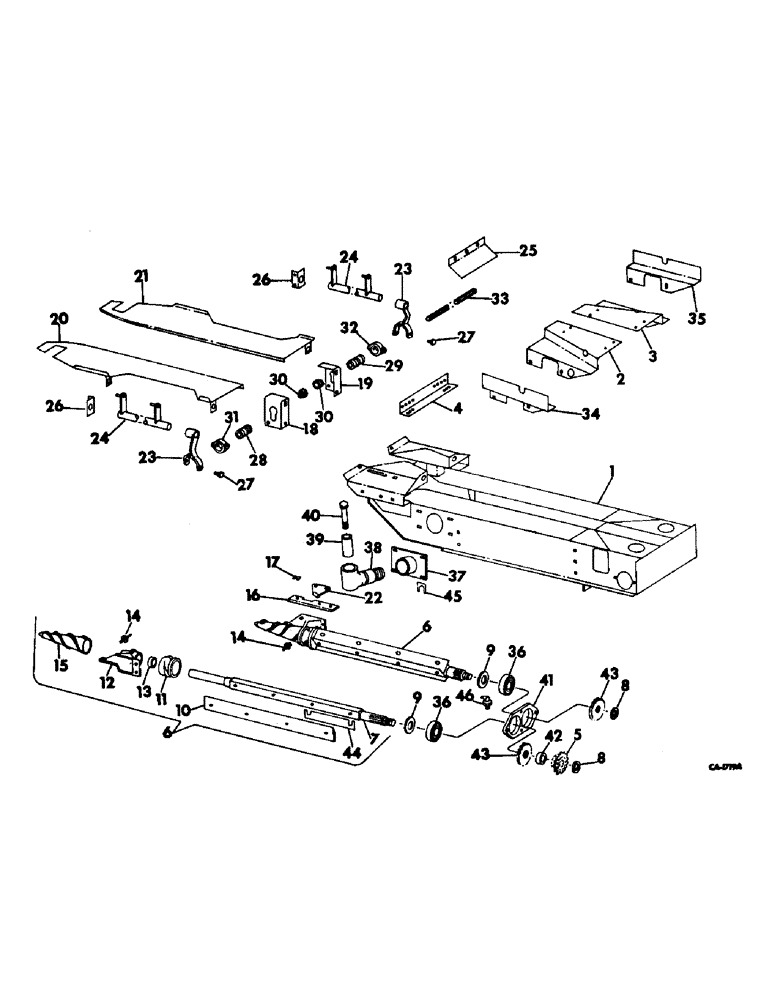

Запчасти Case IH 724 (K-06) - STALK ROLL FRAME, ROLLS, AND CONTROL (58) - ATTACHMENTS/HEADERS

1

173999C1

FRAME ASSY, stalk roll

2шт.

18695R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2

BOLT, 7/16 x 1-1/4 znd sq-nk crg

8шт.

271501

SOCKET

NUT, 7/16 C-Z hex

8шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

8шт.

2

173392C1

SHIELD, stalk roll frame LH

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

3

173393C1

SHIELD, stalk roll frame RH

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

4

162828C1

ANGLE, stalk roll frame tie center

1шт.

18794R1

BOLT,Hex, 7/16" - 14 x 1", Gr 2

7/16 x 1 znd hex-hd mach

4шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 C-Z hex

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

5

SPROCKET, stalk roll driven, refer to stalk roll drive unit for listing

1шт.

6

173687C92

ROLL ASSY, left driver stalk

1шт.

6

173689C92

ROLL ASSY, right driver stalk

1шт.

6

173688C92

ROLL ASSY, left driven stalk

1шт.

6

173690C92

ROLL ASSY, right driven stalk, includes ref nos. 7, 10 thru 15 and 44

1шт.

7

175232C91

SHAFT ASSY, stalk roll driver left

1шт.

7

175234C91

SHAFT ASSY, stalk roll driven left

1шт.

7

175233C91

SHAFT ASSY, stalk roll driver right

1шт.

7

175235C91

SHAFT ASSY, stalk roll driven right, includes ref no. 11, 175236C1 LH or 175237C1 RH

1шт.

19638R1

LOCK NUT,3/4"-16, GB

NUT, 3/4 znp nylon insert hex

4шт.

178139

WASHER, 1-3/16 C-Z med lock

4шт.

8

584253R1

WASHER

25/32 x 1-3/4 x 3/16

4шт.

9

654297R1

WASHER

stalk roll shaft

4шт.

10

173375C1

KNIFE SECTION

SECTION, stalk roll knife no. 1

8шт.

10

173376C1

KNIFE SECTION

SECTION, stalk roll knife no. 2

8шт.

181694

BOLT,Hex, 1/2" - 20 x 7/8"

SCREW, 1/2 x 7/8 hex-hd cap

64шт.

138549

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

64шт.

11

173693C1

SECTION, roll center LH, RH spiral, serial no. 2024 and below

2шт.

11

173694C1

SECTION, roll center RH, LH spiral, serial no. 2024 and below

2шт.

173704C1

PIN

5/16 x 2-3/8 groove

4шт.

11

175236C1

SECTION, roll center LH, RH spiral, serial no. 2025 and above

2шт.

11

175237C1

SECTION, roll center RH, LH spiral, serial no. 2025 and above

2шт.

175238C1

PIN, 3/8 x 2-3/4 hardened

4шт.

12

173695C91

SUPPORT

ASSY, stalk roll LH, includes ref nos. 13 and 14

2шт.

12

173696C91

SUPPORT ASSY, stalk roll RH, includes ref nos. 13 and 14

2шт.

13

173699C1

BUSHING,25.6mm ID x 33.4mm OD x 56.9mm L

stalk roll support

4шт.

14

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , NPT 1/8"-27 x .66 lg

4шт.

15

173700C1

POINT, stalk roll LH

2шт.

15

173701C1

POINT, stalk roll RH

2шт.

173702C1

PIN

5/16 x 1-3/4 groove

4шт.

173703C1

PIN

5/16 x 2-1/4 groove

4шт.

16

162600C1

KNIFE

weed front LH

2шт.

16

162601C1

KNIFE

weed front RH

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 C-Z hex-hd cap

12шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

12шт.

17

589713R1

SHIM

WASHER, weed knife shim

1шт.

18

162878C1

BRACKET, stalk roll shield adj screw LH

2шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

2шт.

18696R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/2", Gr 2

BOLT, 7/16 x 1-1/2 C-Z sq-nk crg

2шт.

271501

SOCKET

NUT, 7/16 C-Z hex

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

607891R1

WASHER

15/32 x 1 x 16 ga C-Z

2шт.

19

162879C1

BRACKET, stalk roll shield adj screw RH

2шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

2шт.

18696R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/2", Gr 2

BOLT, 7/16 x 1-1/2 C-Z sq-nk crg

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

607891R1

WASHER

15/32 x 1 x 16 ga C-Z

2шт.

20

162886C93

SHIELD ASSY, stalk roll left

2шт.

21

162887C93

SHIELD ASSY, stalk roll right

2шт.

22

170376C1

SHIELD

stalk roll point LH

2шт.

22

170377C1

SHIELD

stalk roll point RH

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

23

156706C1

ARM, stalk roll shield adj lower

4шт.

125637

COTTER PIN,1/8" x 2"

PIN, SPLIT (COTTER), 1/8" x 2"

4шт.

576483R1

LOCK PIN,5/16" x 1 1/2", Slotted

Pin, 5/16" x 1 1/2", Slotted

4шт.

16543R1

WASHER, 5/32 x 7/16 x 18 ga C-Z

8шт.

24

166151C91

ARM ASSY, stalk roll shield control

4шт.

25

166154C2

SHIELD, stalk roll adj rod

2шт.

18695R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2

BOLT, 7/16 x 1-1/4 C-Z sq-nk crg

6шт.

271501

SOCKET

NUT, 7/16 x 1-1/4 C-Z sq-nk crg

6шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

6шт.

26

156719C1

ANGLE, stalk roll shield control tube

6шт.

26

174283C1

ANGLE, stalk roll shield control tube front

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

16шт.

120377

NUT,3/8" - 16, Gr 5

16шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

16шт.

27

589457R1

SCREW, stalk roll shield adj nut retainer

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

28

156708C2

SCREW, stalk roll shield adj left

2шт.

29

156709C2

SCREW, stalk roll shield adj right

2шт.

30

M5895

COLLAR, stalk roll shield adj rod

2шт.

125843

SET SCREW,Hex Skt, 3/8"-16 x 3/8"

SCREW, 3/8 x 3/8 C-Z hex-soc-hd cup

2шт.

31

935560R1

NUT, stalk roll shield adj left

2шт.

32

935561R1

NUT, stalk roll shield adj right

2шт.

33

163660C1

ROD, stalk roll shield adj

1шт.

34

168490C2

SHIELD, stalk row frame LH

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

35

168491C2

SHIELD, stalk row frame RH

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

36

173735C91

BEARING ASSY

stalk roll housing ball

4шт.

37

162871C91

HUB ASSY, stalk roll support

4шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

16шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

16шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

16шт.

38

162876C2

ANCHOR, stalk roll support

4шт.

102609R1

LOCK NUT,3/4"-16

NUT, 3/4-16 znp nylon insert hex

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

22241R1

WASHER

1-3/32 x 1-3/4 x 16 ga C-Z

1шт.

21713R1

WASHER,25/32" x 1 3/4" x .120"

25/32 x 1-3/4 x 11 ga C-Z

4шт.

39

158783C1

BUSHING

stalk roll support

4шт.

40

161160C1

BOLT,Hex, 1/2" - 20 x 4", Drilled

stalk roll support

4шт.

125250

SLOTTED NUT,1/2"-20, G8

NUT, 1/2-20 C-Z slt-hex

4шт.

121224

SUPPORT

3/32" x 1"

4шт.

138549

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

4шт.

41

153748C11

HOUSING W/BEARING, stalk roll, includes ref no. 36

2шт.

18695R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2

BOLT, 7/16 x 1-1/4 C-Z sq-nk crg

8шт.

271501

SOCKET

NUT, 7/16 C-Z hex

8шт.

493-21046

LOCK WASHER,Int Tooth, 7/16"

7/16 C-Z int-tooth lock

8шт.

42

589696R1

BUSHING

SPACER, stalk roll driven sprocket

2шт.

43

580849R1

PINION

GEAR, stalk roll drive 20T

4шт.

44

174443C1

SHIM, stalk roll knife section .105

1шт.

44

175312C1

SHIM

stalk roll knife section .060

1шт.

45

175273C1

SHIM

lower stalk roll

1шт.

46

16964R1

FITTING

1/4-28 NS 90 degree lub

4шт.
