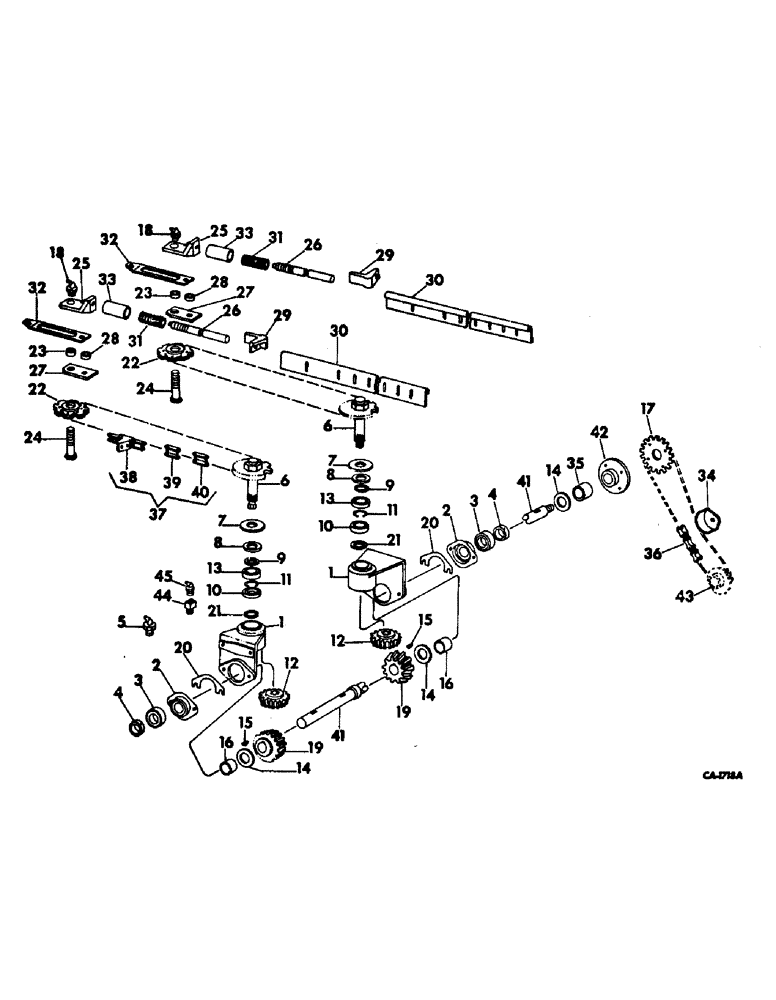

Запчасти Case IH 724 (K-04) - GATHERER AND GATHERER DRIVE (58) - ATTACHMENTS/HEADERS

1

162512C2

HOUSING, gatherer drive inner brg

4шт.

180145

BOLT,Hex, 7/16" - 14 x 1", Gr 5

SCREW, 7/16 x 1 C-Z hex-hd cap

8шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

8шт.

2

162513C91

BEARING HOUSING

HOUSING ASSY, gath drive outer brg, includes ref nos. 3 and 4

4шт.

180151

BOLT,Hex, 7/16" - 14 x 1 3/4", Gr 5

SCREW, 7/16 x 1-3/4 hex-hd cap

8шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

8шт.

3

939475R91

BEARING

ASSY, gatherer drv shft ball

4шт.

4

557115R11

COLLAR

COLLAR ASSY, bearing locking

4шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16 hex-soc-hd

4шт.

5

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING, 1/4-28 NS 45 deg angle lub

4шт.

6

166144C93

SPROCKET ASSY.

SPROCKET ASSY, gatherer chain drive

4шт.

18536R1

LOCK NUT,5/8"-18, G5

NUT, 5/8-18 UNF C-Z hex, nylon insert

4шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga

4шт.

7

156827C1

WASHER

gatherer drive shaft cup

4шт.

8

156828C1

WASHER

gatherer drive shaft

4шт.

9

156829C1

WASHER

gatherer drive brg

8шт.

10

618210R91

BEARING

ASSY, gatherer shaft inner

4шт.

11

641207R1

SNAP RING,2.44", Int, #244

Ring, Snap, , gatherer shaft inner brg 2.44", Int, #244

4шт.

12

156831C1

GEAR

gatherer driven bevel

4шт.

13

171879C91

BEARING

ASSY, gatherer shaft inner upper

4шт.

14

156394C1

WASHER, gatherer drive

4шт.

15

88745

WOODRUFF KEY,#28, 5/16" x 2 1/8", HT

KEY, 5/16 x 2-1/8 Woodruff

6шт.

16

162510C1

SPACER,1 3/8" Tube x 7/8"

gatherer drive shaft

4шт.

17

173374C1

SPROCKET, gatherer driven 21T, standard, 350 FPM

2шт.

17

162904C1

SPROCKET, gatherer driven 24T, parts accessories, 306 FPM

2шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1-1/4 hex-hd mach

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

18

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING, 1/4-28NS 45 deg lube

4шт.

19

156393C1

GEAR

gatherer drive bevel

4шт.

20

155281C1

SHIM

gatherer drive bevel gear

12шт.

21

156830C1

WASHER

gatherer drive

12шт.

22

155915C91

DRIVE SPROCKET

SPROCKET ASSY, gatherer idler

4шт.

23

154984C1

BUSHING

gatherer idler sprocket

4шт.

24

654456R1

BOLT (SPREADER),Hex, 3/4" - 10 x 3 1/4"

BOLT, gatherer idler sprocket

4шт.

280954

NUT,3/4"-10, G5

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

477243R1

WASHER,25/32" x 2" x .060"

25/32 x 2 x 16 ga C-Z

8шт.

619505R1

WASHER

25/32 x 2 x 11 ga

8шт.

25

168403C1

BRACKET, gatherer idler LH

2шт.

25

168404C1

BRACKET, gatherer idler RH

2шт.

26

162508C1

STUD, gatherer idler adj

4шт.

169070C1

NUT

5/8-11 C-Z center lock hex

4шт.

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

4шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga C-Z

8шт.

27

168401C1

BAR, gatherer idler

4шт.

18696R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/2", Gr 2

BOLT, 7/16 x 1-1/2 znd sq-nk crg

4шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 C-Z hex

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

28

168402C1

BUSHING, gatherer idler

4шт.

29

162500C1

GUIDE, gatherer chain left

2шт.

29

162501C1

GUIDE, gatherer chain right

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

30

166140C1

GUIDE, gatherer chain hold down left

2шт.

30

166141C1

GUIDE, gatherer chain hold down right

2шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

28шт.

120376

NUT,5/16"-18, G5

28шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

28шт.

21496R1

WASHER

11/32 x 3/4 x 11 ga C-Z

28шт.

31

303353R1

SPRING

gatherer idler sprocket adj

4шт.

32

168395C1

STRAP, inner gatherer sprocket wear LH

2шт.

32

168396C1

STRAP, inner gatherer sprocket wear RH

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

33

171834C1

SPACER

gatherer chain spring

4шт.

34

632168R1

BAR

TIGHTENER, gatherer drive chain LH

1шт.

34

632169R1

TIGHTENER, gatherer drive chain RH

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

2шт.

35

583772R1

SPACER, gatherer sprocket hub

2шт.

36

CHAIN ASSY, gatherer drive roller, use 45 links from 10-ft roll marked 611362R91, 1 offset link 612612R91 and 1 connecting link 574532R91

2шт.

37

654164R91

CHAIN (AG)

CONVEYOR ASSY, gatherer, includes ref nos. 38, 39 and 40

4шт.

38

935619R91

GATHERING CHAIN

CONVEYOR ASSY, gatherer section

1шт.

39

587371R93

DRAG LINK

LINK, connecting

1шт.

40

450423R1

DRAG LINK

LINK, gatherer roller chain

1шт.

41

173372C1

SHAFT ASSY, gatherer drive

2шт.

163307C1

JAM NUT

3/4-16 C-Z slt hex jam

2шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

2шт.

492-11112

LOCK WASHER,1 1/8"

1-1/8 C-Z med lock

2шт.

21713R1

WASHER,25/32" x 1 3/4" x .120"

25/32 x 1-3/4 x 11 ga C-Z

2шт.

42

166281C1

HUB, gatherer drive shaft

2шт.

43

SPROCKET, gatherer drive, refer to main drive unit for listing

2шт.

44

21450R1

ADAPTER,1/4"-1/8 NPTF

1/4 x 1/8 reducing pipe

4шт.

45

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 PTF 65 deg lub

4шт.
