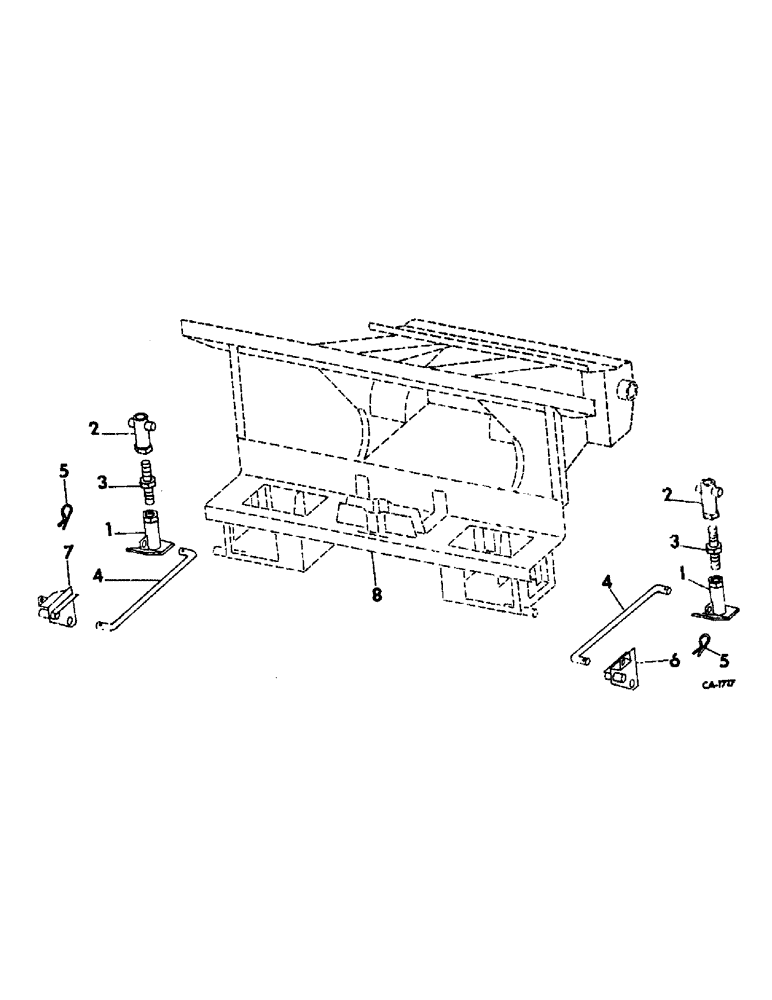

Запчасти Case IH 724 (K-03) - CORN HEAD STAND (58) - ATTACHMENTS/HEADERS

1

632229R91

BASE ASSY, stand

2шт.

19589R1

NUT

1-8 hex LH

2шт.

2

632228R11

SUPPORT ASSY, stand

2шт.

22867R1

NUT, 1-8 znd hex LH

2шт.

20328R1

COTTER PIN,3/16" x 1 1/2"

3/16" x 1 1/2"

2шт.

3

589748R11

SCREW ASSY, adjustment

2шт.

4

632233R1

ROD, front support

2шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

2шт.

5

520175R1

CLIP

PIN, 3/16 quick detachable cot

2шт.

6

632234R91

ANCHOR ASSY, support rod LH

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 C-Z hex

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

7

632235R91

ANCHOR ASSY, support rod RH

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

2шт.

271501

SOCKET

NUT, 7/16-14 C-Z hex

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

8

FEEDER ASSY, refer to feeder and feeder conveyor unit for listing

1шт.
