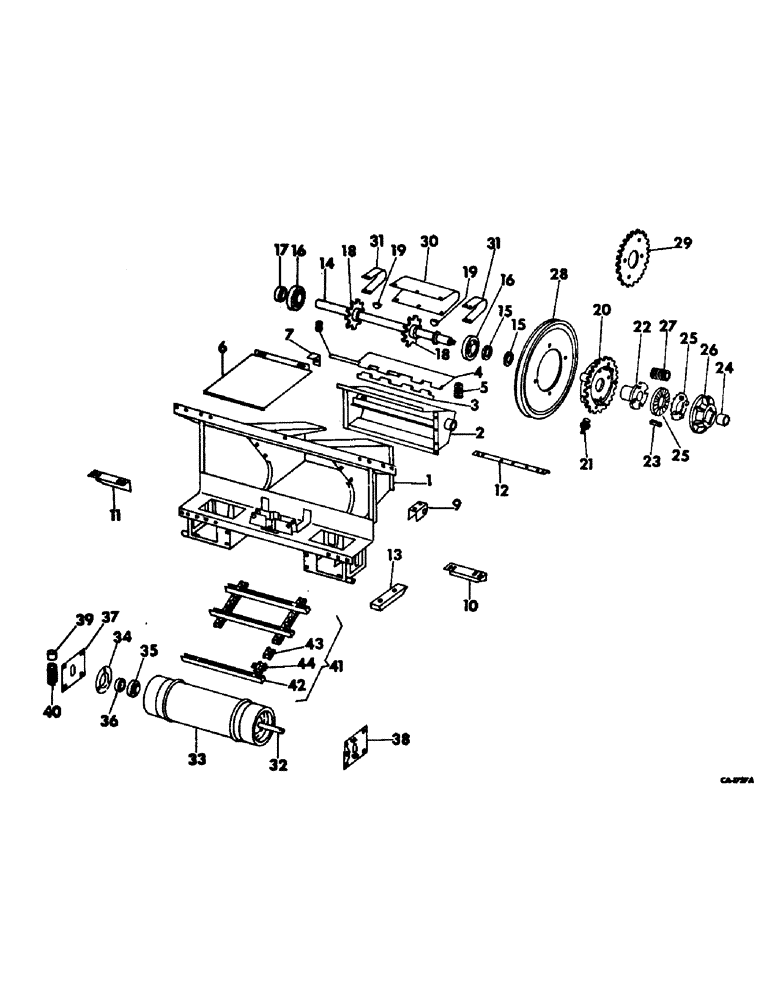

Запчасти Case IH 724 (K-20) - FEEDER AND FEED CONVEYOR (58) - ATTACHMENTS/HEADERS

1

173444C1

FRAME ASSY, feeder, 303 or 615 combine

1шт.

1

173452C1

FRAME ASSY, feeder, 403 or 715 combine

1шт.

2

173453C1

EXTENSION ASSY, feeder frame, 303 or 615 combine

1шт.

2

632316R91

EXTENSION ASSY, feeder frame, 403 or 715 combine

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

16шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

16шт.

3

629008R2

HINGE, feed plate, 303 or 615 combine

1шт.

3

589037R2

HINGE, feed plate, 403 or 715 combine

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

4

632296R11

EXTENSION ASSY, feeder frame bottom, all 303 combines and 615 combine serial no. 2580 and below w/o stone retarder

1шт.

4

173745C1

EXTENSION ASSY, feeder frame bottom, 615 combine w/stone retarder serial no. 2580 and below, all 615 combines serial no. 2581 and above

1шт.

4

632298R11

EXTENSION ASSY, feeder frame bottom, all 403 combines and 715 combine w/o stone retarder serial no. 3250 and below

1шт.

4

173747C1

EXTENSION ASSY, feeder frame bottom, 715 combine w/stone retarder serial no. 3250 and below, all 715 combine serial no. 3251 and above

1шт.

5

VC682

VALVE SPRING

SPRING, feed plate

2шт.

18806R1

BOLT

7/16 x 5 znd hex-hd mach

2шт.

231-1447

NUT,7/16"-14, GB

NUT, LOCK, 7/16"-14, GB

2шт.

21029R1

WASHER

15/32 x 1 x 11 ga C-Z

4шт.

6

632293R1

COVER, feeder housing

1шт.

7

586803R1

LOCK, feeder rear cover

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

1шт.

231-1445

NUT,5/16"-18, GB

NUT, 5/16-18 znp sq-nk crg

1шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

3шт.

8

629006R1

ROD, feed plate hinge, 303 or 615 combine

1шт.

8

589386R1

ROD

feed plate hinge, 403 or 715 combine

1шт.

9

586202R1

BRACKET, hydraulic lift

2шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 znd sq-nk crg

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

10

173436C1

ANGLE, feeder frame extension LH

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

11

173437C1

ANGLE, feeder frame extension RH

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

12

632399R1

STRAP, feeder head seal, 303 or 615 combine

1шт.

12

632400R1

STRAP, feeder head seal, 403 or 715 combine

1шт.

13

170609C1

ADAPTER, feeder hitch

2шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1 znd hex-hd mach

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

14

632338R11

SHAFT ASSY, feeder, 303 or 615 combine

1шт.

14

632355R11

SHAFT ASSY, feeder, 403 or 715 combine

1шт.

10495D

NUT

3/14-16 UNF slt jam

1шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

131050

WASHER,1 1/4"

1 1/4"

1шт.

21713R1

WASHER,25/32" x 1 3/4" x .120"

25/32 x 1-3/4 x 11 ga C-Z

1шт.

15

632156R1

THRUST WASHER

feed shaft hardened

2шт.

16

565672R91

BALL BEARING,1.25" ID x 72 mm OD x 1.53125"

ASSY, feeder shaft ball

2шт.

17

455104R11

COLLAR

W/SET SCREW, lkg

1шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/4 hex-soc-hd cup pt

1шт.

18

632364R1

SPROCKET, conveyor drive chain 8T

2шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16 socket hd set

4шт.

19

117987

KEY

1/4 x 2-1/8 Woodruff

2шт.

20

632367R1

SPROCKET, main drive

1шт.

21

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 67-1/2 lub

1шт.

22

632144R1

HUB CAP

HUB, feed conveyor drive

1шт.

23

577147R1

KEY

5/16 x 1-3/16 sq-parallel

1шт.

24

634902R1

SPACER

feed conveyor drive hub

1шт.

25

B12170

RATCHET,Clutch Slip, 94.49mm

slip clutch

2шт.

26

632152R2

RETAINER

PLATE, slip clutch pressure

1шт.

27

U13670

SPRING, feed conveyor

4шт.

632370R1

BOLT, 7/16-14 x 3 hex-hd mach dld

4шт.

425-127

SLOTTED NUT,7/16"-14, G5

NUT, 7/16 C-Z hex slt

4шт.

121224

SUPPORT

3/32" x 1"

4шт.

607891R1

WASHER

15/32 x 1 x 16 ga C-Z

4шт.

28

632339R11

PULLEY ASSY, corn head driven 15.44 dia

1шт.

29

936304R1

SPROCKET, corn head driven 38T, loose, 303 or 615 combine

1шт.

29

589383R1

SPROCKET, corn head driven 33T, loose, 403 or 715 combine

1шт.

18783R1

BOLT,Hex, 3/8"-16 x 2 1/2", G2

3/8 x 2-1/2 znd hex-hd mach

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

30

632340R1

SHIELD, inner feeder shaft

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 znd sq-nk crg

6шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

31

632341R1

SHIELD, outer feeder shaft, 303 or 615 combine

2шт.

31

632368R1

SHIELD, outer feeder shaft, 403 or 715 combine

2шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 znd sq-nk crg

8шт.

120376

NUT,5/16"-18, G5

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

32

632349R1

SHAFT, feed conveyor

1шт.

33

632345R91

DRUM ASSY, feed conveyor

1шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

34

462360R1

FLANGED BEARING

feeder drum brg

2шт.

35

455965R91

BALL BEARING,1.0005" ID x 52 mm OD x 15 mm

conveyor drum ball

2шт.

36

455102R11

COLLAR

W/SET SCREW, lkg

2шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4-20 x 1/4 hex soc cup

2шт.

37

632350R91

BRACKET ASSY, conveyor drum adj RH

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

4шт.

461189R2

BOLT, 7/16 x 3-3/4 hex-hd mach

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

7шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

607891R1

WASHER

15/32 x 1 x 16 ga C-Z

2шт.

38

632351R91

BRACKET ASSY, conveyor drum adj LH

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

4шт.

461189R2

BOLT, 7/16 x 3-3/4 hex-hd mach

1шт.

271501

SOCKET

NUT, 7/16 C-Z hex

7шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

607891R1

WASHER

15/32 x 1 x 16 ga C-Z

2шт.

39

H39274

SPACER,1/2" Pipe x 1 1/2"

conveyor drum bolt 1/2 std

2шт.

40

PO144

SPRING

conveyor drum adj bolt

2шт.

231-1448

NUT,1/2"-13, GB

1/2 znd nylon insert

2шт.

189315

BOLT,Hex, 1/2" - 13 x 6 1/2", Gr 5

SCREW, 1/2 x 6-1/2 hex-hd cap

2шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

8шт.

41

632342R91

CHAIN, roller feeder conveyor cpt w/slats, includes ref nos. 42, 43 and 44

1шт.

42

632344R1

SLAT, feeder conveyor chain

9шт.

104264

RIVET,FH, 5/16" x 5/8"

5/16 x 5/8 flat hd

36шт.

43

587371R93

DRAG LINK

LINK, connecting

1шт.

44

151884C91

LINK

feeder conveyor chain attaching

1шт.
