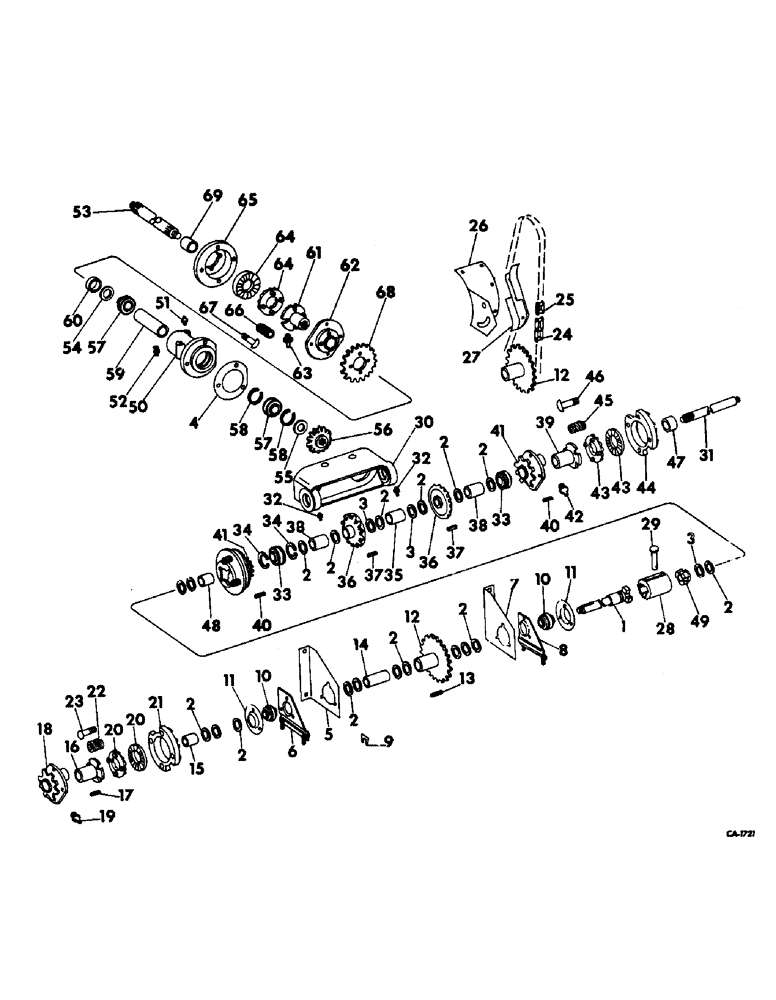

Запчасти Case IH 724 (K-10) - MAIN DRIVE (58) - ATTACHMENTS/HEADERS

1

156004C91

SHAFT ASSY, main drive

1шт.

163307C1

JAM NUT

3/4-16 C-Z slt jam

1шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

131050

WASHER,1 1/4"

1 1/4"

1шт.

21713R1

WASHER,25/32" x 1 3/4" x .120"

25/32 x 1-3/4 x 11 ga C-Z

1шт.

2

632156R1

THRUST WASHER

1-9/32 x 2 x 16 ga hard

1шт.

3

589782R1

THRUST WASHER

1-9/32 x 1-3/4 x 22 ga hard

1шт.

4

587067R1

SHIM, stalk roll drive gear .018

1шт.

4

936453R1

SHIM, stalk roll drive gear .010

1шт.

4

586604R1

SHIM, stalk roll drive gear .036

1шт.

5

632140R1

PLATE, main drive shaft bearing LH

1шт.

6

152898C91

FLANGE ASSY, main drive LH

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

7

632141R1

PLATE, main drive shaft bearing RH

1шт.

8

152899C91

FLANGE ASSY, main drive RH

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

9

936589R1

SHIM, main drive flange .036

1шт.

10

557994R91

BALL BEARING,1.2505" ID x 62 mm OD x 1.90625, 0.625"

ASSY, main drive shaft ball

2шт.

11

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

TTE, main drive shaft brg

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

3шт.

12

587811R1

SPROCKET ASSY.

SPROCKET, main drive driven 3/4 P28T

1шт.

13

151257C1

KEY, 5/16 x 1-3/4 sq parallel hardened

1шт.

14

632142R1

SPACER, main drive sprocket

1шт.

15

632147R1

SPACER

auger drive sprocket outer

1шт.

16

632144R1

HUB CAP

HUB, auger drive slip clutch

1шт.

17

577147R1

KEY

5/16 x 1-3/16 sq parallel hard

1шт.

18

632143R1

SPROCKET, auger drive

1шт.

19

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

20

B12170

RATCHET,Clutch Slip, 94.49mm

slip clutch

2шт.

21

632152R2

RETAINER

PLATE, slip clutch pressure

1шт.

22

28395H

SPRING

auger drive slip clutch

4шт.

23

587021R1

BOLT,Sq Nk, 7/16" - 14 x 3", Drilled

slip clutch spring dld

4шт.

425-127

SLOTTED NUT,7/16"-14, G5

NUT, 7/16 C-Z slt hex

4шт.

121224

SUPPORT

3/32" x 1"

4шт.

607891R1

WASHER

15/32 x 1 x 16 ga C-Z

4шт.

24

CHAIN, main drive roller, use 63 links of roller chain from a 10 ft roll marked 570027R91 and connecting link 587369R91

1шт.

25

587369R91

CHAIN LINK

LINK, spring connecting

1шт.

26

632132R91

PLATE ASSY, chain tightener

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 znd sq-nk crg

6шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

27

586291R1

TIGHTENER, main drive chain

1шт.

19041R1

BOLT,7/16"-14 x 1 1/4", G2, Full Thd

7/16 x 1-1/4 C-Z no. 3 plow

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 C-Z hex

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

607891R1

WASHER

15/32 x 1 x 16 ga C-Z

1шт.

28

575019R3

SLEEVE, snapping unit drive coupling

1шт.

29

576479R2

AXLE PIN

PIN, snapping unit coupling sleeve

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

30

632127R2

BRACKET, gear

1шт.

31

632137R2

SHAFT, gear

1шт.

163307C1

JAM NUT

3/4-16 C-Z slt jam

2шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

2шт.

131050

WASHER,1 1/4"

1 1/4"

1шт.

467750R1

WASHER

25/32 x 1-1/2 x 11 ga C-Z

2шт.

32

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 str lub

2шт.

33

156025C91

BEARING

ASSY, gear shaft relub ball

2шт.

34

360936R1

RING

SNAP RING, pinion shaft bearing

2шт.

35

632142R1

SPACER, gear

1шт.

36

586533R1

GEAR

snapping roll drive

2шт.

37

577147R1

KEY

5/16 x 1-3/16 sq-parallel hardened

2шт.

38

632136R1

SPACER, main drive shaft

2шт.

39

632144R1

HUB CAP

HUB, gatherer drive slip clutch

2шт.

40

577147R1

KEY

5/16 x 1-3/16 sq parallel hardened

2шт.

41

632130R1

SPROCKET, gatherer drive 14T 3/4P

2шт.

42

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

43

B12170

RATCHET,Clutch Slip, 94.49mm

slip clutch

4шт.

44

632152R2

RETAINER

PLATE, slip clutch pressure

2шт.

45

28395H

SPRING

gatherer drive slip clutch

8шт.

46

587021R1

BOLT,Sq Nk, 7/16" - 14 x 3", Drilled

slip clutch spring

8шт.

425-127

SLOTTED NUT,7/16"-14, G5

NUT, 7/16 C-Z slt hex

8шт.

121224

SUPPORT

3/32" x 1"

8шт.

607891R1

WASHER

15/32 x 1 x 16 ga C-Z

8шт.

47

634902R1

SPACER

gear shaft

1шт.

48

632195R1

SPACER, gear shaft coupling

1шт.

49

632151R1

COUPLING

gear shaft

1шт.

50

632153R3

HOUSING, stalk roll drive pinion

2шт.

18813R1

BOLT,Hex, 1/2" - 13 x 4", Gr 2

1/2 x 4 znd hex-hd mach

6шт.

271501

SOCKET

NUT, 7/16 C-Z hex

6шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

180145

BOLT,Hex, 7/16" - 14 x 1", Gr 5

SCREW, 7/16 x 1 znd hex-hd cap

6шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

51

126131

FITTING

1/4-28 str lub

2шт.

52

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING, 1/4-28 NS 45 deg lub

2шт.

53

632131R1

SHAFT, snapping roll drive bevel pinion

2шт.

163307C1

JAM NUT

3/4-16 C-Z slt jam

4шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

4шт.

178139

WASHER, 1-3/16 C-Z med lock

2шт.

21713R1

WASHER,25/32" x 1 3/4" x .120"

25/32 x 1-3/4 x 11 ga C-Z

4шт.

54

581074R1

WASHER, 1-7/32 x 1-3/4 x 11 ga hard

1шт.

55

585961R1

WASHER, 1-7/32 x 1-3/4 x 16 ga hard

1шт.

56

580842R1

GEAR

snapping roll drive bevel pinion

2шт.

57

156027C91

BEARING

ASSY, drive pinion relub ball

4шт.

58

641207R1

SNAP RING,2.44", Int, #244

Ring, Snap, , pinion shaft brg 2.44", Int, #244

4шт.

59

632158R1

SPACER, pinion shaft inner

2шт.

60

173387C1

SPACER, pinion shaft outer

2шт.

61

632129R1

BUSHING

HOLDER, 1 snapping roll drive ratchet

2шт.

62

632149R1

HUB CAP

HUB, snapping roll drive sprocket

2шт.

63

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

64

B12170

RATCHET,Clutch Slip, 94.49mm

slip clutch

4шт.

65

632152R2

RETAINER

PLATE, slip clutch pressure

2шт.

66

28395H

SPRING

slip clutch

8шт.

67

587021R1

BOLT,Sq Nk, 7/16" - 14 x 3", Drilled

slip clutch 7/16-14 x 3 dld

8шт.

425-127

SLOTTED NUT,7/16"-14, G5

NUT, 7/16 C-Z slt hex

8шт.

121224

SUPPORT

3/32" x 1"

8шт.

607891R1

WASHER

15/32 x 1 x 16 ga C-Z

8шт.

68

632161R1

PINION

SPROCKET, stalk roll drive 21T, standard 1037 RPM

2шт.

68

632128R1

PINION

SPROCKET, stalk roll drive 24T, parts accessories 1186 RPM

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 znd hex-hd cap

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

69

173388C1

SPACER, pinion shaft outer

2шт.
