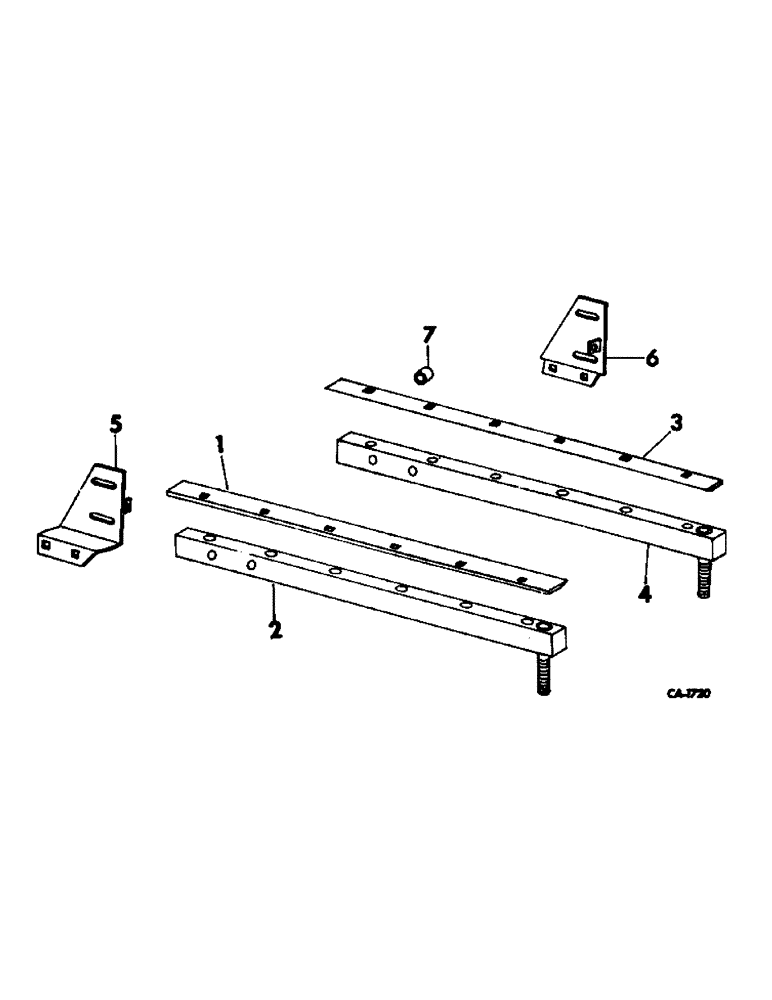

Запчасти Case IH 724 (K-09) - WEED KNIFE, OPTIONAL (58) - ATTACHMENTS/HEADERS

1

162974C1

KNIFE, weed rear

2шт.

18479R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 2

BOLT, 3/8 x 2 znd sq-nk crg

10шт.

18781R1

BOLT,Hex, 3/8"-16 x 2", G2

3/8 x 2 znd hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

12шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

12шт.

2

162970C91

TUBE ASSY, weed knife retainer

2шт.

219758

JAM NUT,Jam, 3/4"-10, G5

3/4 C-Z hex jam

2шт.

21626R1

LOCK NUT,3/4"-16

NUT, 3/4 znp nylon insert lock

2шт.

467750R1

WASHER

25/32 x 1-1/2 x 11 ga C-Z

4шт.

3

162974C1

KNIFE, weed rear

2шт.

18479R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 2

BOLT, 3/8 x 2 znd sq-nk crg

10шт.

18781R1

BOLT,Hex, 3/8"-16 x 2", G2

3/8 x 2 znd hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

12шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

12шт.

4

162970C91

TUBE ASSY, weed knife retainer

2шт.

219758

JAM NUT,Jam, 3/4"-10, G5

3/4 C-Z hex jam

2шт.

21626R1

LOCK NUT,3/4"-16

NUT, 3/4 znp nylon insert lock

2шт.

467750R1

WASHER

25/32 x 1-1/2 x 11 ga C-Z

4шт.

5

174010C1

SUPPORT ASSY, weed knife front LH

2шт.

18695R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2

BOLT, 7/16 x 1-1/4 znd sq-nk crg

4шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

NLS

NO LONGER SERVICED

NUT, 7/16 znd hex

4шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

2шт.

20248R1

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 8

SCREW, 3/8 x 2-1/4 znd hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

4шт.

6

174011C1

SUPPORT ASSY, weed knife front RH

2шт.

18695R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2

BOLT, 7/16 x 1-1/4 znd sq-nk crg

4шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

271501

SOCKET

NUT, 7/16 znd hex

4шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

2шт.

20248R1

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 8

SCREW, 3/8 x 2-1/4 C-Z hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

4шт.

7

NOT USED IN THIS APPLICATION

1шт.
