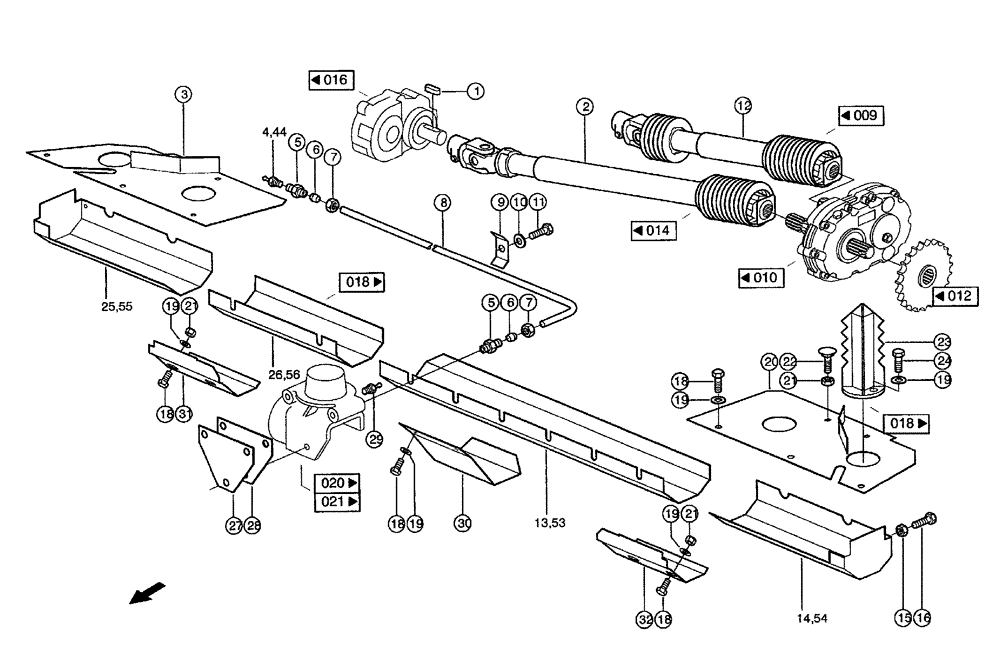

Запчасти Case IH 684 (0017[1]) - GUARD, DRIVE (MG6M) (58) - ATTACHMENTS/HEADERS

4

179838N0

FITTING

NIPPLE grease

13шт.

5

239156N0

FITTING

CONNECTOR male

32шт.

6

408614N0

OLIVE

32шт.

7

98-041302

TUBE NUT

connection

32шт.

8

941838N0

LINE

PIPE lubricating, 5 x 1 x 6000

14шт.

10

239387N0

WASHER

A8

2шт.

11

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

15

825-1408

NUT,M8, Cl 8

2шт.

16

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

17

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

6шт.

18

614-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

16шт.

19

239388N0

DISC

WASHER, A10

25шт.

21

825-1410

NUT,M10, Cl 8

4шт.

22

502511N0

SCREW

flat, round, head, M10 x 25

4шт.

24

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

4шт.

28

911873N0

LARGE PLATE

PLATE, LARGE BACKING, 0.75 mm

2шт.

29

244946N0

LUBE NIPPLE

8шт.

30

912456N0

SHEET

PLATE guard

1шт.

44

03640754

LUBE NIPPLE

grease, CM8 x 1, DIN71412

3шт.
