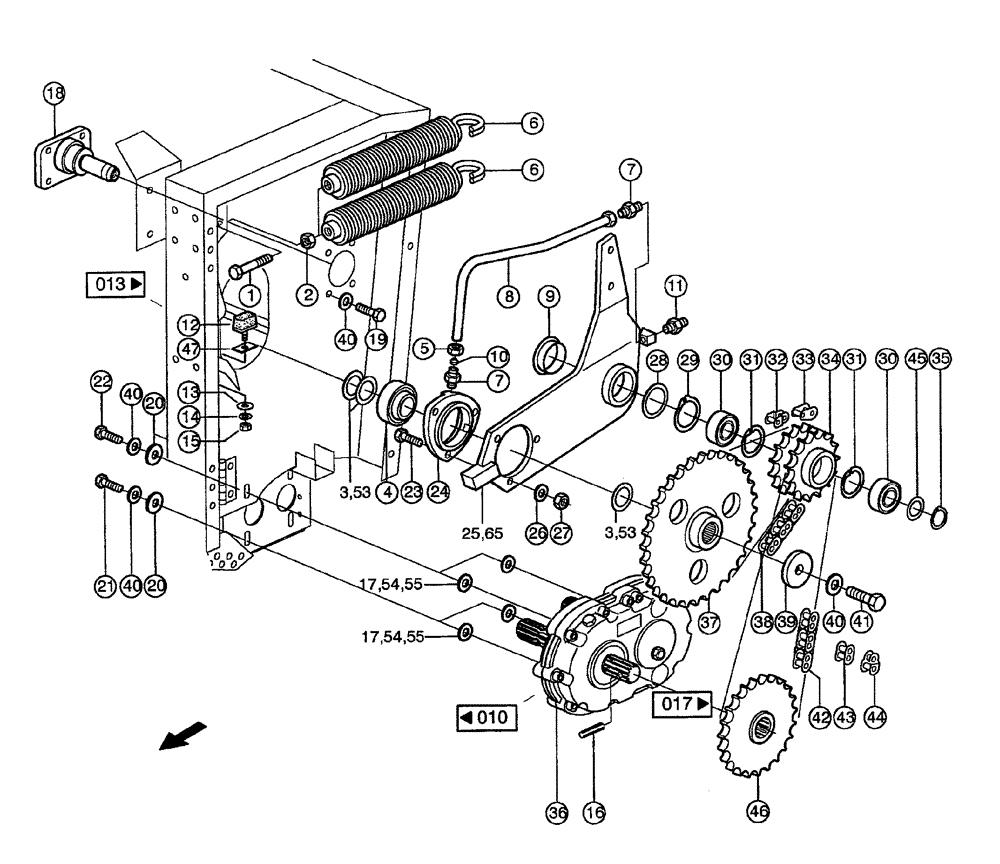

Запчасти Case IH 684 (0012[1]) - DRIVE, FEEDER AUGER (MG6M) (58) - ATTACHMENTS/HEADERS

1

614-12110

BOLT,Hex, M12 x 1.75 x 110mm, Cl 8.8, Full Thd

ISO4017

3шт.

2

825-1412

NUT,M12, Cl 8

Hex

3шт.

3

233626N1

DISC

SHIM, 40 x 55 x 1

1шт.

4

213648N0

BEARING, BALL

lock collar, GRAE, 40, NPPB

1шт.

5

98-041302

TUBE NUT

connection

2шт.

6

951199N0

SPRING

tension

2шт.

7

239156N0

FITTING

CONNECTOR male

2шт.

8

941838N0

LINE

PIPE lubricating, 5 x 1 x 6000

1шт.

9

008593N0

BUSHING

SLEEVE, 54.9 x 59.9 x 20, length = 340

1шт.

10

408614N0

OLIVE

2шт.

11

179838N0

FITTING

NIPPLE grease

1шт.

14

239387N0

WASHER

A8

2шт.

15

825-1408

NUT,M8, Cl 8

2шт.

16

237612N2

LOCK PIN

roll, 10 x 50B/DAC, 320B, DIN8752

1шт.

18

912987N0

JOURNAL

bearing

1шт.

19

239049N0

SCREW

BOLT hex, M12 x 30, MK/8.8-A3C, ISO4017

4шт.

20

234328N0

DISC

WASHER, 13 x 26 x 3

4шт.

21

614-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8, Full Thd

ISO 4017

2шт.

22

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

2шт.

23

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

3шт.

24

913088N0

HOUSING, BEARING

1шт.

26

239388N0

DISC

WASHER, A10

3шт.

27

825-1410

NUT,M10, Cl 8

3шт.

28

239370N0

DISC

SHIM, 55 x 68 x 1/ST2K, DIN988

2шт.

29

800-1155

RETAINER,55mm ID

RING snap, 55 x 2, DIN471, FST

1шт.

30

235830N0

BEARING, BALL

grooved, 6206-2RS

2шт.

31

800-2162

SNAP RING,M62, Int

x 2 DIN472 FST

2шт.

32

920300N5

LINK, CONNECTING

offset, 25.4 x 12.7 x 8.28, GEKR.

1шт.

35

800-1130

SNAP RING,M30, Ext

1шт.

38

211484N0

CHAIN (AG)

roller, 25.4, T 48E

1шт.

39

233031N0

DISC

WASHER, 13 x 62 x 6

1шт.

40

239389N0

WASHER

A12

9шт.

41

239160N0

SCREW

BOLT hex, M12 x 35, MK/8.8-A3C, ISO4017

1шт.

44

920300N5

LINK, CONNECTING

offset, 25.4 x 12.7 x 8.28, GEKR.

1шт.

45

97022172

SHIM

30 x 42 x 1.O, DIN988, ST

1шт.

46

990479N0

PINION

1шт.

47

991106N0

PLATE

3 x 30 x 50

1шт.

53

233627N1

DISC

SHIM, 40 x 55 x 2

1шт.
