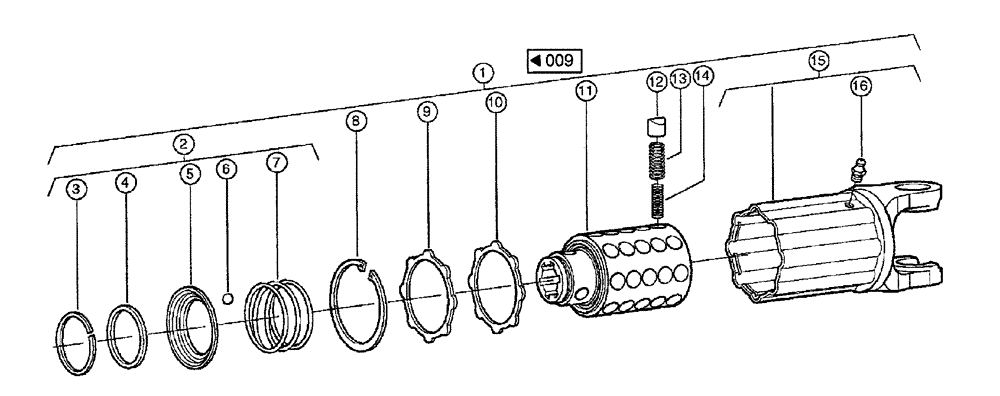

Запчасти Case IH 684 (0011[1]) - STAR RATCHET (MG6M) (58) - ATTACHMENTS/HEADERS

3

239343N0

RING ASSY.

snap, SP42, DIN5417

1шт.

4

920067N0

RING ASSY.

angle

1шт.

6

211-1016

BALL,12.7mm OD, Gr 24

Steel (12.7 mm), DIN5401, III

3шт.

7

920678N0

COMPRESSION SPRING

1шт.

8

972502N0

CIRCLIP

RING snap

1шт.

9

920679N0

THRUST RING

WASHER pressure

1шт.

10

920913N0

SEAL

1шт.

12

972476N1

CAM

40шт.

13

972508N0

COMPRESSION SPRING

40шт.

14

972509N0

SPRING

inner

40шт.

16

179838N0

FITTING

NIPPLE grease

1шт.
