(0010[1]) - MAIN GEARBOX (MG6M)

Запчасти Case IH 684 (0010[1]) - MAIN GEARBOX (MG6M) (58) - ATTACHMENTS/HEADERS

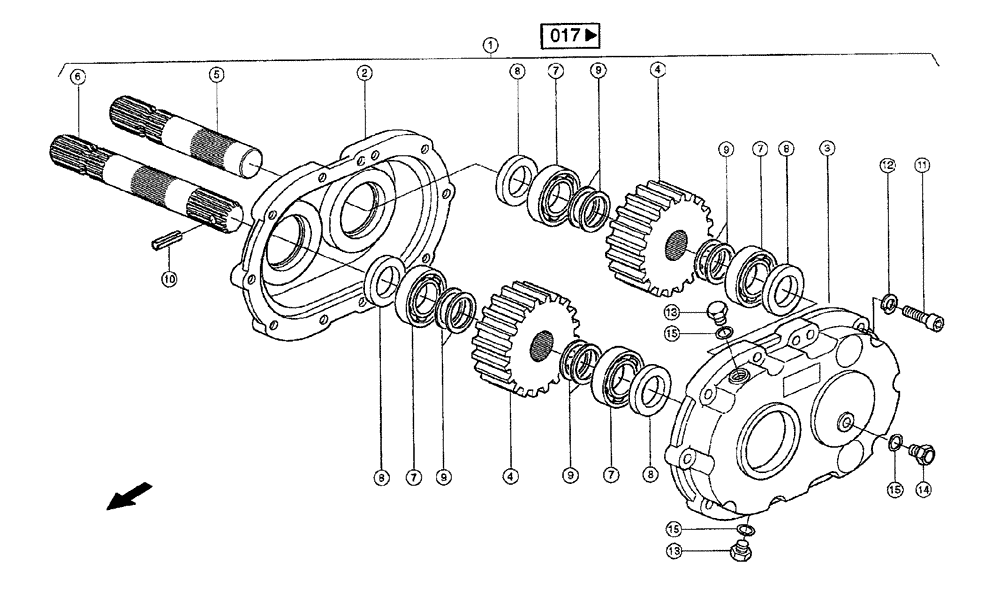

Схема запчастей Case IH 684 - (0010[1]) - MAIN GEARBOX (MG6M) (58) - ATTACHMENTS/HEADERS
12
11
9
4
8
3
15
9
6
8
8
9
7
4
5
7
15
2
7
10
13
14
8
9
7
13
15
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

8

01118715

SEAL

shaft, AS35 x 72 x 10, DIN3760, NBR

3шт.

9

234385N0

BACK-UP RING

WASHER thrust, S35 x 45, DIN988, 440-550HV10

8шт.

11

962-10040

HEX SOC SCREW,M10 x 40mm, Cl 10.9

Cheese-head, DIN 912

10шт.

12

242763N1

WASHER

locking, VSKZ10

10шт.

13

06103327

VANEUM GAUGE

SCREW locking, AM16 x 1.5, DIN7604, ST

2шт.

14

935682N0

PLUG

GUAGE oil level, M16 x 1.5

1шт.

15

235786N0

SEAL ASSY.

A16 x 22 x 1.5, DIN7603, CU

2шт.

Выбрано товаров: 7
